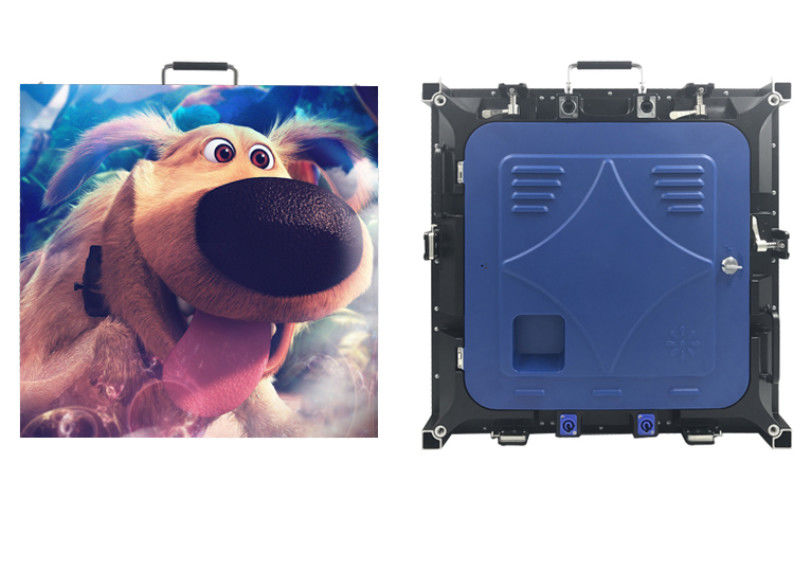

Flexible Led Video Wall Curtain Seamless P4.81 Indoor 43264 Dots / M² Pixel Density
Product Details:
| Place of Origin: | China |
| Brand Name: | TOPLED |
| Certification: | CE ROSH FCC |
| Model Number: | P1.25-P10 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Woden case/Carton box/Flight case |
| Delivery Time: | 10-25 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 per month |
|
Detail Information |
|||
| Pixel Pitch(mm): | P1.25-P10 Available | LED Configuration: | 1R1G1B |
|---|---|---|---|
| Module Size(mm): | Customize | Module Resolution: | Customize Pixel |
| Grey Scale: | 14-16bit | Refresh Rate(HZ): | 1920/2880/3840HZ |
| Panel Resolution: | Customize | Panel Power Consumption(W): | 200-750W |
| Highlight: | flexible led display,led wall panels |
||
Product Description
Flexible Led Video Wall Curtain Seamless P4.81 Indoor 43264 Dots / M² Pixel Density
| Product | P4.81 Indoor Led Screen Rental | |
| Module size | 250*250mm | |
| Pixel density | 43264dots/m² | |
| LED lamp | SMD2121 | |
| Module resolution | 52*52 | |
| Module consumption | 45W/pcs | |
| Viewing distance | 5-35m | |
| Max power consumption | 750W/m² | |
| Standard cabinet size | 500*500mm | |
| Drive mode | 1/13scan | |
| Brightness | ≥800cd/m² | |
| HUB mode | HUB75 | |
| Drive IC | FM5020 | |
| Frame frequency | ≧60Hz/s | |
| Refresh rate | ≧960Hz/s | |
| MTTF | >5000 hours | |
| Life time | >100,000 hours | |
| Defect rate | <0.0001 | |
| Video signal input | RF, S-video, RGB, RGBHV, YUV, YC, composition | |
| Temperature range | Storage | -20 to 65°C |
| Working | -20 to 50°C | |
| Gray scale/color | 4096 grades for R ,G and B | |
| Display | ≥16.7M colors | |
| Working voltage | 110/220V AC | |
| Viewing angle | Horizontal | 140º |
| Vertical | 140º | |
| Display content | videos, pictures and graphics | |
| Operating humidity | 10-90% | |
| Storage humidity | 10-90% | |
| Continue working time | 24 hours | |
| Control mode | synchronization/asynchronization | |
| Warranty | 1 year | |
| Module weight | 0.45KG/PCS | |
| Delivery time | 7-15 days | |
Lead Time:Delivery in 10-25 working days.
