P4.8 Led Advertising Board Display , Digital Advertising Display Screens High Definition
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | Lecede |
| Certification: | CE ROHS FCC UL ETL |
| Model Number: | Q5 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case packing, flight case packing , honeycomb case |
| Delivery Time: | 15~30 days after deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 ㎡/month |
|
Detail Information |
|||
| Product Name: | Lecede P4.8 Advertising LED Display Screen | Pixel Pitch: | 4.8MM |
|---|---|---|---|
| Usage: | Outdoor | Pixel: | 43402 Dots/㎡ |
| Module Size(W*H): | 192x 192 Mm | LED Lamp: | SMD 1921 |
| Brightness: | 6300 Nits | Refresh Rate: | ≥1920 Hz |
| Highlight: | digital advertising display screens,outdoor advertising led display |
||
Product Description

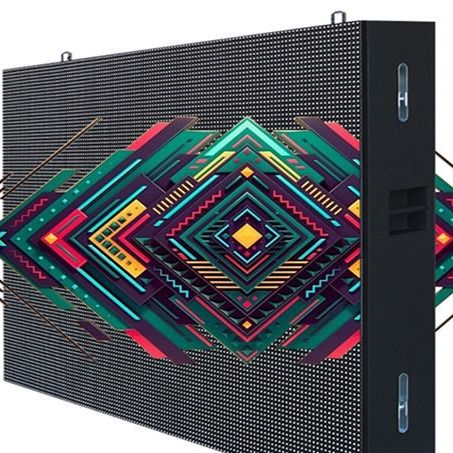

P4.8 Advertising LED Display Screen, Outdoor High Definition Led Billboard
Product Features
1. HD display, delicate picture.
2. The first class LED chip from Taiwan Epistar, with pure golden wire connection in LED lamps.
3. Support pixel-pixel calibration
4. Grand A row material for module frame and mask. Modular design, easy maintenance
SPECIFICATION OF Q4.8 Outdoor Advertising LED Display Screen
| Model | Q4.8 |
| Pixel pitch(mm) | 4.8 |
| Configuration | SMD 1921 |
| Module dimension(mm) | 192x192 |
| Module weight(kg) | 0.5 |
| Cabinet dimension(mm) | 768x768x120 |
| Pixel density(dots/㎡) | 43402 |
| Flatness error(mm) | ≤0.1 |
| Viewing angle | 140°/140°(Horizontal/Vertical) |
| Brightness(cd/㎡) | 6300 |
| Color temperature(K) | 5000~9500 (Adjustable) |
| Contrast | 4000:1 |
| Repetition frequency | 50/60Hz |
| Refresh frequency(Hz) | 1920 |
| Gray scale | 65536 |
| Ave. power(W/㎡) | 500 |
| Max power(W/㎡) | 950 |
| Working temp./humidity | -10~40℃/10%~80%RH |
| Storing temp./humidity | -20~60℃/10%~85%RH |
| Cabinet material | Iron/Aluminum |
| Maintenance | Rear |
| Protection | IP65/IP65 |
| Driving mode | Constant current driver |
| Scanning | 1/10 |
| Power requirements | AC90~264V, 47~63Hz |
| Life time(hrs) | 100,000 |

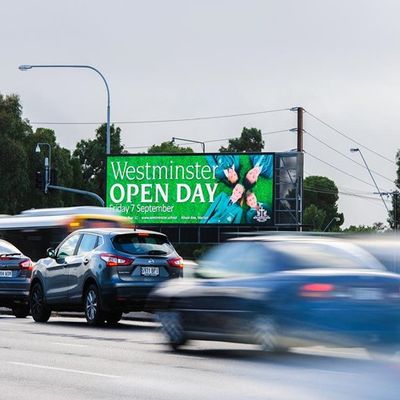

Benefits of Q4.8 Outdoor Advertising LED Display Screen
Q4.8 outdoor advertising LED display screen has many benefits. First of all, the image of our
Q4.8 outdoor LED screens is extremely clear and furthermore the vivid colours ensure that your adverts
pop out and come to life! Another benefit is that the content can be easily adjusted to any situation with
our user-friendly software. Reliable in practically all weather conditions, from polar cold to desert heat.
