P3 SMD Digital Advertising Display Screens 900 Nits Brightness For Fixed Installation
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | Lecede |
| Certification: | CE ROHS FCC UL ETL |
| Model Number: | X3 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case packing, flight case packing , honeycomb case |
| Delivery Time: | 15~30 days after deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 ㎡/month |
|
Detail Information |
|||
| Product Name: | Lecede P3 Indoor Advertising LED Display Screen | Pixel Pitch: | 3MM |
|---|---|---|---|
| Usage: | Indoor | Pixel: | 111111 Dots/㎡ |
| Module Size(W*H): | 192x 192 Mm | LED Lamp: | SMD 2121 |
| Brightness: | 900 Nits | Refresh Rate: | ≥1920 Hz |
| Highlight: | digital advertising display screens,outdoor advertising led display |
||
Product Description

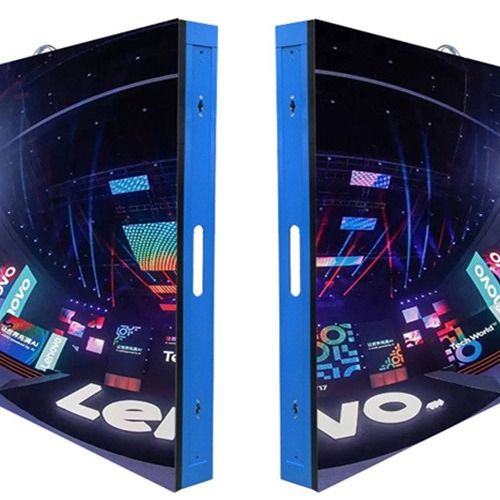

P3 Indoor Advertising LED Display Screen For Fixed Installation
Product Features
1. High brightness and definition, environment friendly,
2. No emissions, radiations, noise or chemical effluent.
3. High refresh rate and color contrast ratio.
SPECIFICATION OF X3 Indoor Advertising LED Display Screen
| Model | X3 |
| Pixel pitch(mm) | 3 |
| Configuration | SMD 2121 |
| Module dimension(mm) | 192x192 |
| Module weight(kg) | 0.3 |
| Cabinet dimension(mm) | 576x576x75 |
| Pixel density(dots/㎡) | 111111 |
| Flatness error(mm) | ≤0.1 |
| Viewing angle | 140°/140°(Horizontal/Vertical) |
| Brightness(cd/㎡) | 900 |
| Color temperature(K) | 5000~9500 (Adjustable) |
| Contrast | 4500:1 |
| Repetition frequency | 50/60Hz |
| Refresh frequency(Hz) | ≥1920 |
| Gray scale | 65536 |
| Ave. power(W/㎡) | 300 |
| Max power(W/㎡) | 550 |
| Working temp./humidity | -10~40℃/10%~80%RH |
| Storing temp./humidity | -20~60℃/10%~85%RH |
| Cabinet material | Iron/Aluminum |
| Maintenance | Front/Rear maintenance |
| Protection | IP40/IP43 |
| Driving mode | Constant current driver |
| Scanning | 1/32 |
| Power requirements | AC90~264V, 47~63Hz |
| Life time(hrs) | 100,000 |
Advantages Of X3 Indoor Advertising LED Display Screen
1. can play clear and non-flickering video image in video camera to realize live broadcast of
different kinds of programs.
2. can display a variety of computer information, graphs, two-dimensional animation and
three-dimensional animation and etc, have abundant display methods, display moving messages, notices
and slogans and etc, and have large capacity to store data and information
3. uses high quality LED chip and high anti-static electricity capacity.
4. large viewing angle and smooth displaying of Lecede X3 provide excellent visual effect from every
angle.
