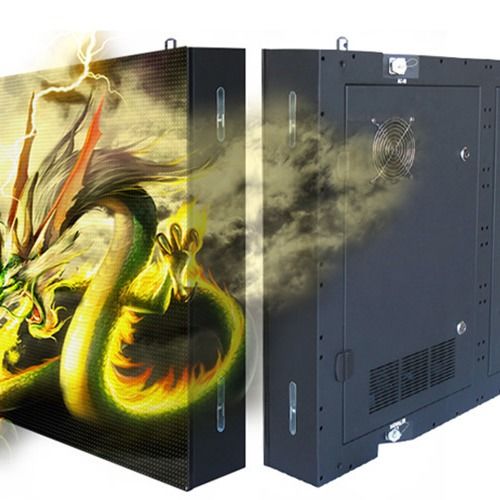

P5 Advertising LED Display Screen 5mm Pixel Pitch 160x160 mm Module Size
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | Lecede |
| Certification: | CE ROHS FCC UL ETL |
| Model Number: | Q5 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case packing, flight case packing , honeycomb case |
| Delivery Time: | 15~30 days after deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 ㎡/month |
|
Detail Information |
|||
| Product Name: | Lecede P5 Advertising LED Display Screen | Pixel Pitch: | 5MM |
|---|---|---|---|
| Usage: | Outdoor | Pixel: | 40000 Dots/㎡ |
| Module Size(W*H): | 160x 160 Mm | LED Lamp: | SMD 2727 |
| Brightness: | 6500 Nits | Refresh Rate: | ≥1920 Hz |
| Highlight: | digital advertising display screens,outdoor advertising led display |
||
Product Description
P5 Advertising LED Display Screen, Outdoor Energy Saving Led Billboard
Product Features
1. HD display, delicate image.
2. The first level LED chip from Taiwan Epistar, with pure golden wire connection in LED
3. Support dot-dot calibration
4. Grand A row material for module frame and mask. Modular design, easy maintenance
5. Support multimedia display
SPECIFICATION OF Q5 Outdoor Advertising LED Display Screen
| Model | Q5 |
| Pixel pitch(mm) | 5 |
| Configuration | SMD 2727 |
| Module dimension(mm) | 160x160 |
| Module weight(kg) | 0.3 |
| Cabinet dimension(mm) | 640x640x120 |
| Pixel density(dots/㎡) | 40000 |
| Flatness error(mm) | ≤0.1 |
| Viewing angle | 140°/140°(Horizontal/Vertical) |
| Brightness(cd/㎡) | 6500 |
| Color temperature(K) | 5000~9500 (Adjustable) |
| Contrast | 4000:1 |
| Repetition frequency | 50/60Hz |
| Refresh frequency(Hz) | 1920 |
| Gray scale | 65536 |
| Ave. power(W/㎡) | 400 |
| Max power(W/㎡) | 750 |
| Working temp./humidity | -10~40℃/10%~80%RH |
| Storing temp./humidity | -20~60℃/10%~85%RH |
| Cabinet material | Iron/Aluminum |
| Maintenance | Rear |
| Protection | IP65/IP65 |
| Driving mode | Constant current driver |
| Scanning | 1/8 |
| Power requirements | AC90~264V, 47~63Hz |
| Life time(hrs) | 100,000 |
Benefits of Q5 Outdoor Advertising LED Display Screen
Q5 outdoor advertising LED display screen has many benefits. First of all, the image of our Q5
outdoor LED screens is extremely clear and furthermore the vivid colours ensure that your adverts pop
out and come to life! Another benefit is that the content can be easily adjusted to any situation with
our user-friendly software. Reliable in practically all weather conditions, from polar cold to desert heat.
