10mm Pixel Pitch Advertising LED Display P10 SMD High Brightness CE Approved
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | Lecede |
| Certification: | CE ROHS FCC UL ETL |
| Model Number: | Q10 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case packing, flight case packing , honeycomb case |
| Delivery Time: | 15~30 days after deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 ㎡/month |
|
Detail Information |
|||
| Product Name: | Lecede P10 Advertising LED Display Screen | Pixel Pitch: | 10MM |
|---|---|---|---|
| Usage: | Outdoor | Pixel: | 10000 Dots/㎡ |
| Module Size(W*H): | 320x 160 Mm | LED Lamp: | SMD 3535 |
| Refresh Rate: | ≥1920 Hz | Brightness: | 7000 Nits |
| Highlight: | digital advertising display screens,outdoor advertising led display |
||
Product Description

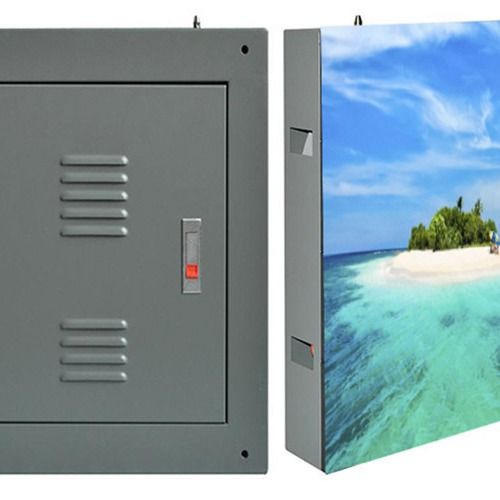

Outdoor Advertising LED Display Screen P10 SMD High Brightness
Product Features
1. The first level LED chip from Taiwan Epistar
2. With pure golden wire connection in LED
3. Ag alloy solder paster to ensure good soldering on PCB
4. Stainless steel screws when assembly
SPECIFICATION OF Q10 Outdoor Advertising LED Display Screen
| Model | Q10 |
| Pixel pitch(mm) | 10 |
| Configuration | SMD3535 |
| Module dimension(mm) | 320x160 |
| Module weight(kg) | 0.5 |
| Cabinet dimension(mm) | 960x960x120 |
| Pixel density(dots/㎡) | 10000 |
| Flatness error(mm) | ≤0.1 |
| Viewing angle | 140°/140°(Horizontal/Vertical) |
| Brightness(cd/㎡) | 7000 |
| Color temperature(K) | 5000~9500 (Adjustable) |
| Contrast | 4000:1 |
| Repetition frequency | 50/60Hz |
| Refresh frequency(Hz) | 1920 |
| Gray scale | 65536 |
| Ave. power(W/㎡) | 430 |
| Max power(W/㎡) | 850 |
| Working temp./humidity | -10~40℃/10%~80%RH |
| Storing temp./humidity | -20~60℃/10%~85%RH |
| Cabinet material | Iron/Aluminum |
| Maintenance | Rear |
| Protection | IP65/IP65 |
| Driving mode | Constant current driver |
| Scanning | 1/2 |
| Power requirements | AC90~264V, 47~63Hz |
| Life time(hrs) | 100,000 |
| Certificate | CE ROHS FCC UL ETL, etc. |
