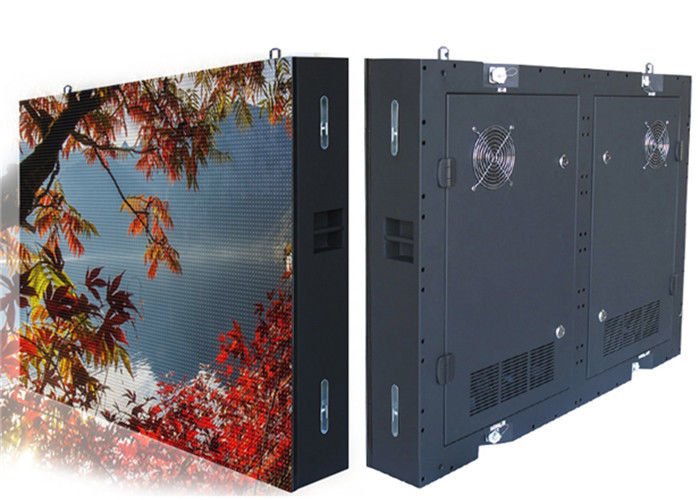

P6 Outdoor Digital Advertising LED Display 6mm Pixel Pitch For Shopping Malls
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | Lecede |
| Certification: | CE ROHS FCC UL ETL |
| Model Number: | Q6 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case packing, flight case packing , honeycomb case |
| Delivery Time: | 15~30 days after deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 ㎡/month |
|
Detail Information |
|||
| Product Name: | Lecede P6 Advertising LED Display Screen | Pixel Pitch: | 6MM |
|---|---|---|---|
| Usage: | Outdoor | Pixel: | 27777 Dots/㎡ |
| Module Size(W*H): | 192x 192 Mm | LED Lamp: | SMD 2727 |
| Brightness: | 6500 Nits | Refresh Rate: | ≥1920 Hz |
| Highlight: | digital advertising display screens,led advertising panel |
||
Product Description

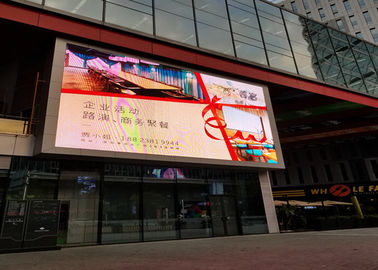

P6 Advertising LED Display Screen Outdoor For Shopping Malls
Product Features
1. HD display, delicate image
2. High resolution, adjustable brightness
3. Support dot-dot calibration
4. Modular design, easy maintenance
5. Support multimedia display
SPECIFICATION OF Q6 Outdoor Advertising LED Display Screen
| Model | Q6 |
| Pixel pitch(mm) | 6 |
| Configuration | SMD 2727 |
| Module dimension(mm) | 192x192 |
| Module weight(kg) | 0.3 |
| Cabinet dimension(mm) | 768x768x120 |
| Pixel density(dots/㎡) | 27777 |
| Flatness error(mm) | ≤0.1 |
| Viewing angle | 140°/140°(Horizontal/Vertical) |
| Brightness(cd/㎡) | 6500 |
| Color temperature(K) | 5000~9500 (Adjustable) |
| Contrast | 4000:1 |
| Repetition frequency | 50/60Hz |
| Refresh frequency(Hz) | 1920 |
| Gray scale | 65536 |
| Ave. power(W/㎡) | 390 |
| Max power(W/㎡) | 780 |
| Working temp./humidity | -10~40℃/10%~80%RH |
| Storing temp./humidity | -20~60℃/10%~85%RH |
| Cabinet material | Iron/Aluminum |
| Maintenance | Rear |
| Protection | IP65/IP65 |
| Driving mode | Constant current driver |
| Scanning | 1/4 |
| Power requirements | AC90~264V, 47~63Hz |
| Life time(hrs) | 100,000 |
Benefits of Outdoor Advertising LED Display Screen
Q6 outdoor advertising LED display screen has many benefits. First of all, the image of our Q6
outdoor LED screens is extremely clear and furthermore the vivid colours ensure that your adverts pop
out and come to life! Another benefit is that the content can be easily adjusted to any situation with
our user-friendly software. Reliable in practically all weather conditions, from polar cold to desert heat.
