SMD2121 Lamp P3 Advertisement LED Display 111111 Dots/Sqm Pixel 1100 Cd/㎡ Brightness
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | Lecede |
| Certification: | CE ROHS FCC UL ETL |
| Model Number: | X-3 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case packing, flight case packing , honeycomb case |
| Delivery Time: | 15~30 days after deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 ㎡/month |
|
Detail Information |
|||
| Product Name: | SMD2121 Lamp P3 Advertisement LED Display , Giant Interior Video Wall | Pixel Pitch (MM): | 3 |
|---|---|---|---|
| Usage: | Indoor Advertising LED SCREEN | Pixel: | 111111 Dots/sqm |
| Module Size(W*H): | 192mmx 192 Mm | LED Lamp: | SMD 2121 Lamp |
| Brightness: | 1100 Cd/㎡ | Refresh Rate: | ≥1920Hz |
| Highlight: | digital advertising display screens,led advertising panel |
||
Product Description

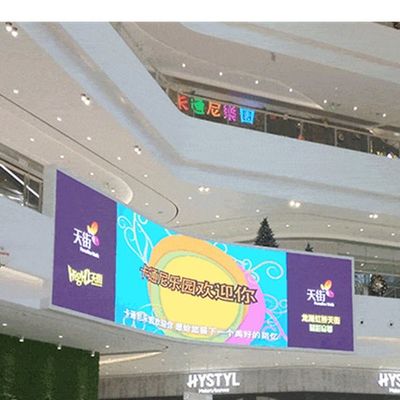

SMD2121 Lamp P3 Advertising LED Display Screen, Large Indoor Video Wall
youtube
youtube
noyoutube
noyoutube
Product Features
1. High brightness and resolution, environment friendly,
2. Full entirely technicial assistance and long term after-sales service
3. Power saving IC and particular design of circuit diagram
4. Modules were made by high-precision molding plastic injection, no slit on the display
SPECIFICATION OF X3 Indoor Advertisement LED Display
| Model | X-3 |
| Pitch(mm) | 3mm |
| LED configuration | SMD 2121 lamp |
| Module size(mm) | 192x192mm |
| Module weight(kg) | 0.2kg |
| Cabinet size(mm) | 576x576x75mm |
| Pixel density(dots/㎡) | 111111 dots/sqm |
| Cabinet flatness (mm) | ≤0.2 mm |
| Visual angle | 160°/160°(Horizontal/Vertical) |
| Brightness(nits) | 1100 |
| Color temperature(K) | 3200~9300 (Can be adjusted) |
| Contrast ratio | 5600:1 |
| Frame frequency | 50/60Hz |
| Refresh rate(Hz) | ≥1920 Hz |
| Gray scale (bit) | 16bit |
| Ave. power consumption (W/㎡) | 300 W/㎡ |
| Max power consumption (W/㎡) | 570 W/㎡ |
| Working temp./humidity | -10~40℃/10%~80%RH |
| Storing temp./humidity | -20~60℃/10%~85%RH |
| Cabinet material | Iron or Aluminum |
| Maintenance | Front and Rear maintenance |
| IP grade | IP40/IP43 |
| Driving mode | Constant current driving |
| Scanning | 32 S |
| Power requirements | AC90~264V, 47~63Hz |
| Life time(hrs) | 100,000 hours |
Advantages Of X3 Indoor Advertising LED Display
1. can show clear and non-flickering video image in video camera to realize live broadcast of
different types of programs.
2. Network function: with the network interface, it can be connected with the Internet to
display information on the Internet at the same time and realize network controlling
3. The integration of light and driver IC together with the multi-circuit configuration, makes Lecede X3
achieve equally-distributed current, less power consumption, and quick heat dissipation
4. Super-high brightness, lower attenuation, higher reliability and weather ability
