SMD 3528 Transparent Glass LED Screen For Glass Wall Advertising Building
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | LECEDE |
| Certification: | CE ROHS FCC UL ETL |
| Model Number: | G3.91-7.8125 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case packing, flight case packing , honeycomb case |
| Delivery Time: | 15~30 days after deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 ㎡/month |
|
Detail Information |
|||
| Pixel Pitch: | 10.14mm | LED Lights: | SMD 3528 |
|---|---|---|---|
| Pixel Resolution: | 9216pixel/㎡ | Pixel Composing: | 1R1G1B |
| Cabinet Dimension(W*H): | 1000mm*1000mm | Brightness: | 4000 Nits |
| Gray Level: | 14bit | Life Span: | 100000 Hours |
| Highlight: | transparent led wall,transparent led panel |
||
Product Description

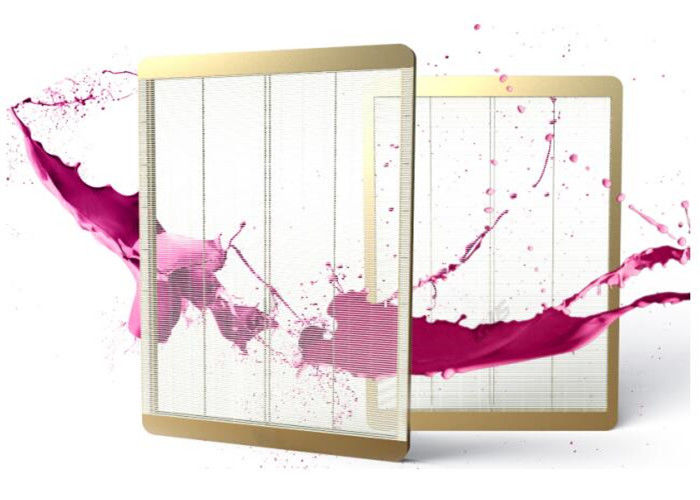

High Brightness Transparent Glass LED Display for Glass Wall Advertising Building
Introduction:
1. Unparalleled Transparency
Greater than >80% transparency at highest resolution, noticeable when viewing from five meters or more.
2. Easy Setup
Plug and play. Super quick and easy for installation.
3. Light Weight
Only weighted 18kg/pcs (including hanging strings and power supplies). It weights half of most LED displays.
Features:
| Pixel Pitch(mm) | 5 x 8 | 7.5x 8 | 10 |
| LED Model | SMD3528 | SMD3528 | SMD3528 |
| Brightness(nit) | 6000 | 6000 | 6000 |
| Transparency | 68% | 68% | 75% |
| Display Size(mm) | 960x1280 | 960x1280 | 960x1280 |
| Display Resolution | 192x160 | 128x160 | 96x128 |
| Resolution(dot/㎡) | 25000 | 16666 | 10000 |
| Max. Power(W/㎡) | 860 | 820 | 880 |
| Avg. Power(W/㎡) | 258 | 246 | 264 |
| Ingress Protection | IP20 | IP20 | IP20 |
| Refresh Rate(Hz) | 1000-1500 | 1000-1500 | 1000-1500 |
| Weight(kg/㎡) | 18kg/pcs | 18kg/pcs | 18kg/pcs |
| Working Temp | -10~40℃ | -10~40℃ | -10~40℃ |
Module design diversity secures compatibility , currently include: 320*320mm , 320*200mm , 240*320mm , 240*200mm
Ultra-thin with 6.5cm thickness and ultra-light design with 23 kg/sqm weight.
High refresh rate , 16 bit grayscale, 2000HZ ,Transparency 90%. Glass display is become the best in wall curtain serials
3 Highs: 16 bit high gral scale, max.2000 HZ high refresh rate and 90% high led coefficient.
Light ,thin, transparent, convenient maintenance, long lifetime and large scale application.
Neat cable slot design for invisible side cables and structure supporting.
Easy and convenient installation, no destruction to existing building structure.
Wide application, can be used for bank, supermarket, theater, business street, hotel, public civic buildings, and landmark buildings, etc. for large square usage.
| Pixel Pitch | 10.416 mm | 10.416mm | 12.5 mm | 12.5 mm |
| Pixel Density | 9216 pixels/m² | 9216 pixels/m² | 6400 pixels/m² | 6400 pixels/m² |
| Brightness | 900-1200 nit | 3200-3600 nit | 800-1000 nit | 3500-3800 nit |
| Weight / Module | 10 KG | 10 KG | 10 KG | 10 KG |
| View Distance | 10 m | 10 m | 12 m | 12 m |
| Max power consumption | 300 w/m² | 300 w/m² | 300 w/m² | 300w/m² |
| Ave power consumption | 120 w/m² | 120 w/m² | 120 w/m² | 120 w/m² |
| Refresh rate | >=960 Hz | >= 960 Hz | >=960 Hz | >=960 Hz |
| Cabinet size | 1000x500x54mm/ 500*500*54mm | 500x1000mm | 500x1000mm | |
| Led type | SMD 3528 RGB 3in1 | SMD 3535 | ||
| Gray Scale | 14bit | |||
| Color type | 68 Billion | |||
| IP Rating | IP30 | |||
| Viewing Angle | 140°/140° | |||
| Brightness Control | 0-100% 16 level | |||
