P15.6 Transparent LED Display High Definition Resolution 14 Bit Easy To Move
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | LECEDE |
| Certification: | CE ROHS FCC UL ETL |
| Model Number: | G15.6 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case packing, flight case packing , honeycomb case |
| Delivery Time: | 15~30 days after deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 ㎡/month |
|
Detail Information |
|||
| Pixel Pitch: | 15.6 Mm | LED Lights: | SMD 3512 |
|---|---|---|---|
| Pixel Resolution: | 4096pixelsqm | Pixel Composing: | 1 R 1 G 1 B |
| Cabinet Dimension(W*H): | 1000mm*1000mm | Brightness: | 4500nits/sqm |
| Gray Level: | 14bit | Life Span: | 100000 Hours |
| Highlight: | transparent led wall,transparent led panel |
||
Product Description

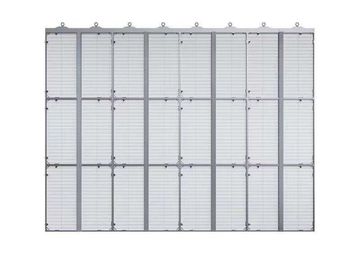

Side luminous display screen SMD3512 P15.6 Transparent Glass LED Screen For supermarket ,office building
Product features
1. light weight, ultra-thin: 35mm, weight 15Kg, portable and portable, easy to move.
2. Advanced equipment: connect to PC or Android devices through RJ45, WiFi, 3G, USB and HDMI.
3. Wide use: suitable for shopping malls, cinemas, bars, banks, luxury shops, airports, exhibition halls, conference rooms, hospitals, squares, lobbies and other places.
4.Wide view: horizontal and vertical 145 degrees / 145 degrees.
Product parameter
| Model No. | G 15.62 |
| LED Light | SMD 3512 |
| Pixel Pitch | 15.6 mm |
| Pixel | 4096 dots/sqm |
| Module Dimension(W*H) | 1000mm*1000 mm |
| Scan Mode | staic |
| Pixel Composing | RGB |
| Cabinet Material | Die-cast aluminum |
| Cabinet Dimension(W*H) | 1000mm *1000 mm |
| Cabinet Weight | 6.6kg |
| Viewing Angle | H:145° V:145° |
| Average Power Consumption | 300 W/sqm |
| Refresh Rate | ≥1920Hz |
| Brightness | 4000~4500nits |
| Ingress Protection (Front/Rear) | IP43 |
| Operating Temperature | -20°C~60°C |
| Operating Humidity | 10%~65%RH |
| Input Voltage | AC220V/110V±15% |
| Life Time | 100000 hours |
Advantages
1. Side lighting technology
2. High transparency
3. Mulyiple patents
4. Transparent TV screen
5. Large display tiles
6. Small pitch
7. Curved surfaces & irreular shapes
Applications

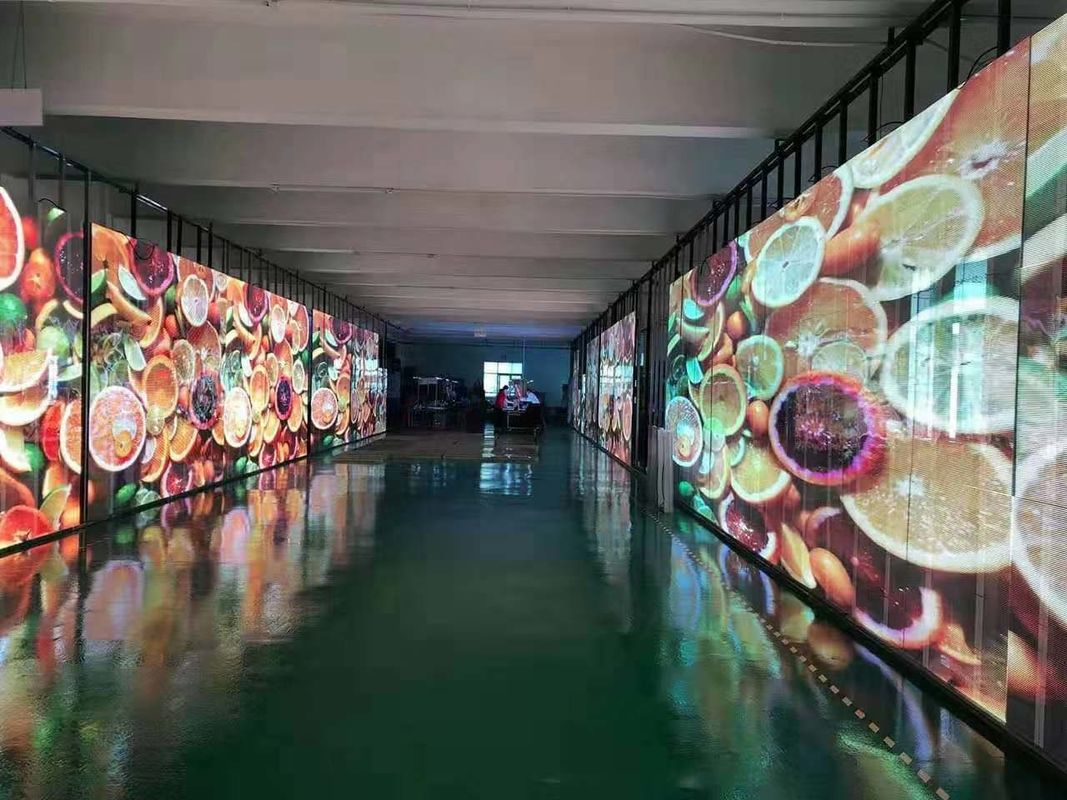

G15.6 Full Color Glass Transparent LED Display Screen High brightness is up to 4000nits The transparent series is a high definition and high resolution perspective screen with good video quality. Die-casting aluminum cabinet, with high strength, high density, high definition, extremely thin, ultra-light weight, easy installation and other characteristics, is very suitable for rental use. It can be directly pasted on glass walls to display advertisements and architectural decorations.
