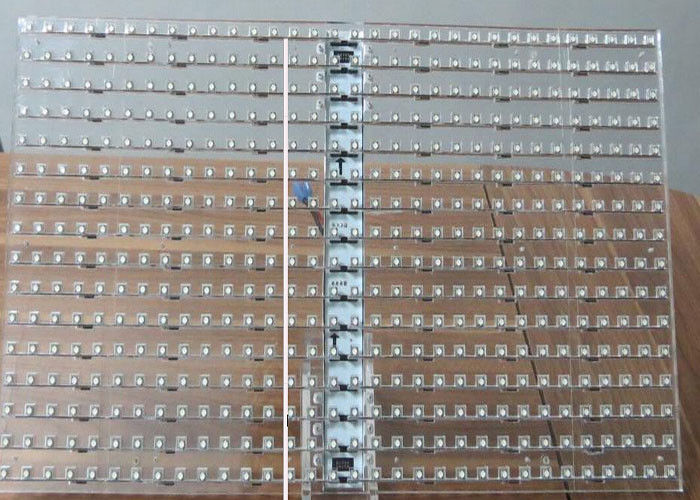

Potable Transparent Video Screen P3.91 14 Bit Gray Level For Mobile Performance
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | LECEDE |
| Certification: | CE ROHS FCC UL ETL |
| Model Number: | G3.91-8.125 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case packing, flight case packing , honeycomb case |
| Delivery Time: | 15~30 days after deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 ㎡/month |
|
Detail Information |
|||
| Pixel Pitch: | 3.91mm | LED Lights: | SMD 2121 |
|---|---|---|---|
| Pixel Resolution: | 32768pixel/㎡ | Pixel Composing: | RGB |
| Cabinet Dimension(W*H): | 1000*1750mm | Brightness: | 3500nits |
| Gray Level: | 14bit | Life Span: | 100000 Hours |
| Highlight: | transparent led wall,transparent led panel |
||
Product Description
Super Nice Perspective Effect Potable Transparent Glass Poster LED Display P3.91 For Mobile Performance
Product features
1. Extremely light weight----------14kgs/sqm, can be install onto building glass wall.
2. Fast installation ---------Average 5-10 seconds to install an individual cabinet.
3. Stability long life time-------Low consumption of electricity to increase the lifetime of LEDs.
4. Energy efficient--------average 150W per sqm
5. Simple structure-------Reduce the cost of steel structure (Average 5 USD per sqm)
6. Labor efficient--------Reduce the labor time and cost by 60%
Product parameter
| Model No. | G3.91-7.8125 |
| LED Light | SMD 1921 |
| Pixel Pitch | 3.91mm |
| Pixel | 32768dots/m2 |
| Module Dimension(W*H) | 1000mm X1750 mm |
| Scan Mode | 1/16s |
| Pixel Composing | 1R1G1B |
| Cabinet Material | Die-casting aluminum |
| Cabinet Dimension(W*H) | 1000mm X1750 mm |
| Cabinet Weight | 6.6kg |
| Viewing Angle | H:140° V:140° |
| Max Power Consumption | 300W/m2 |
| Refresh Rate | ≥1920Hz |
| Brightness | 3500nits |
| Ingress Protection (Front/Rear) | IP43 |
| Operating Temperature | -20°C~60°C |
| Operating Humidity | 10%~65%RH |
| Input Voltage | AC220V/110V±15% |
| Life Time | 100000 hours |
Advantages
1. High pixel density and high definition.
2. Low brightness high gray, nondestructive gray-scale.
3.Double latch display technology, reduce brightness, nondestructive gray-scale , low gray not partial red ,The transition nature , color and exquisite realistic.
4. High perspective effect: over 50% of the perspective effect can hardly be seen from far.
5. Flexible installation mode, suitable for different application scenarios.
6. Light weight, single disassembly design without tools, suitable for mobile performance, convenient
Applications
G3.91 LED display is the very popular , which Can be quickly installed in the use of rental occasions, or can be directly pasted in the glass wall, in the shop can do window display! Construction used for broadcasting, broadcasting and lighting of buildings; The box unit of 1000mmx500mm weighs only 9kP and has a maximum thickness of 54m,With high transparent effect and showing in lively HD and holographic effect as well as intelligent interactive function, the application of large building glass curtain wall achieved in mixing harmonious and innovative display effect without changing any building structure.
