• High Brightness Transparent LED Panel , Advertising LED Transparent Screen 1R1G1B
High Brightness Transparent LED Panel , Advertising LED Transparent Screen 1R1G1B

High Brightness Transparent LED Panel , Advertising LED Transparent Screen 1R1G1B

Product Details:

Place of Origin: Shenzhen China
Brand Name: LECEDE
Certification: CE ROHS FCC UL ETL
Model Number: G10.4
Document: Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden case packing, flight case packing , honeycomb case
Delivery Time: 15~30 days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 ㎡/month
Get Best Price Contact Now

Detail Information

Pixel Pitch: 10.4mm LED Lights: SMD 3512
Pixel Composing: 1R1G1B Cabinet Dimension(W*H): 1000mm*500mm
Gray Level: 14bit Life Span: 100000 Hours
Highlight:

transparent led wall

,

transparent glass led screen

Product Description

High Brightness Transparent Glass LED Display for Glass Wall , Advertising LED Transparent Screen





Introduction:



1. Unparalleled Transparency
Greater than >80% transparency at highest resolution, noticeable when viewing from five meters or more.
2. Easy Setup
Plug and play. Super quick and easy for installation.
3. Light Weight
Only weighted 18kg/pcs (including hanging strings and power supplies). It weights half of most LED displays.
4. High Brightness & Energy Efficiency
With 6000 nits (cd/m2) in brightness, the display is visible under direct sun light and can be used 24/7.



Features:

Pixel Pitch(mm) 5 x 8 7.5x 8 10
LED Model SMD3512 SMD3512 SMD3512
Brightness(nit) 6000 6000 6000
Transparency 68% 68% 75%
Display Size(mm) 960x1280 960x1280 960x1280
Display Resolution 192x160 128x160 96x128
Resolution(dot/㎡) 25000 16666 10000
Max. Power(W/㎡) 860 820 880
Avg. Power(W/㎡) 258 246 264
Ingress Protection IP20 IP20 IP20
Refresh Rate(Hz) 1000-1500 1000-1500 1000-1500
Weight(kg/㎡) 18kg/pcs 18kg/pcs 18kg/pcs
Working Temp -10~40℃ -10~40℃ -10~40℃



Module design diversity secures compatibility , currently include: 320*320mm , 320*200mm , 240*320mm , 240*200mm
Ultra-thin with 6.5cm thickness and ultra-light design with 23 kg/sqm weight.
High refresh rate , 16 bit grayscale, 2000HZ ,Transparency 90%. Glass display is become the best in wall curtain serials
3 Highs: 16 bit high gral scale, max.2000 HZ high refresh rate and 90% high led coefficient.
Light ,thin, transparent, convenient maintenance, long lifetime and large scale application.
Neat cable slot design for invisible side cables and structure supporting.
Easy and convenient installation, no destruction to existing building structure.

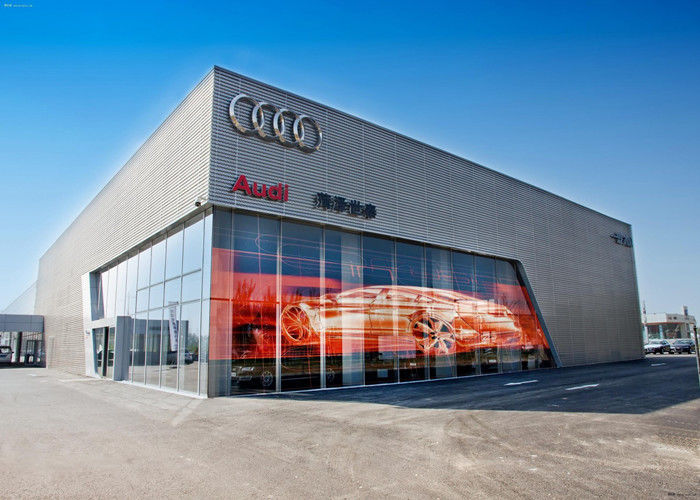

Wide application, can be used for bank, supermarket, theater, business street, hotel, public civic buildings, and landmark buildings, etc. for large square usage.



Pixel Pitch 10.416 mm 10.416mm 12.5 mm 12.5 mm
Pixel Density 9216 pixels/m² 9216 pixels/m² 6400 pixels/m² 6400 pixels/m²
Brightness 900-1200 nit 3200-3600 nit 800-1000 nit 3500-3800 nit
Weight / Module 10 KG 10 KG 10 KG 10 KG
View Distance 10 m 10 m 12 m 12 m
Max power consumption 300 w/m² 300 w/m² 300 w/m² 300w/m²
Ave power consumption 120 w/m² 120 w/m² 120 w/m² 120 w/m²
Refresh rate >=960 Hz >= 960 Hz >=960 Hz >=960 Hz
Cabinet size 1000x500x54mm/ 500*500*54mm 500x1000mm 500x1000mm
Led type SMD 3512 RGB 3in1 SMD 3535
Gray Scale 14bit
Color type 68 Billion
IP Rating IP30
Viewing Angle 140°/140°
Brightness Control 0-100% 16 level
