Ultra Thin P10 Transparent LED Display Mesh SMD 3512 With 80% Transparency
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | LECEDE |
| Certification: | CE ROHS FCC UL ETL |
| Model Number: | G10.4 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case packing, flight case packing , honeycomb case |
| Delivery Time: | 15~30 days after deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 ㎡/month |
|
Detail Information |
|||
| Pixel Pitch: | 15.62 Mm | LED Lights: | SMD 3512 |
|---|---|---|---|
| Pixel Resolution: | 3906 Pixel/㎡ | Pixel Composing: | 1R1G1B |
| Cabinet Dimension(W*H): | 1000mm*1000mm | Brightness: | 4500 Nits |
| Gray Level: | 14bit | Life Span: | 100000 Hours |
| Highlight: | transparent led wall,transparent glass led screen |
||
Product Description

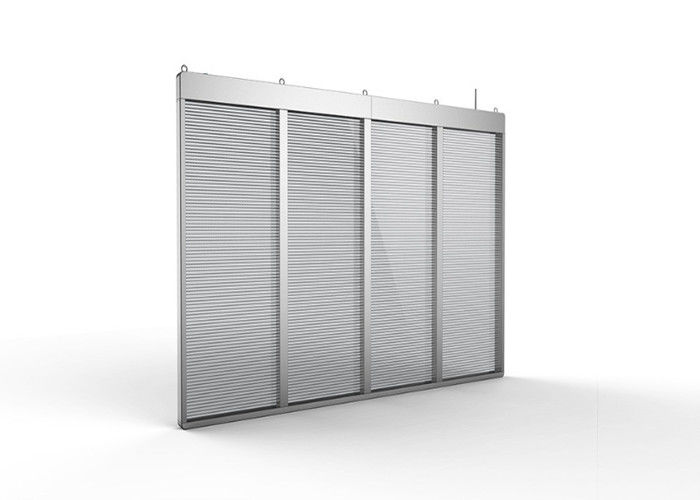

Ultra Thin P10 Transparent Led Display Mesh With 80% Transparency
Ultra Thin 10mm Transparent Mesh Led Display has extremely high 80% transparency and able to achieve a brilliant visual effect. It is directly mounted on glass windows against the building for advertising and decoration, as well as rental application for stage. It's ultra thin and lightweight, making it the perfect choice for creative designing company to use on large-scale applications.
1. Thin and light weight
Whole cabinet is only 10mm thick, 14kg/㎡ light weight allows small space for the installation, and doesn't affect the appearance of the buildings
2. Stable and reliable
Under the patent of inlaying SMD into PCB, the stability is better than other similar products in the market.
3. Wide applications
Any building with glass wall, for example, bank, shopping mall, theatres, chain stores, hotels, and landmarks etc.
4. Easy and fast installation
Smart fast lock systems ensure fast installation, saving labor cost
5. High brightness and energy saving
High brightness ensure the wonderful performance even under direct sunlight, without any cooling system, energy efficient
6. Easy maintenance
Repairing single SMD without taking out single module or entire panel

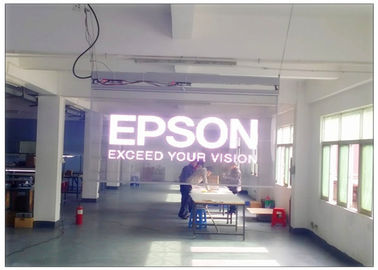

7. High transparency 80%
Up to 80% transparency rate can keep the internal natural lighting and viewing, the SMD are almost invisible from distance.
| Brightness | nits | 5500 | ||
| Color temperature | deg.k | 3200 ~ 9300 | ||
| Viewing angle - Horizontal | deg. | 160(+80/-80) | ||
| Viewing angle - Vertical | deg. | 160(+80/-80) | ||
| Cabinet weight | kg | 8 | ||
| Cabinet width | mm | 960 | ||
| Cabinet height | mm | 640 | ||
| Cabinet depth | mm | 98 | ||
| Cabinet area | sq. m. | 0.61 | ||
| Cabinet material | Cold Steel | |||
| Aspect ratio | 3:2 | |||
| Ingress protection (Front/Rear) | IP | IP65/IP54 | ||
| Operating temperature range | deg. C | - 20 to 50 | ||
| Operating humidity range | HR | 10％ to 90％ | ||
| Pixel type and configuration | R/G/B | SMD 3in1 | ||
| Pixel pitch | mm | 10 | ||
| Pixel matrix per cabinet | 96x64 | |||
| Pixels per cabinet | 6144 | |||
| Lines per meter | 100 | |||
| Pixels per sq. meter | 10000 | |||
| LEDs per sq. meter | 10000 | |||
| Recommended minimum viewing distance | m | 10 | ||
| Colours | 281trillion | |||
| Gray scale | Levels | 65536 levels per colour | ||
| Brightness control | Levels | 100 | ||
| Digital processing | bit | 16 | ||
| Frame rate | Hertz | 60 | ||
| Display refresh rate | Hertz | 1920 | ||
| Input voltage | VAC | 110/240 | ||
| Input power frequency | Hertz | 50/60 | ||
| Input power (max/avg) | Watts per sq.m | 650/220 | ||
| MTBF | Hours | ≥10000 | ||
| Lifetime (50%Brightness) | Hours | ≥100000 | ||
| Module brightness uniformity | ＜5％ | |||
| Blind spot rate | ＜0.0001 | |||
| Earth leakage current | mA | ＜2 | ||
| Red wavelength | nm | 623 | ||
| Green wavelength | nm | 525 | ||
| Blue wavelength | nm | 470 | ||
| Panel input format (with video processor) | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV | |||
| Data interconnection | CAT6 cable/Fiber | |||
| Operating system | Windows(XP/Vista/7/8/10) | |||
| Control distance | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. | |||
