P6 P8 P10 Outdoor Led Display Screen Video Panel High Brightness For Advertising
Product Details:
| Place of Origin: | China |
| Brand Name: | TOPLED |
| Certification: | CE ROSH FCC |
| Model Number: | P1.25-P10 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Woden case/Carton box/Flight case |
| Delivery Time: | 10-25 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 per month |
|
Detail Information |
|||
| Pixel Pitch(mm): | P1.25-P10 Available | LED Configuration: | 1R1G1B |
|---|---|---|---|
| Module Size(mm): | Customize | Module Resolution: | Customize Pixel |
| Grey Scale: | 14-16bit | Refresh Rate(HZ): | 1920/2880/3840HZ |
| Panel Power Consumption(W): | 200-800W | Display Function: | Video |
| Highlight: | bright led display,large led display panels |
||
Product Description
Outdoor High Brightness P6/P8/P10 LED Display Screen for Advertising Video Panel
| Outdoor High Brightness P6/P8/P10 LED Display Screen for Advertising Video Panel | ||
| NO | HD small pixel LED display | P1.5625 / P1.667/ P1.923/ P2 |
| 1 | Hot rental LED display | P3 /P3.91 /P4 /P4.81 /P5.95 /P6 / P6.25/P6.67 |
| 2 | Outdoor fixed LED display | P4/P5 /P6 /P8 /P10 /P16 /P20 |
| 3 | LED Control System | Nova Star / LINSN /Colorlight /Listen |
| 4 | LED | Nation Star /Epistar /Kinglight |
| 5 | IC | MBI5124 /5153 IC |
| 6 | Power supply | Meanwell / G-energy |
| 7 | Cabinet kind | Iron /Aluminum /Die-casting /Fiber Aluminum |
| NO | Parameter | |
| 1 | Pixel Pitch | 6/8/10 mm |
| 2 | Cabinet Size | 960*960mm / 768*768mm /1024*1024mm |
| 3 | Pixel density | 27,777 dots/m2 /15,625dots/m2 / 10,000 dots/m2 |
| 4 | Color temperature | 6000K--8000K |
| 5 | Viewing angle | H:140;V:140 |
| 6 | Brightness | 5500-7500 cd/m2 ,brightness automatically adjusted |
| 7 | Gray level | 256 RGB each ,display 16.7M colors ,vivid and perfect video effect |
| 8 | Dead LED lamp rate | ≤0.1‰ |
| 9 | Non-Flatness | <0.2mm |
| 10 | Module interval | <0.2mm |
| 11 | Packaging Gross Weight(KG) | 45 kg (Estimated data) |
| 12 | Packaging dimension | 1m*1m*1.15 m (6cabinet in one case) |
| 13 | Maximal power/m2 | P6 /P8 :1000 W/m2 P10 : 800 W/m2 |
| 14 | Brightness adjusted | 256 grade by auto-optic/color &8 grade by hand |
| 15 | Input signal | RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc |
| 16 | Life-span | ≥1 00,000 hours |
| 17 | MTBF | 5,000 hours |
| 18 | Frame frequency | 25 - 60 Hz / s |
| 19 | Refresh rate | ≥2,000 Hz ,if you want ≥ 3840 Hz we can design special offer for you |
| 20 | Signal Input(with video processor) | HDMI, DVI, VGA, RF, S-Video, RGB, RGBHV, YUV, YC&Composition, etc. |
| 19 | Control Distance | 120 m (no repeating); Optical fiber transmission: 0.5km- 10km |
| 20 | Systems Operating Platform |
Windows XP, Win 7, Win8, Win8.1, Win10
|

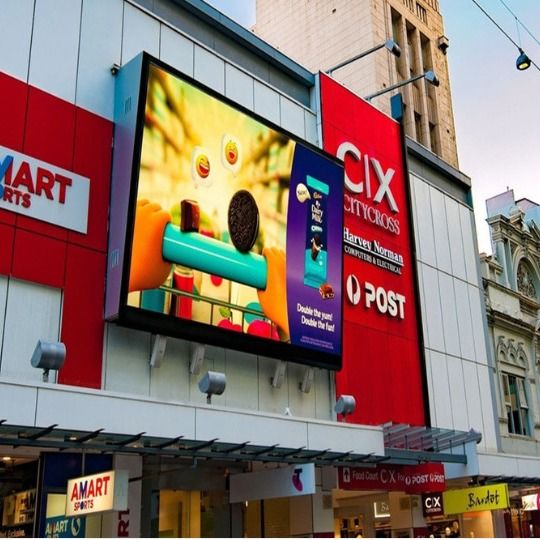

Ideal for outdoor advertisement media, government& enterprise project culture & tourism, sports, propaganda Image, commercial real estate.
Lead Time:Delivery in 10-25 working days.
