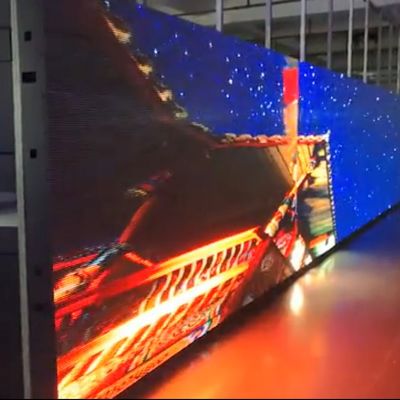

SMD Led Wall Screen Display Outdoor , Advertising Led Video Display P6 P8 P10 1R1G1B
Product Details:
| Place of Origin: | China |
| Brand Name: | TOPLED |
| Certification: | CE ROSH FCC |
| Model Number: | P1.25-P10 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Woden case/Carton box/Flight case |
| Delivery Time: | 10-25 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 per month |
|
Detail Information |
|||
| Pixel Pitch(mm): | P1.25-P10 Available | LED Configuration: | 1R1G1B |
|---|---|---|---|
| Module Size(mm): | Customize | Module Resolution: | Customize Pixel |
| Grey Scale: | 14-16bit | Refresh Rate(HZ): | 1920/2880/3840HZ |
| Panel Power Consumption(W): | 200-800W | Display Function: | Video |
| Highlight: | bright led display,large led display panels |
||
Product Description
High Brightness SMD Outdoor Screen, Full Color Video Display, Advertising LED Display Screen (P6, P8, P10)
P6 SMD3535 Full Color LED Display panel for outdoor advertising with high brightness,good waterproof and competitive price
Product Features:
1. SMD led encapsulation confirm wide view distance and good uniformity
2. High brightness,good waterproof IP65,anti-corrosion,anti-rust,long life span>100000hours
3.High pixel density, high resolution and high definition,perfect display vision
4. Lower power consumption,good heat dissipation,low noise created.
5. Cabinet with locks,connectors,easy and quick to assemble without tools in short time
6. Widely used for commercial display,advertising, stage background,mobile display. traffic display,sports led display etc.
| P6 SMD3535 Outdoor full Color LED Screen Specification | |
| Pixel pitch | 6mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD3535 |
| Size of module | 192mm x 192mm |
| Resolution of module | 32 x32dots |
| Size of cabinet | 768mm X 768mm x 150mm/960mm x 960mm x150mm |
| Resolution of cabinet | 128x 128 dots/160x160dots |
| Material of Cabinet | Iron/Aluminum |
| Weight of Cabinet | 30/45KGS |
| Brightness | >6000cd/sq.m |
| Density | 27777dots/sq.m |
| Best viewing angle | 140 /140 |
| Pixel Configuration | 1R1G1B |
| Best viewing distance | 5-60M |
| Maximum power consumption | 1000W/sq.m |
| Average power consumption | 560W/sq.m |
| Driving method | 1/8 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256*256*256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >1920Hz |
| IP grade | IP65 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
| Effectivce Communication Distance(without relay) |
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
Lead Time:Delivery in 10-25 working days.
