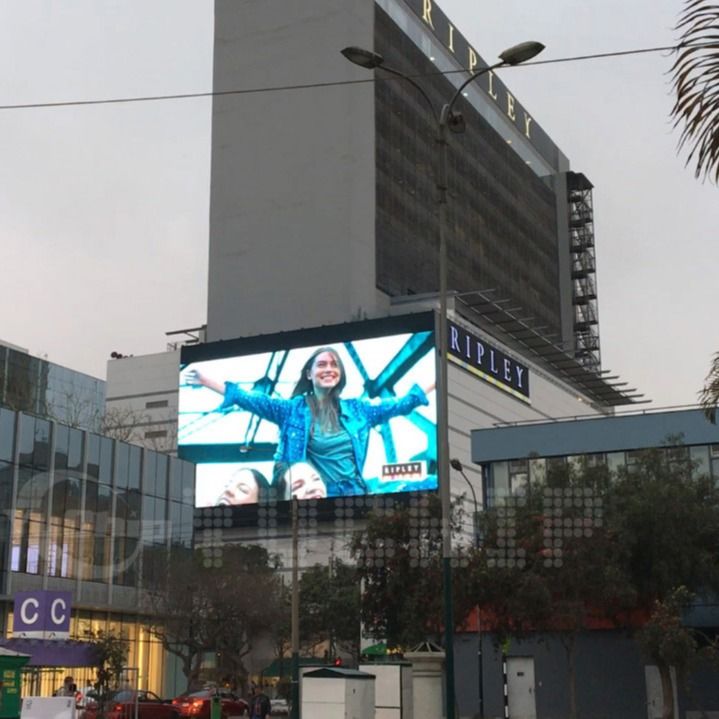

P10 HD High Brightness LED Display Full Color 320*160mm Module Size FCC Approved
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | TOPLED |
| Certification: | CE,ROHS,FCC |
| Model Number: | P10 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Flight case,Honey Comb, Wooden case |
| Delivery Time: | 25days after confirmed the order |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sqm/Month |
|
Detail Information |
|||
| Module Size: | 320*160mm | Pixel Pitch: | 10mm |
|---|---|---|---|
| LED Configuration: | SMD3535 | Brightness: | 10000nits |
| Logo: | Customized | Cabinet Size: | 960*960mm |
| Cabinet Material: | Waterproof Iron Cabinet | Max Power Consumption: | 900W |
| AV Power Consumption: | 300W | ||
| Highlight: | large led display panels,led display panel |
||
Product Description
High Brightness LED Display 320*160mm Module Size TOPLED P10 HD Full Color
Specification:
| Pixel Pitch | 10mm |
| Pixel Density | 10000dots/sq.m |
| Color Configuration | 1R1G1B |
| LED Package | SMD3535 |
| Display | Full Color |
| Module Size | 320mm x 160mm |
| Module Resolution | 32dots x 16dots |
| Drive Duty | 1/2 Scan |
| Standard Cabinet Size | 960*960mm |
| Cabinet Weight | 45kg |
| Led Chip | Nationstar / Kinglight |
| Power | DC 5V, AC110V-220V |
| Brightness | ≥8600 cd/sqm |
| Viewing Distance | 10M |
| Viewing Angle | H: 140°; V:140° |
| Refresh Rate | >1920HZ, adjustable by software |
| Power Input | AC110V/ 220V ±10%, 50HZ |
| Max Power Consumption | 800W/cabinet |
| Ave. Power Consumption | 300W/cabinet |
| Temperature | -40℃~+65℃ |
| MTBF | >10,000 Hours |
| Life Span | >100,000 Hours |
| Waterproof Level | IP65 |
| Operating Humidity | 10%~90% RH |
| Control Method | Synchronous, Asynchronous, |
| Operating System | Win 98, Win2000, XP, Win7, Win8 |
| Video Signal Mode | RF, S-Video, RGB, RGBHV, YUV, YC etc |
| Certificate | CE, RoHS,ISO9001 |
Products Feature:
1. Plug and play zero setting.
2. Support Iso&Android devices.
3. Easy to opeartion,control by special mobile APP LED AD to connect to the screen WIFI.It support shot and send.
4. Ultra-thin&Ultra light design,the weight is only 28kg/pcs and the thickness is 30mm.
5. Can support 10pcs unit together with no gap compared with the similar product.
Module Details:
Cabinet Details
Products advantages:
1) product advantage: we have 12 years experience to encapsulate.
2) Price advantage: we have the best competitive price and the same even better quality at the market
3) Performance advantage: Best equality, high consistency ,big viewing angle ,can repair each led lights.
4) Quality advantage: From material to finished product, from design to produce, we control all steps, that’s the guarantee of the quality and reliability.
5) Service advantage: Better service at the same situation, better cooperation at same service!
Services
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
