Stadium P10 Outdoor Led Screen , Advertising Led Display Screen Easy Setup
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | TOPLED |
| Certification: | CE ROSH FCC |
| Model Number: | Outdoor P10 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases, honeycomb cases, flight cases for your option. |
| Delivery Time: | 5 Square meters /10 -15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Square Meters/month |
|
Detail Information |
|||
| Viewing Angle: | H<160 Degree,V<160 Degree | Cabinet Dimension(HxV): | 960x960mm |
|---|---|---|---|
| Keywords: | Outdoor Led Screen Wall | Input Voltage: | 220V Or 110V |
| Max.Power Consumption: | 1000w/m2 | Scan Mode: | 1/8San,Constant Current |
| Highlight: | led display on rent,led video wall rental |
||
Product Description

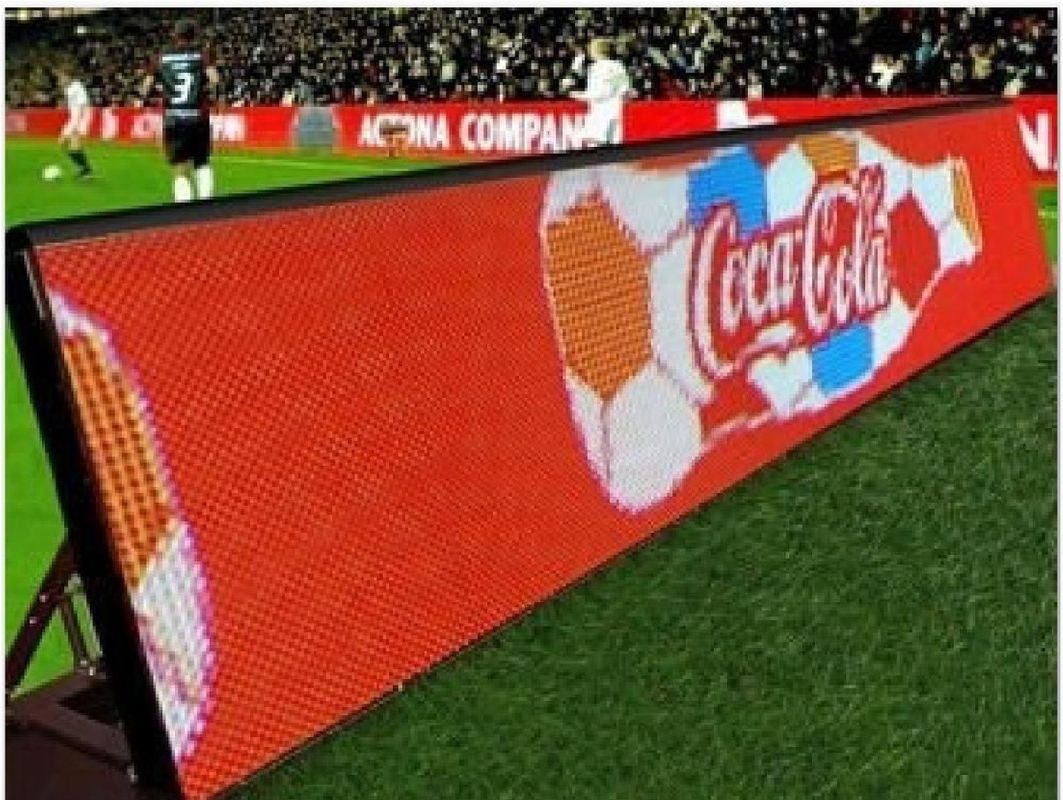

Football full color outdoor stadium perimeter advertising P10 led display
Characteristic
- Gorgeous Picture : Non-reflective screen, which brings better viewing experience.
- Perfect Image: Our products use special IC for LED which owns high refresh rate and achieves no shadows
- Light Weight : The body uses aluminum profile stitching, which is light and non- corrosive.
- Elegant Appearance : We adopt CNC processing technique to produce standard module and cabinetwhich can easily do seamless assemble .
- Standard Size : We use professional buckles and standard modular panels which can snap together easily.

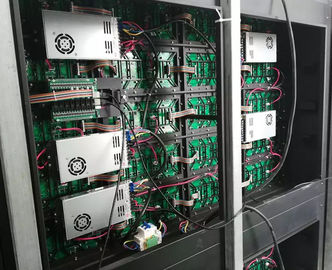

- Easy Setup :Back modules are made easier for connection.
- Energy -saving: Our products get low energy cost and high efficiency.
Product Description
Module
 | |||
| Module Size(W * H) | 192mm*96mm | Pixel Configeration | SMD 3528 3in1 |
| Pixel Pitch | 6mm | Resolution | 32dots*16dots |
| Pixel Density | 27777dots/m2 | Driving Method | |
Parameters
| Protection Grade | Front:IP65 Back:IP54 |
| System Operating Humility | 10% ~ 90% RH |
| Oprating Temprature | -20°C ~ +60°C |
| Optimal Viewing Distance | 10m ~ 60m |
| Display Color | 1,070,000,000 |
| Gray Scale | 16384 |
| Brightness Control | 256 grade |
| Frame Frequency | 60HZ |
| Refresh Speed | >300HZ |
| Power Supply | 220V/50HZ |
| MTBF | ≥10000hours |
| Life Span(50% brightness) | ≥100,000hours |
| Control Mode | synchronization with PC |
| Oprating System | WINDOWS(98/2000/XP/Vista) |
| Input Signal Format | VGA,DVI,RGBHV,PbPr(HDTV),Composite,S-Video,TV |
Main Features
- High brightness
High resolution
High density electronic full color display
Low power consumption
Convenient to move and install
- Wide viewing angle
Standard Waterproof Cabinet
Aging Test
