1R1G1B P4 Outdoor Led Video Panel Rental SMD1919 Easy Maintenance For Stage
Product Details:
| Place of Origin: | China (Mainland) |
| Brand Name: | TOPLED |
| Certification: | CE FCC ROHS |
| Model Number: | P4 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Fight case or Standard wooden box |
| Delivery Time: | 10-15 working days after got deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Usage: | Outdoor | Color: | Full Color |
|---|---|---|---|
| Cabinet Size: | 576*576mm | Material: | Die Casting Aluminum |
| Weight: | 11kg | Scan: | 1/8scan |
| Highlight: | led display on rent,led video wall rental |
||
Product Description
1R1G1B P4mm Outdoor Rental LED Screen SMD 1919 Easy Maintenance For Stage
Specification:
| Pixel Pitch | 4mm |
| Pixel Density | 40000dots/sq.m |
| Color Configuration | 1R1G1B |
| LED | SMD1919 |
| Display | Full Color |
| Module Size | 192mm x 192mm |
| Module Resolution | 48dots x 48dots |
| Drive Duty | 1/8 Scan |
| Standard Cabinet Size | 576*576mm |
| Cabinet Weight | 11kg |
| Led Chip | Nationstar / Kinglight |
| Power | DC 5V, AC110V-220V |
| Brightness | ≥6000 cd/sqm |
| Viewing Distance | 4M |
| Viewing Angle | H: 140°; V:140° |
| Refresh Rate | >1920HZ, adjustable by software |
| Power Input | AC110V/ 220V ±10%, 50HZ |
| Max Power Consumption | 800W/cabinet |
| Ave. Power Consumption | 300W/cabinet |
| Temperature | -40℃~+65℃ |
| MTBF | >10,000 Hours |
| Life Span | >100,000 Hours |
| Waterproof Level | IP65 |
| Operating Humidity | 10%~90% RH |
| Control Method | Synchronous, Asynchronous, 3G,WIFI,USB |
| Control PC | With DVI Graphic card |
| Operating System | Win 98, Win2000, XP, Win7, Win8 |
| Certificate | CE, RoHS,ISO9001 |
1. Multipurpose outdoor advertising Display
the high resolution led screen is known for displaying great quality picturtes and videos to a broader audience.
Highly usable for outdoor advertising such as banks,stages ,promotion,exhibitions,stations,stadiums
and other outdoor areas.
2. Seamless Splice
The High-Quality Satge LED Screen can be installed within minutes ,without any special tools .You may configure
the LED display as per your requirements and choice .Adjust the brightness ,gray scale and picture quality as per choice.
Advanced adjustment options allow you to set up display as per the environment conditions and area of installation.
3. Better Protection
The display features a Front IP66 waterproof grade which protects the display from any demage .
A dedicated guard prevents the screen from any damage and enviromental effects .
The screen will remain harmless in every condition and in every weather
4. High Gray Scale --Better Picture
The LED Screen is manufactured by using best quality material ,purchased from most reputed vendors .
The final products feature supreme quality and offers best outputs.High refresh rate and 16bit gray scale
ensures the picture quality remains seamless .

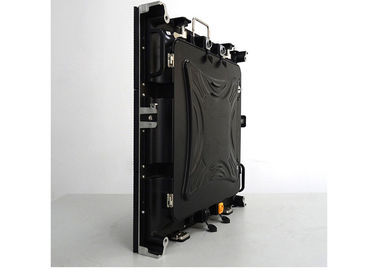

5. Unique Cabinet Design- Easy to install & Transport
The cabinet of High -Quality Stage LED Screen features unique rugged design which makes it easy to carry and install.
The lightweight cabinet is easy to carry and saves transportation cost.It's damage free and lasts for a lifetime .
Pick out from different standard colors of cabinets.
FAQ:
Q1: What is the brightness of Outdoor LED diplay screen?
A1: Normally, with the best SMD1919 LED lamp the brightness of Outdoor LED diplay screen can reach above 6000 cd/m2
Q10: What is the lead time?
A10: regarding mass order, if we have available raw material, the lead time will around 10 working days, otherwise, would be 25-30 working days
Q11: What is the payment method?
A11: Our usually practice for payment is by T/T for the mass order and also we do the trade assurance ( Provided by Alibaba and Gteak to make sure your payment, shipment, goods’ quality security and ensurance)

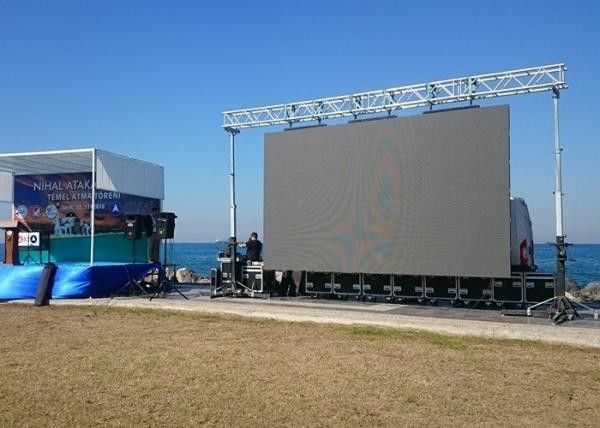

Project images:
