Die Casting Aluminum P3.91 Outdoor Led Display Panels Nationstar / Kinglight Led Chip
Product Details:
| Place of Origin: | China (Mainland) |
| Brand Name: | TOPLED |
| Certification: | CE FCC ROHS |
| Model Number: | P3.91 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Fight case or Standard wooden box |
| Delivery Time: | 10-15 working days after got deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Name: | P3.91 Outdoor Rental Led Screen For For Stage Use | Usage: | Outdoor |
|---|---|---|---|
| Color: | Full Color | Cabinet Size: | 500*500mm |
| Module Size: | 250*250mm | LED: | SMD1919 |
| Brightness: | 5000cd | Material: | Die Casting Aluminum |
| Highlight: | led display on rent,led video wall rental |
||
Product Description
High Brightness P3.91 Outdoor Rental Led Screen For For Stage Use
Specification:
| Pixel Pitch | 3.91mm |
| Pixel Density | 65536dots/sq.m |
| Color Configuration | 1R1G1B |
| LED Package | SMD1919 |
| Display | Full Color |

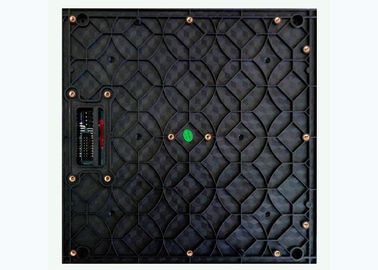

| Module Size | 250mm x 250mm |
| Module Resolution | 64dots x 64dots |
| Drive Duty | 1/16 Scan |
| Standard Cabinet Size | 500*500mm |
| Cabinet Weight | 7kg |
| Led Chip | Nationstar / Kinglight |
| Power | DC 5V, AC110V-220V |
| Brightness | ≥5000 cd/sqm |
| Viewing Distance | 3M |
| Viewing Angle | H: 140°; V:140° |
| Refresh Rate | >3840HZ, adjustable by software |
| Power Input | AC110V/ 220V ±10%, 50HZ |
| Max Power Consumption | 260W/cabinet |
| Ave. Power Consumption | 80W/cabinet |
| Temperature | -40℃~+65℃ |
| MTBF | >10,000 Hours |
| Life Span | >100,000 Hours |
| Waterproof Level | IP65 |
| Operating Humidity | 10%~90% RH |
| Control Method | Synchronous |
| Control PC | With DVI Graphic card |
| Operating System | Win 98, Win2000, XP, Win7, Win8 |
| Certificate | CE, RoHS,ISO9001 |
Features:
1. Adopting the brightness and hue adjustment technologies, eliminate the bright and dark patches and plagues, realized the color and brightness uniform of the whole display; Taking the HDTV standards as color correction reference,restore nature vivid colors for the whole display.

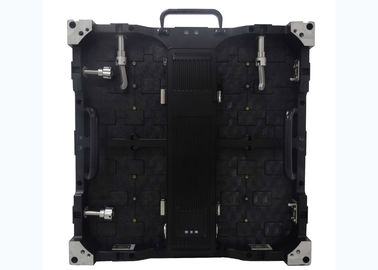

2. Modular ultra light cabinet with fast lock and dowel pin on it make it quite easy for installation, disassemble and maintain.It can realized lifting or piling installation on site.
3. Cabinet made of good quality pressure-casting aluminum can bear load strength and reduce deformation;It's suitable for large entertainment.
Application:
Entertainment venues ,broadcast, auditoriums, stage events, malls, market squares, offices, hotels, restaurants, banquets , sports, entertainment and other special event.
Outdoor stage shows ,big concert, wedding background , media Facade , Video Productions
perfect display solution for outdoor events such as exhibitions, conferences, awards shows, experimental marketing and corporate events

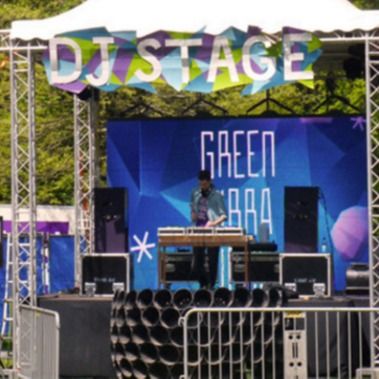

Project images:
