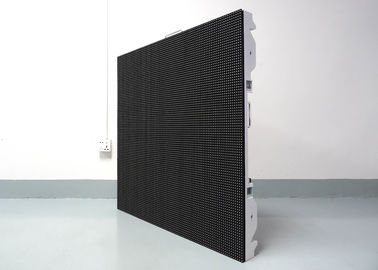

Full Color P8 Outdoor LED Display Screen With White Aluminium Cabinet
Product Details:
| Place of Origin: | China (Mainland) |
| Brand Name: | TOPLED |
| Certification: | CE FCC ROHS |
| Model Number: | P8 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Fight case or Standard wooden box |
| Delivery Time: | 10-15 working days after got deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Usage: | Outdoor Rental | Color: | Full Color |
|---|---|---|---|
| Cabinet Size: | 960*960mm | Material: | Die Casting Aluminum |
| Module Size: | 320*160mm | Brightness: | 6500nits |
| Fuction: | Video/Images | Warranty: | 2years |
| Highlight: | led display on rent,outdoor rental led screen |
||
Product Description
Full Color Outdoor Advertising Rental LED Display Screen With White Aluminium Cabinet
Specification:
| Pixel Pitch | 8mm |
| Pixel Density | 15625dots/sq.m |
| Color Configuration | 1R1G1B |
| LED Package | SMD3535 |
| Display | Full Color |
| Module Size | 320mm x 160mm |
| Module Resolution | 40dots x 20dots |
| Drive Duty | 1/3 Scan |
| Standard Cabinet Size | 960*960mm |
| Cabinet Weight | 28kg |
| Led Chip | Nationstar / Kinglight |
| Power | DC 5V, AC110V-220V |
| Brightness | ≥6500 cd/sqm |
| Viewing Distance | 10M |
| Viewing Angle | H: 140°; V:140° |
| Refresh Rate | >1920HZ, adjustable by software |
| Power Input | AC110V/ 220V ±10%, 50HZ |
| Max Power Consumption | 800W/cabinet |
| Ave. Power Consumption | 300W/cabinet |
| Temperature | -40℃~+65℃ |
| MTBF | >10,000 Hours |
| Life Span | >100,000 Hours |
| Waterproof Level | IP65 |
| Operating Humidity | 10%~90% RH |
| Control Method | Synchronous, Asynchronous, 3G,WIFI,USB |
| Control PC | With DVI Graphic card |
| Operating System | Win 98, Win2000, XP, Win7, Win8 |
| Video Signal Mode | RF, S-Video, RGB, RGBHV, YUV, YC etc |
| Certificate | CE, RoHS,ISO9001 |
1. Outdoor rental led Display
the high resolution led screen is known for displaying great quality picturtes and videos to a broader audience.
Highly usable for outdoor advertising such as banks,stages ,promotion,exhibitions,stations,stadiums
and other outdoor areas.

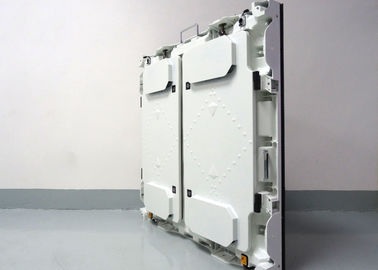

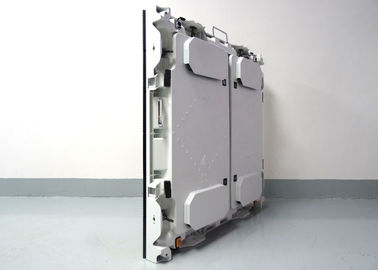

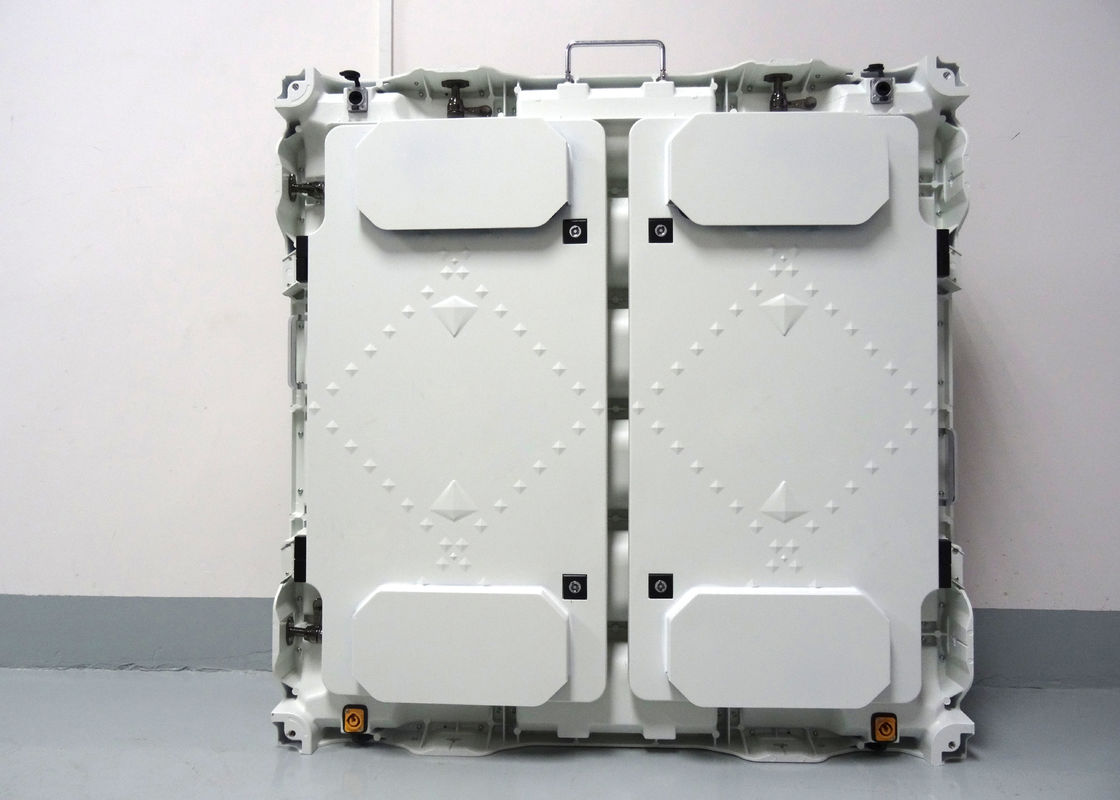

2. Standard Cabinet Dimensions
The ultra-lightweight cabinet made is alunimum alloy which gives it extra strength .
The cabinet of LED display is designed with perfection,marking it really easy to install.
Also,the quick -lock feature requires no technical skills to install and uninstall.
3. High Quality Black Body with Square Module
The display features high quality black body and square module.The strong body prevents any demage
and makes it reliable in any weather conditions.Rectangle module makes it ideal to use at any place.
4. Seamless Splice
The High-Quality Satge LED Screen can be installed within minutes ,without any special tools .You may configure
the LED display as per your requirements and choice .Adjust the brightness ,gray scale and picture quality as per choice.
Advanced adjustment options allow you to set up display as per the environment conditions and area of installation.
Project images:
