Die Casting Aluminum P10 SMD Led Screen , Led Display On Rent AC110V - 220V
Product Details:
| Place of Origin: | China (Mainland) |
| Brand Name: | TOPLED |
| Certification: | CE FCC ROHS |
| Model Number: | P10 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Fight case or Standard wooden box |
| Delivery Time: | 10-15 working days after got deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Usage: | Outdoor | Color: | Full Color |
|---|---|---|---|
| Cabinet Size: | 960*960mm | Material: | Die Casting Aluminum |
| Module Size: | 320*160mm | Brightness: | 6500nits |
| Fuction: | Video/Images | Refresh Rate: | >1920HZ/s |
| Highlight: | outdoor rental led screen,led video wall rental |
||
Product Description

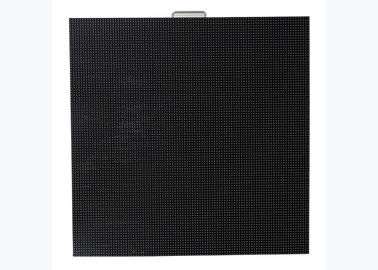

P10 960x960 Die Casting Aluminum Full Color Outdoor Led Display For Rental
Specification:
| Pixel Pitch | 10mm |
| Pixel Density | 10000dots/sq.m |
| Color Configuration | 1R1G1B |
| LED Package | SMD3535 |
| Display | Full Color |
| Module Size | 320mm x 160mm |
| Module Resolution | 32dots x 16dots |
| Drive Duty | 1/2 Scan |
| Standard Cabinet Size | 960*960mm |
| Cabinet Weight | 28kg |
| Led Chip | Nationstar / Kinglight |
| Power | DC 5V, AC110V-220V |
| Brightness | ≥6500 cd/sqm |
| Viewing Distance | 10M |
| Viewing Angle | H: 140°; V:140° |
| Refresh Rate | >1920HZ, adjustable by software |
| Power Input | AC110V/ 220V ±10%, 50HZ |
| Max Power Consumption | 800W/cabinet |
| Ave. Power Consumption | 300W/cabinet |
| Temperature | -40℃~+65℃ |
| MTBF | >10,000 Hours |
| Life Span | >100,000 Hours |
| Waterproof Level | IP65 |
| Operating Humidity | 10%~90% RH |
| Control Method | Synchronous, Asynchronous, 3G,WIFI,USB |
| Control PC | With DVI Graphic card |
| Operating System | Win 98, Win2000, XP, Win7, Win8 |
| Video Signal Mode | RF, S-Video, RGB, RGBHV, YUV, YC etc |
| Certificate | CE, RoHS,ISO9001 |
1. Multipurpose outdoor advertising Display
the high resolution led screen is known for displaying great quality picturtes and videos to a broader audience.
Highly usable for outdoor advertising such as banks,stages ,promotion,exhibitions,stations,stadiums
and other outdoor areas.
2. Standard Cabinet Dimensions
The ultra-lightweight cabinet made is alunimum alloy which gives it extra strength .
The cabinet of LED display is designed with perfection,marking it really easy to install.
Also,the quick -lock feature requires no technical skills to install and uninstall.
3. High Quality Black Body with Square Module
The display features high quality black body and square module.The strong body prevents any demage
and makes it reliable in any weather conditions.Rectangle module makes it ideal to use at any place.
4. Seamless Splice
The High-Quality Satge LED Screen can be installed within minutes ,without any special tools .You may configure
the LED display as per your requirements and choice .Adjust the brightness ,gray scale and picture quality as per choice.
Advanced adjustment options allow you to set up display as per the environment conditions and area of installation.
5. Better Protection
The display features a Front IP66 waterproof grade which protects the display from any demage .
A dedicated guard prevents the screen from any damage and enviromental effects .
The screen will remain harmless in every condition and in every weather
6. High Gray Scale --Better Picture
The LED Screen is manufactured by using best quality material ,purchased from most reputed vendors .
The final products feature supreme quality and offers best outputs.High refresh rate and 16bit gray scale
ensures the picture quality remains seamless .

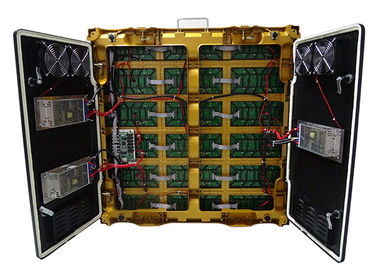

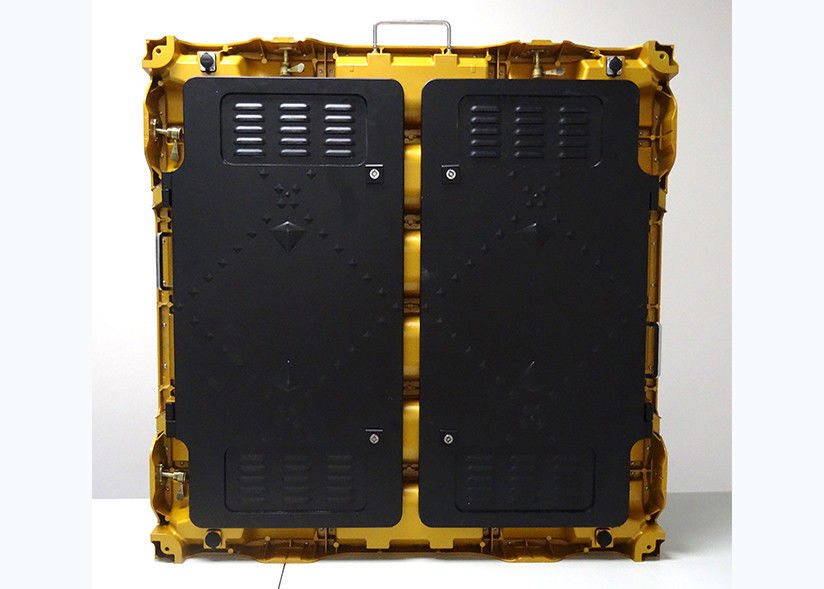

7. Unique Cabinet Design- Easy to install & Transport
The cabinet of High -Quality Stage LED Screen features unique rugged design which makes it easy to carry and install.
The lightweight cabinet is easy to carry and saves transportation cost.It's damage free and lasts for a lifetime .
Pick out from different standard colors of cabinets.
8. One Price for ALL
