Video / Images P8 Outdoor LED Display Screen Die Casting Aluminium Materials
Product Details:
| Place of Origin: | China (Mainland) |
| Brand Name: | TOPLED |
| Certification: | CE FCC ROHS |
| Model Number: | P8 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Fight case or Standard wooden box |
| Delivery Time: | 10-15 working days after got deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Usage: | Outdoor Rental | Color: | Full Color |
|---|---|---|---|
| Cabinet Size: | 640*640mm | Material: | Die Casting Aluminum |
| Module Size: | 320*160mm | Brightness: | 6500nits |
| Fuction: | Video/Images | Scan Mode: | 1/4scan |
| Highlight: | led display on rent,outdoor rental led screen |
||
Product Description
P8 High Brightness Rental LED Screen With 640x640mm Die Casting Aluminium Cabinet
Specification:
| Pixel Pitch | 8mm |
| Pixel Density | 15625dots/sq.m |
| Color Configuration | 1R1G1B |
| LED Package | SMD3535 |
| Display | Full Color |
| Module Size | 256mm x 128mm |
| Module Resolution | 32dots x 16dots |
| Drive Duty | 1/3 Scan |
| Standard Cabinet Size | 640*640mm |
| Cabinet Weight | 25kg |
| Led Chip | Nationstar / Kinglight |
| Power | DC 5V, AC110V-220V |
| Brightness | ≥6500 cd/sqm |
| Viewing Distance | 8M |
| Viewing Angle | H: 140°; V:140° |
| Refresh Rate | >1920HZ, adjustable by software |
| Power Input | AC110V/ 220V ±10%, 50HZ |
| Max Power Consumption | 800W/cabinet |
| Ave. Power Consumption | 300W/cabinet |
| Temperature | -40℃~+65℃ |
| MTBF | >10,000 Hours |
| Life Span | >100,000 Hours |
| Waterproof Level | IP65 |
| Operating Humidity | 10%~90% RH |
| Control Method | Synchronous, Asynchronous, 3G,WIFI,USB |
| Control PC | With DVI Graphic card |
| Operating System | Win 98, Win2000, XP, Win7, Win8 |
| Video Signal Mode | RF, S-Video, RGB, RGBHV, YUV, YC etc |
| Certificate | CE, RoHS,ISO9001 |
1. Outdoor rental led Display
the high resolution led screen is known for displaying great quality picturtes and videos to a broader audience.
Highly usable for outdoor advertising such as banks,stages ,promotion,exhibitions,stations,stadiums
and other outdoor areas.

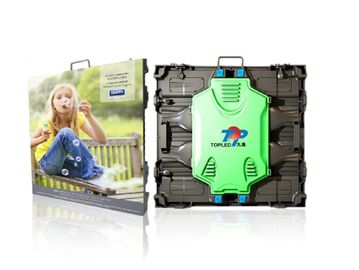

2. Standard Cabinet Dimensions
The ultra-lightweight cabinet made is alunimum alloy which gives it extra strength .
The cabinet of LED display is designed with perfection,marking it really easy to install.
Also,the quick -lock feature requires no technical skills to install and uninstall.

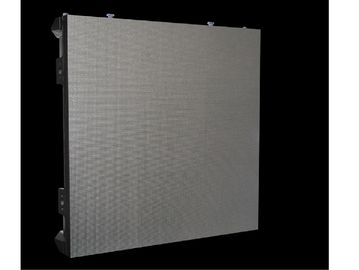

3. High Quality Black Body with Square Module
The display features high quality black body and square module.The strong body prevents any demage
and makes it reliable in any weather conditions.Rectangle module makes it ideal to use at any place.

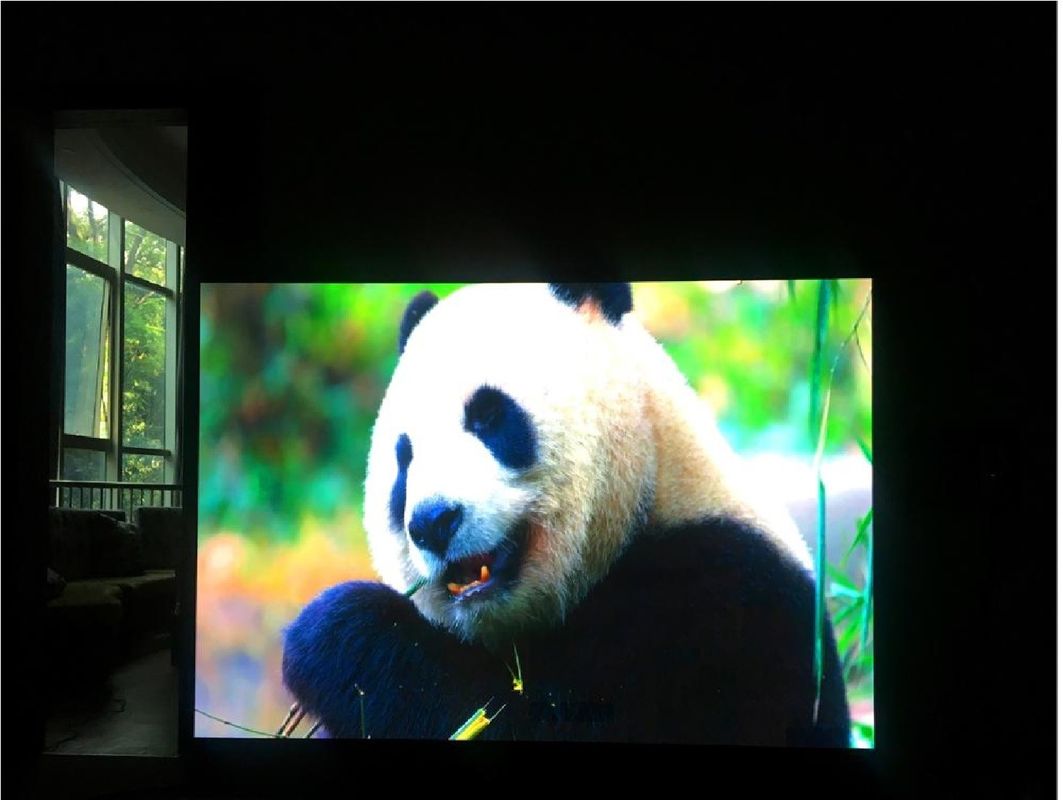

Project images:
