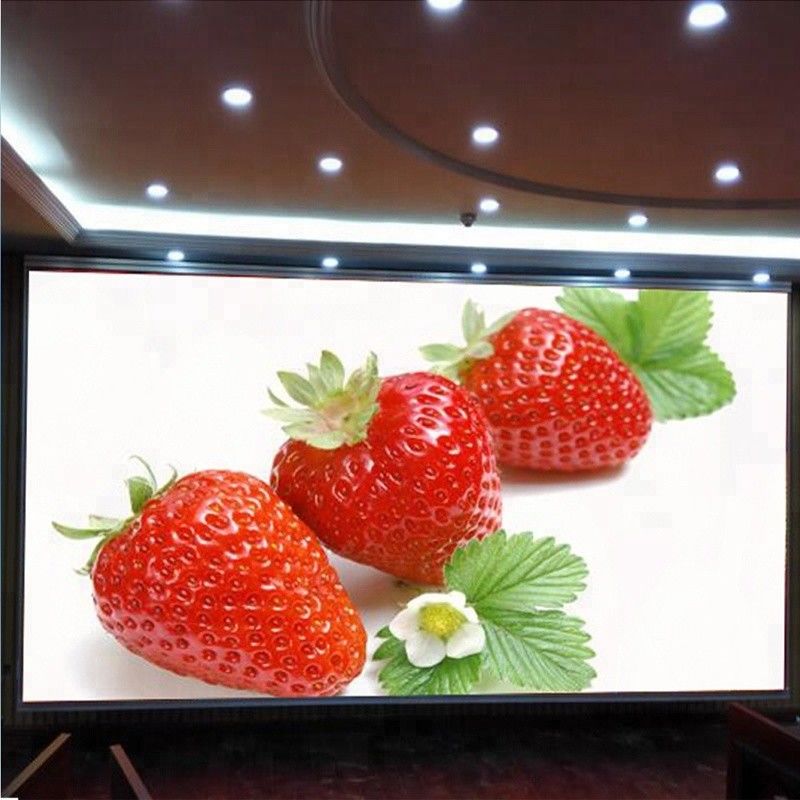

Full Color HD Indoor Led Display Screen SMD 3 In 1 P1.667 14 - 16 Bit Grey Scale
Product Details:
| Place of Origin: | China |
| Brand Name: | TOPLED |
| Certification: | CE ROSH FCC |
| Model Number: | P1.25-P16 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Woden case/Carton box/Flight case |
| Delivery Time: | 10-25 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 per month |
|
Detail Information |
|||
| Pixel Pitch(mm): | P1.25-P10 Available | LED Configuration: | 1R1G1B |
|---|---|---|---|
| Module Resolution: | Customize Pixel | Grey Scale: | 14-16bit |
| Panel Resolution: | Customize | Panel Power Consumption(W): | 200-750W |
| Highlight: | small pixel led display,hd led display |
||
Product Description
Full Color HD Indoor Led Display Screen SMD 3 In 1 P1.667 14 - 16 Bit Grey Scale
MAIN TECHNICAL PARAMETERS FOR INDOOR LED DISPLAY(PITCH1.667)
| P1.667-45S indoor LED MODULE SPEICIFICATIONS | ||||||||
| Pixel pitch :1.667mm | Module size : 200X150mm | Cabinet size :400×300×60(mm) | ||||||
| Physical density : 360000dots/sqm | Pixel configuration: 1R1G1B | Modules resolution: 120*90=2400DOTS | ||||||
| Modules weight: 0.3kg | ||||||||
| Cabinet resolution :240*180 | Cabinet 0.12sqp | |||||||
| MAIN TECHNICAL PARAMETERS | ||||||||
| Best viewing distance :2m~15m | Viewing angle Level GEQ160°Optional | vertica lGEQ60°Optional | ||||||
| Average power consumption<400W/sqm | Maximum power consumption<800w/sqm | Control mode: synchronous control | ||||||
| Display card: DVI | Driving GEQ method :1/45 scaning | Frame Frequency GEQ 60Hz | ||||||
| Refresh frequency GEQ 1920Hz | Equilibrium brightness 800cd/sqm | Display working voltage(VAC) | ||||||
| Brightness adjustment | Lighting sensor adjust automaticly | 16 grade adjustable | ||||||
| Adjust by bands with software:100 grade adjustable | ||||||||
| Computer system | ||||||||
| WIN98,WINXP,WIN2000,etc | ||||||||
| Input signal | ||||||||
| RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc | ||||||||
| Control system | ||||||||
| PCTV nonlinearity card, DVI display card,Linsn control system | ||||||||
| Mean free error time GEQ 5000 hours | Lifetime: 75000~100000 hours | Pixel out of control rate <0.0002 one case | ||||||
| Project classification: PH2-26S | Package : SMD 3in1 | LED SMD 1010 | ||||||
Lead Time:Delivery in 10-25 working days.
