Interior Ultra HD P1.667 Small Pixel Led Display 16 Bit Grey Scale ISO14001
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | TOPLED |
| Certification: | CE, ROHS, FCC, ISO9001, ISO14001 |
| Model Number: | Indoor p1.667 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case, flight case, honeycomb. |
| Delivery Time: | 15-20 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 SQM/Month |
|
Detail Information |
|||
| Name: | P1.667 | Scan Method: | 1/30 |
|---|---|---|---|
| Refresh Rate: | 3840 | Module Size: | 200*150mm |
| Cabinet Size: | 400*300mm | Module Resolution: | 120*90 |
| Highlight: | fine pitch led display,hd led display |
||
Product Description

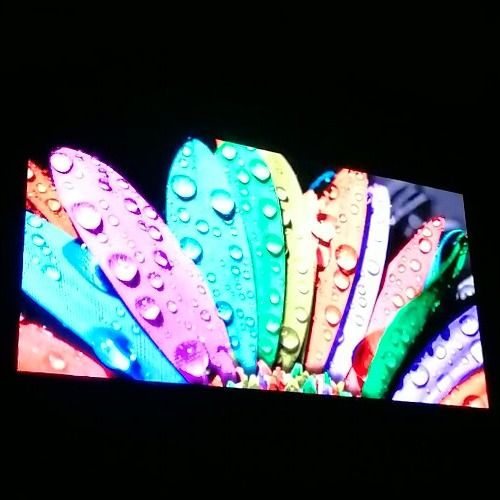

Interior Ultra HD Video Display Indoor P1.667 Small Pixel Pitch LED Display
Features
1. Indoor p1.667 smd led display module is manufactured by using best quality material.
2. High refresh rate without flicker and distortion.
3. The final products are supreme quality and offers best outputs.
4. Light weight and easy to install
5. Single-lamp maintenance with low cost.
Parameters
| Pixels(mm) | 1.667 |
| Physical Density | 360,000 |
| LED Configuration | 1RGB |
| LED type | SMD1010 |
| Module Size | 200×150 |
| Module Resolution | 120×90 |
| Module Power Consumption | 18W |
| Driving Mode | Constant Current IC |
| Scanning Mode | 1/30 |
| Horizontal Viewing Angle | 140 |
| Vertical Viewing Angle | 120 |
| Brightness | 900 |
| Grey Scale | 16bit |
| Refresh Rate | ≥3840 |
| Cabinet Resolution | 240×180 |
| Cabinet Max Consumption | 75 |
| Cabinet Average Power Consumption | 25 |
| Cabinet Size | 400×300 |
| Cabinet Weight(kg) | 4.3KG |
| Cabinet Thickness | 85mm |
| Cabinet Material | Die-casting Aluminum |
| Color | >16.7 |
| Input Voltage | AC 110V~220V +/-10% |
| Frame Frequency | ≥60 |
| Protection Level | IP45 |
| Working Temperature(℃) | -20° -+65° |
| Storage Humidity Range(RH) | 40%~60% |
| Life Span(H) | 100,000 hours |
