Highlight Super Thin Led Panel Screen Indoor , Led Display Board For Video
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | TOPLED |
| Certification: | CE ROHS FCC CCC |
| Model Number: | Indoor p2.5 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case, flight case, honeycomb. |
| Delivery Time: | 15-20 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 SQM/Month |
|
Detail Information |
|||
| Pixels: | 2.5mm | Brightness: | 1200cd/sqm |
|---|---|---|---|
| Module Size: | 160*160mm | Cabinet Size: | 480*480mm |
| Display Function: | Video | Life Span: | 100000 Hours |
| Panel Material: | Die-casting Aluminum | LED Chip: | Cree + Nichia + Epistar + Opto + Silan |
| Scan Mode: | 1/32 | LED Light Configuration: | KN-light SMD1818 |
| Highlight: | fine pitch led display,hd led display |
||
Product Description
Highlight ultra thin Nova led video Full color p2.5 led screen led video wall
Features
1. Gorgeous Picture: Non-reflective screen, which brings better viewing experience.
2. Perfect Image: Our products use special IC for LED which owns high refresh rate and achieves no shadows
3. Light Weight: The body uses aluminum profile stitching weighing 5-8kg, which is light and non- corrosive.
4. Elegant Appearance: We adopt CNC processing technique to produce standard module and cabinet which can easily do seamless assemble.
5. Standard Size: We use professional buckles and standard modular panels which can snap together easily.
6. Easy Setup: Back modules are made easier for connection.
7. Energy -saving: Our products get low energy cost and high efficiency.
Parameters
| Name | Parameter |
| Pixel Pitch(mm) | 2.5mm |
| Physical Density | 160,000 |
| LED Configuration | 1RGB |
| LED type | SMD1818 |
| Module Size | 160×160 |
| Module Resolution | 64×64 |
| Module Weight | 0.5kg |
| Driving Mode | Constant Current IC |
| Scanning Mode | 1/32 |
| Horizontal Viewing Angle | 140 |
| Vertical Viewing Angle | 120 |
| Brightness | 800-900 |
| Grey Scale | 16bit |
| Refresh Rate | >1920 |
| Cabinet Resolution | 192×192 |
| Cabinet Size | 480×480 |
| Cabinet Weight(kg) | 8kg |
| Cabinet Thickness | 85mm |
| Cabinet Material | Iron/Aluminum |
| Color | >16.7 |
| Input Voltage | AC 110V~220V +/-10% |
| Frame Frequency | 60 |
| Protection Level | IP45 |
| Working Temperature(℃) | -20° -+50° |
| Storage Humidity Range(RH) | 40%~60% |
| Life Span(H) | 100,000 hours |

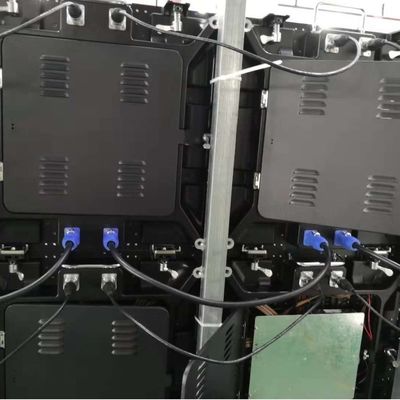

2. Die casting Aluminum Cabinet
Module
Application
Indoor Small pitch Led Display has the ability to play monitor videos and graphic information in real time. It is widely used in far viewing distance , such as shopping mall, conference center, stock exchange. Hotel, supermarket, gymnasium, stadium, TV station etc.
Attention
In order to offer you a suitable solution, Please state general info about your project.
1. Pixel pitch or view distance you need.
2. Dimension
3. Location of installation. ( eg, on poles, on wall of building, ect)
4. Purpose. ( what are you going to do with the LED Screen.
