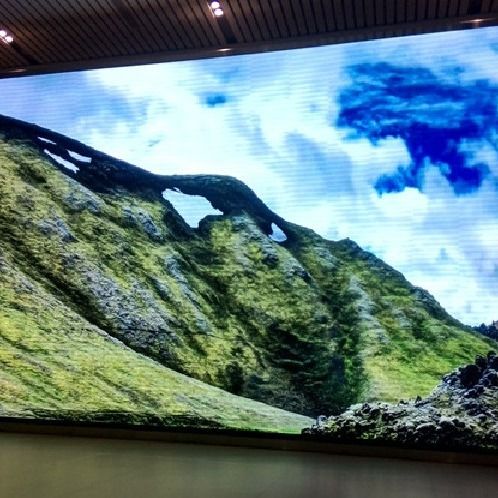

Media Video P7.62 Indoor Full Color LED Display With 244*244mm Module Size
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | TOPLED |
| Certification: | CE, ROHS, FCC, ISO9001, ISO14001 |
| Model Number: | Indoor p7.62 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case, flight case, honeycomb. |
| Delivery Time: | 15-20 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 SQM/Month |
|
Detail Information |
|||
| Brightness: | 3500cd/sqm | Scan Mode: | 1/8 |
|---|---|---|---|
| Module Size: | 244*244mm | Cabinet Size: | 732*732mm |
| Life Span: | 100000 Hours | LED Chip: | Nichia + Epistar |
| Highlight: | full color outdoor advertising led display,full color led message board |
||
Product Description
Media Video Display P7.62 Indoor Full Color LED Screen with 244*244mm Module
Product Description
1. SMD 3 IN 1 led encapsulation technology ensure wide view angle and good uniformity
2. Made with die-casting aluminum or fixed installation new cabinets,strong profiles with beautiful outlooking and durable
3. Slim and small cabinet iron and aluminium.
4. Flight case package,convenient to transport and collect,easy to move and good protection
5. Fixed installation and Rental design, easy to install and dismantle without any tools in few minutes, save much time for installation and maintainance
Specification
| Name | P7.62 |
| Pixel Pitch(mm) | 7.62 |
| Physical Density | 17,222 |
| LED Configuration | 1RGB |
| LED type | SMD3528 |
| Module Size | 244×244 |
| Module Resolution | 32×16 |
| Module Power Consumption | 30W |
| Driving Mode | Constant Current IC |
| Scanning Mode | 1/8 |
| Horizontal Viewing Angle | 140 |
| Vertical Viewing Angle | 140 |
| Brightness | 1100-1300 |
| Grey Scale | 16bit |
| Refresh Rate | ≥3840 |
| Cabinet Resolution | 96×48 |
| Cabinet Size | 732×732 |
| Cabinet Weight(kg) | 32KG |
| Cabinet Thickness | 75mm |
| Cabinet Material | Iron/Aluminum |
| Color | >16.7 |
| Input Voltage | AC 110V~220V +/-10% |
| Frame Frequency | ≥60 |
| Protection Level | IP43 |
| Working Temperature(℃) | -20° -+65° |
| Storage Humidity Range(RH) | 10%~90% |
| Life Span(H) | 100,000 hours |
Module 244*244mm
