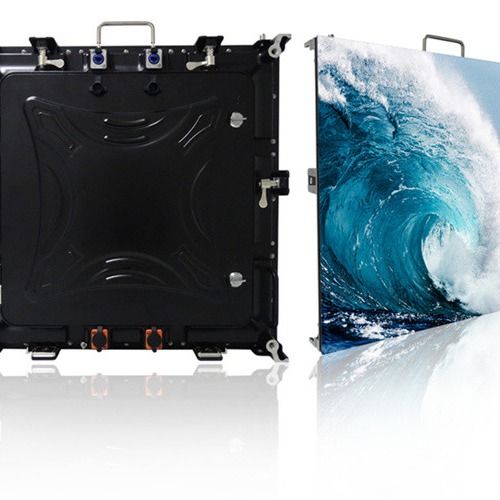

Large Viewing Angle Full Color LED Display Screen 4mm For Entertainment Bar
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | Lecede |
| Certification: | CE ROHS FCC UL ETL |
| Model Number: | K4 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case packing, flight case packing , honeycomb case |
| Delivery Time: | 15~30 days after deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 ㎡/month |
|
Detail Information |
|||
| Product Name: | Large Viewing Angle Full Color Led Display Screen 4mm For Entertainment Bar | Pixel Pitch: | 4MM |
|---|---|---|---|
| Usage: | Indoor Full Color | Pixel: | 62500dots/sqm |
| Module Size(W*H): | 256x 128 Mm | LED Lamp: | SMD 2121 Lamp |
| Brightness: | 1200 Nits | Refresh Rate: | 1920 Hz |
| Highlight: | led advertising display screen,full color led message board |
||
Product Description
Large Viewing Angle Full Color Led Display Screen 4mm For Entertainment Bar
Product Features
1. High Stability, Power Saving
2. Convenient assemble and save space
3. Soft images,green and environmental protection
4. High refresh rate, remove ghost without trailing
SPECIFICATION OF K4 Indoor Full Color LED Display Screen
| Model | K4 |
| Pixel pitch(mm) | 4 |
| Configuration | SMD 2121 lamp |
| Module dimension(mm) | 256x 128mm |
| Module weight(kg) | 0.4 |
| Cabinet dimension(mm) | 512x 512x 80mm |
| Pixel density(dots/㎡) | 62500 dots |
| Flatness error(mm) | ≤0.2 |
| Viewing angle | 140°/140°(Horizontal/Vertical) |
| Brightness(cd/㎡) | 1200 |
| Color temperature(K) | 5000~9500 (Adjustable) |
| Contrast | 5000:1 |
| Repetition frequency | 50/60Hz |
| Refresh frequency(Hz) | ≥1920 |
| Gray scale | 65536 |
| Ave. power(W/㎡) | 700 |
| Max power(W/㎡) | 350 |
| Working temp./humidity | -10~40℃/10%~80%RH |
| Storing temp./humidity | -20~60℃/10%~85%RH |
| Cabinet material | Die casting aluminum |
| Maintenance | Rear maintenance |
| Protection | IP43/IP43 |
| Driving mode | Constant current driver |
| Scanning | 1/16 S |
| Power requirements | AC90~264V, 47~63Hz |
| Life time(hrs) | 100,000 |

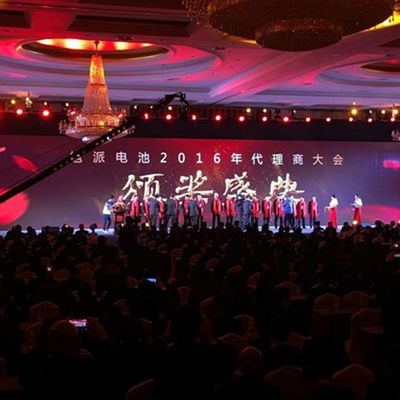

Benefits of Indoor Full Color LED Display Screen
Widely used for shopping malls, entertainment venues, schools, government agencies,
trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels,
internal, station waiting area, indoor stadium, and a variety of public facilities etc.
