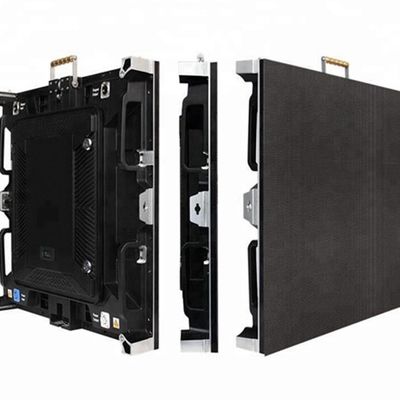

P5 Full Color Outdoor Led Display 1200 Nits Brightness High Refresh For Live Sports
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | Lecede |
| Certification: | CE ROHS FCC UL ETL |
| Model Number: | X5 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case packing, flight case packing , honeycomb case |
| Delivery Time: | 15~30 days after deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 ㎡/month |
|
Detail Information |
|||
| Product Name: | High Refresh P5 Indoor Full Color LED Display Screen For Live Sports | Average Life Span: | 100,000 Hours |
|---|---|---|---|
| Screen Dimension: | Customized | Brightness: | 1200 Nits |
| Payment Terms: | T/T,Western Union,paypal,etc | Supply Ability: | 10000sqm Per Month |
| Feature: | Full Color | Refresh Rate: | 1920Hz |
| Highlight: | led advertising display screen,full color outdoor advertising led display |
||
Product Description
High Refresh P5 Indoor Full Color LED Display Screen For Live Sports
Why choose us?
1. Higher brightness,but not that strong as of without outdoor sunshine
2. Higher pixel and definition as of smaller size and closer viewing distance
3. Portable,Lighter and more slim as of simplicity of assemble and disassemble when it comes to events or conference,etc
4. Multiple ports for camera,video cameras,TV,microphone,stereo,and even more.With VGA,HDMI,etc
Delivery Time:
1. Delivery time: Accomplish manufacturing 15-30 days after receiving the deposit.
2. Before delivery, we will test the display, and keep it light up for 72 hours, and check all the parts of the display to confirm it is Ok for delivery.
3. We can assist the training and technical support for the customer in the factory, if the customer requires so.
4. We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed company.
will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need.
| Screen Parameter | |
| Pixel Density | 40,000dots/Squre meter |
| Brightness | 1200nits |
| Luminance uniformity | >95% |
| Viewing Angle | Horizontal 120° Vertical 120° |
| Viewing Distance | 5m-55m |
| Max.Power | 800W |
| Average Power | 480W |
| Control system Parameter | |
| Grey Scale | RGB,Each color 65536 levels |
| Display Color | Supports 10bit colors: 1024*1024*1024=1073741824 kinds of colors |
| Driving Method | Static constant current 1/8 scan |
| Frame Rate | >60Hz |
| Refresh Rate | >1920Hz |
| Brightness Control | Manual Control (by PC); Automatic Control (by senor) |
| Control Mode | To be synchronized with computer monitor |
| Control Distance | Within 100m adopts UTP net cable; 100m~500m adopts Multimode Fiber; 500m~10000m adopts Single-mode Fiber (distance between PC and screen) |
| Data transmission interface | DVI and VGA |
| Input signal mode | TXT,DOC,RTF,AVI,JPEG,MOV,MPEG,DAT,VOB,BMP,JPG,TIFF,GIF,FLI,FLC,RMVB |
| Screen working parameter | |
| Input Voltage | AC110V-220V/50Hz or 60Hz |
| Defects Rate | ≤0.00001 |
| MTBF | >10,000 hours |
| Life span | ≥100,000 hours |
| Temperature-operating | -40℃~60℃ |
| Humidity-operating | 10%~95% |
Product Function
Stable performance,wide applicability, high brightness, superb performance/price ratio.
1. High brightness enables longer viewing distance and ensures the spectators far from the screen can still enjoy what is shown.
2. Superb performance/price ratio offers you both top notch quality and reasonable price, maximizing the value of your investment.
Product after service
Stable performance, wide applicability, high brightness, superb price / performance ratio.
1. High brightness enables longer viewing distance and ensures the spectators far from the screen can still enjoy what is shown.
2. Superb price / performance ratio offers both top notch quality and reasonable price, lamaximisation of the value of your investment.
Product post services
Good after-sales service
1. Two-years warranty for the entire system, except human factors and force majeure Guarantee.
2. One of the year the quality, maintenance of life, and to ensure the maintenance time in the contract.
3. The warranty period: solving problems for users through telephone, fax or email. Update the software for free.
4. As to product quality problems caused by the design, manufacturing, technology installation, equipment, replacement and maintenance are free. System damage caused by force majeure (flood, fire, earthquake, war, and so on) as well as users) artificial disturbance (construction, cleaning) should be coordinated by the two parties to résoudre.Entretien
5. Life long for the system: after the warranty, we charge only the cost of equipment.
