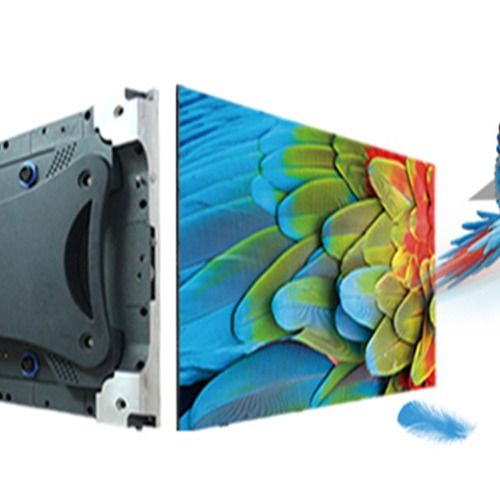

Indoor SMD P1.667 Indoor Led Display Screen 900 Nits For Shopping Centers
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | Lecede |
| Certification: | CE ROHS FCC UL ETL |
| Model Number: | X1.667 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case packing, flight case packing , honeycomb case |
| Delivery Time: | 15~30 days after deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 ㎡/month |
|
Detail Information |
|||
| Product Name: | Indoor SMD P1.667 Full Color LED Display Screen For Shopping Centers | Pixel Pitch: | 1.667MM |
|---|---|---|---|
| Usage: | Indoor Full Color | Pixel: | 360000 Dots/sqm |
| Module Size(W*H): | 200x 300 Mm | LED Lamp: | SMD 1010 Lamp |
| Brightness: | 900 Nits | Refresh Rate: | 3840 Hz |
| Highlight: | led advertising display screen,full color led message board |
||
Product Description
Indoor SMD P1.667 Full Color LED Display Screen For Shopping Centers
Product Features
1. High Stability, Power Saving
2. High Cost Performance
3. Gapless installation, wider viewing angle, good color uniformity
SPECIFICATION OF X1.667 Indoor Full Color LED Display Screen
| Model | X1.667 |
| Pixel pitch(mm) | 1.667 |
| Configuration | SMD 1010 |
| Module dimension(mm) | 200x 300mm |
| Module weight(kg) | 0.4 |
| Cabinet dimension(mm) | 400x300x120mm |
| Pixel density(dots/㎡) | 360000 dots |
| Flatness error(mm) | ≤0.2 |
| Viewing angle | 140°/140°(Horizontal/Vertical) |
| Brightness(cd/㎡) | 900 |
| Color temperature(K) | 5000~9500 (Adjustable) |
| Contrast | 4000:1 |
| Repetition frequency | 50/60Hz |
| Refresh frequency(Hz) | ≥3840 |
| Gray scale | 65536 |
| Ave. power(W/㎡) | 800 |
| Max power(W/㎡) | 250 |
| Working temp./humidity | -10~40℃/10%~80%RH |
| Storing temp./humidity | -20~60℃/10%~85%RH |
| Cabinet material | Die casting aluminum |
| Maintenance | Front/Rear maintenance |
| Protection | IP43/IP43 |
| Driving mode | Constant current driver |
| Scanning | 1/30 S |
| Power requirements | AC90~264V, 47~63Hz |
| Life time(hrs) | 100,000 |
Advantages Of X1.667 Indoor Full Color LED Display Screen
1. has high contrast ratio:5000:1. Which is a pretty high level to ensure vivid image of Led
display screen system.
2. can use the first-level Led chip. Supplied by Nicha from Japan, CREE from USA,
Nationstar from China and other high strictly selected Led chip to ensure long lifespan and high
brightness of Led display screen system.
3. easy installation and programming. Easy and simple installation interface, use
friendly software to ensure the user programme the Led display screen system.
