Outdoor Advertising High Brightness LED Display IP65 Waterproof 1920Hz Refresh Rate
Product Details:
| Place of Origin: | ShenZhen of CHINA |
| Brand Name: | TOPLED |
| Certification: | CE,ROHS,FCC |
| Model Number: | H-PH10 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |

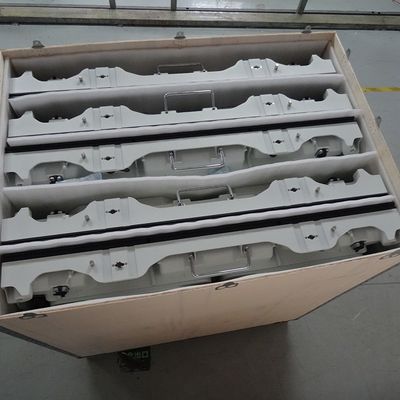

| Packaging Details: | Flight case,Honey Comb, Wooden case |
| Delivery Time: | 25days after confirmed the order |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sqm/Month |
|
Detail Information |
|||
| Tube Chip Color:: | Full Color | IP Grade: | IP65 Waterproof |
|---|---|---|---|
| AVE Power Consum: | 230W/SQM | LED Type:: | RGB 3in1 SMD3528 |
| Brightness: | 12000cd | Module Size: | 320*160mm |
| Application:: | Outdoor Advertising Led Screen | Refresh Rate:: | 1920hz |
| Highlight: | bright led display,large led display panels |
||
Product Description
Outdoor Advertising High Brightness LED Display IP65 Waterproof 1920Hz Refresh Rate
1. Product features
- The front maintaining is easy to maintain and save time.
- Ultra bright LED lamp and the best raw materials to made into plastic parts.
- Chip encapsulation uses pure golden wire to solder, red chip encapsulation uses double pure wires golden to keep stability.
- The copper silvering trestle.
- High-end specialized outdoor glue.
- Brushing black lamp with five surface and black gluing to keep the uniformity of screen.
- Plated signal and power connector.
- Pure-copper environmental flat cable,pure-copper power wire.
2. Parameter
| Name of Product | Outdoor SMD P10 Module | |
| Optical Properties | LED Encapsulation | SMD NATIONSTAR 3535 White light black shell |
| RED LED | Epistar | |
| RED LED size | 12 mil reversed polarity | |
| GREEN LED | Epistar | |
| GREEN LED size | 11*14 mil | |
| BLUE LED | Epistar | |
| BLUE LED size | 11*14 mil | |
| Horizontal Viewing Angle | ≥110(+10/-10) | |
| Vertical Viewing Angle | ≥100(+10/-10) | |
| Brightness | Max 12000 CD/㎡ | |
| Pixel Pitch | 10 mm | |
| Color Temperature | 8700K | |
| Pixel Density | 10000 Dots/㎡ | |
| Pixel configuration | 1RGB | |
| Module Resolution | 32*16=512 Dots | |
| Driving Method and IC | 1/2 scanning(constant current) MBI5124 | |
| Minimum Viewing Distance | 10m | |
| Physical Properties | Module Size | 320*160*19(mm) |
| Module Weight | 500±10g | |
| Module Level Up Degree | ≤0.2 mm | |
| Design Feature | Combined diver board | |
|
Electrical Properties
|
Input Voltage(direct current) | 4.6-5.5V |
| Maximum Current | 11.7 A | |
| Module Max Power Consumption | 59W | |
| MTBF | ≥10,000 hours | |
| Life Span | ≥100,000 hours | |
| Defects Rate | ﹤1/100000 | |
| Electrical Properties | Operating Environment | Outdoor |
| Operating Temperature Range | -20-65℃ | |
| Operating Humidity Range | 40%-60% RH | |
| Storage Temperature Range | 0-40℃ | |
| Storage Humidity Range | 30%-60% RH | |

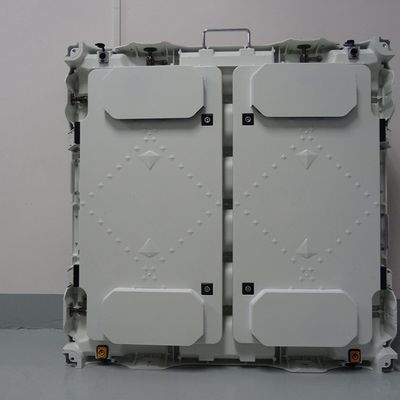

3. Die-casting alumin cabinet

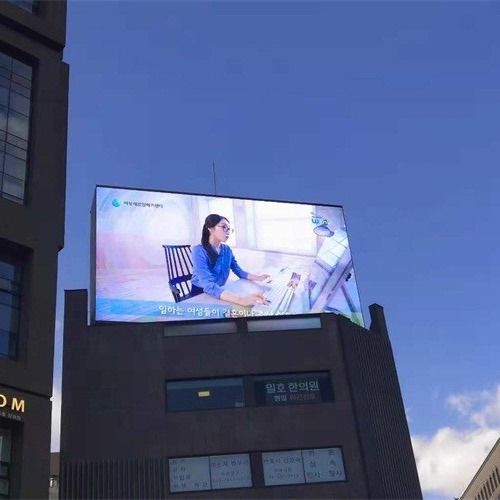

4. Projects
Welcome to visting us for further information.
