Pixel Pitch 31.25mm LED Curtain Screen IP67 Protective Long Service Life

Pixel Pitch 31.25mm LED Curtain Screen IP67 Protective Long Service Life

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: Singheng
Certification: CE RoHS UL FCC
Model Number: P31.25
Document: Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece/Pieces
Price: USD+To be negotiated+square meter | 1 Piece/Pieces (Min. Order)
Packaging Details: Plywood case
Delivery Time: About 16 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000+square meter+per month
Get Best Price Contact Now

Detail Information

Usage: Outdoor Tube Chip Color: Full Color
Pixels: 31.25mm Screen Dimension: Customized
Cabinet Material: Aluminum Best Viewing Distance: >=30m
Input Voltage: AC110/220V Lifespan: 100,000hour
Working Temperature: _40℃~+50℃ Brightness: 7000CD/㎡
Highlight:

led video curtain

,

transparent led curtain

Product Description

P30 Led Full color Led Display Screen Mesh Led Screen Advertising Display



  • Product description



1. IP67 high protection level. The concept of IP67 is soaking and waterproofing, that is, the overall immersion of the product.

2. Easy to install and easy to maintain. It is installed without steel structure and does not require air conditioning.

3. LED curtain screen is a kind of LED screen composed of light bars, also called LED light bar screen. Mainly used in outdoor walls, glass curtain walls, building tops and other fields.

4. High performance and low power consumption. The real energy saving comes from: high-brightness, high-efficiency LED lights, high conversion efficiency power supplies.

5. Highly integrated. Built-in power supply and receiving card, each unit can work independently; power and signal are plugged in one line



  • Technical parameter of P31.25 Outdoor Curtain LED



P31.25 FULL-COLOR TECHNICAL PARAMETER

Item

Parameter

Pixel Pitch

31.25mm

Pixel Density

1024dot/sqm

Pixel Configuration

4R2G2B DIP546

Module Size

250*250 mm

Module Resolution

8*8 dot

Cabinet Resolution

12*56 dot

Cabinet Size

960*1120 mm

Cabinet Material

SPCC

Viewing Distance

≥20 m

Viewing Angle (Horizontal Axis)

120°

Viewing Angle (Vertical Axis)

80°

Refresh Rate

>600Hz

Grey Scale

65536

Brightness

≥7000cd/m2

Max Power Consumption

500w/sqm

Average Power Consumption

200 w/sqm

Drive Mode

static

Signal EMC

VGA,DIV,HDMI,SDI

Signal Transmission Mode

568B

Network  Cable

≤100m, Multimode

Control Distance

optical fiber≤500m, Single mode optical

fiber

≤20 kilometer

Lifespan

≥10,0000 h

Waterproof Grade

Outdoor Use Only

Input Voltage

AC220V±10%  50-60HZ

Celsius

Degree:—10℃-40℃

humidity:10

10—85%RH



  • FAQ



Q1: What pixel pitch should I choose on my display?
A: Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the
desired effect and the customer budget. It is generally believed that P5 is suitable for watching outside 5
meters, P10 is suitable for watching outside 10 meters, and P16 is suitable for watching outside 16 meters, and the other is the same. Of course, this data is not very accurate, and the customer just can refer to it. It also depends on the size of the screen, generally it is considered that more than 100 thousand pixels for a full color display then have a standard effect.



Q2: LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A: P2 P3 P4.....P8,P10 means that the pixel pitch is 2mm 3mm 4mm....8mm,10mm, which determines the number of pixels per unit area of a display, so it represents the clarity of the display.The smaller the pitch, the higher the clarity. Usually, the models of indoor full color display are: P1.667, P1.875, P2.5, P3, P4, P5, P6, P7.62, P10. Outdoor full color display are P4, P5, P6, P7, P8, P10, P16, P20, P25, P31.25 etc.



Q3: How to install?

A: Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging. We can also send our engineers to the site to guide the installation.



Q4: What about your quality?
A: The quality of our display is excellent. We use the materials of high quality suppliers in the world,
strictly control the production process, and pass the multiple quality inspection to ensure that every
product is qualified.



Q5: To order a display ,What kind of information do I have to offer you?

A: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations. Sometimes you should also provide information such as display orientation, geographical location, local climate, and so on.

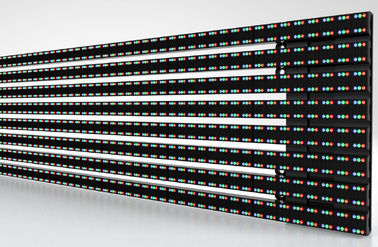

  • Product Picture
