Super Large P20 Led Curtain 48*56 Dots Cabinet Resolution Easily Installed
Product Details:
| Place of Origin: | China (Mainland) |
| Brand Name: | Singheng |
| Certification: | CE RoHS UL Certifications |
| Model Number: | P20 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 square meter |
|---|---|
| Price: | USD+To be negotiated+square meter |
| Packaging Details: | Plywood case |
| Delivery Time: | About 16 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000+square meter+per month |
|
Detail Information |
|||
| Application: | Video | Pixel Pitch: | 20 Mm |
|---|---|---|---|
| Pixel Density: | 2500dots/sqm | Pixel Configuration: | 1R1G1B DIP346 |
| Viewing Angle (Horizontal Axis): | 120° | Viewing Angle (Vertical Axis): | 80° |
| Cabinet Resolution: | 48*56 Dots | Cabinet Size: | 960*1120 Mm |
| Material: | Aluminum | Grey Scale: | 16.7M Colors |
| Highlight: | led curtain wall display,transparent led curtain |
||
Product Description
P20 Led Curtain Wall Display Led Mesh Screen Outdoor Led Curtain Display Price
- Product Description
1. We have the most competitive prices based on all good material we use . Our quality is very repliable and we win very good reputation in the market.
2. It is suitable for the construction of super large outdoor display, which is the first choice for creating landmark dynamic display landscape.
3. Also known as LED light bar screen, LED grid screen, LED glass curtain wall display, LED strip screen, LED shaped screen.
4. IP67 high protection level. The concept of IP67 is soaking and waterproofing, that is, the overall immersion of the product.
5. Easy to install and easy to maintain.Led curtain display is installed without steel structure and does not require air conditioning.

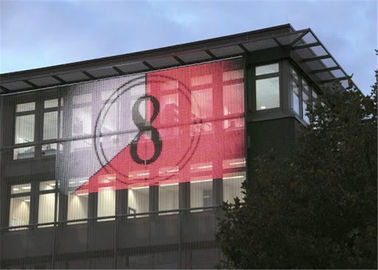

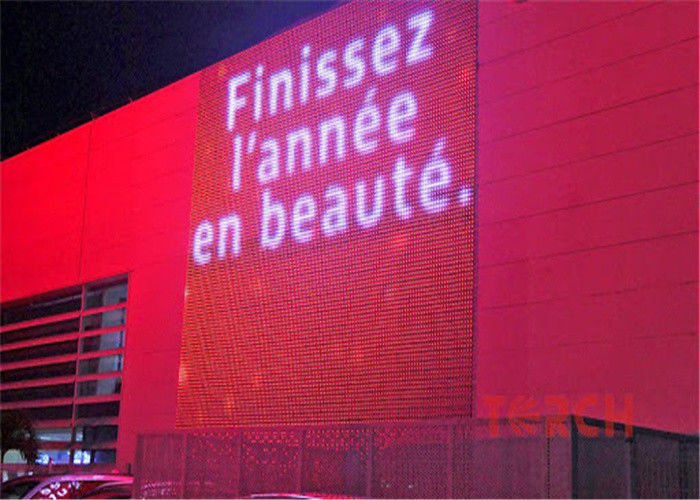

6. Led mesh screen outdoor is a kind of LED screen composed of light bars, also called LED light bar screen. Mainly used in outdoor walls, glass curtain walls, building tops and other fields.
7. Outdoor screen curtains breaks through the limitation of conventional LED display to the building and wall ,making the project more flexible and more selective.
- Technical parameters of P20 Led Curtain Wall Display
| Item | Parameter |
| Pixel Pitch | 20 mm |
| Pixel Density | 2500dots/sqm |
| Pixel Configuration | 1R1G1B DIP346 |
| Module Size | 320*160 mm |
| Module Resolution | 16*8 dots |
| Cabinet Resolution | 48*56 dots |
| Cabinet Size | 960*1120 mm |
| Viewing Distance | ≥20 m |
| Viewing Angle (Horizontal Axis) | 120° |
| Viewing Angle (Vertical Axis) | 80° |
| Refresh Rate | >1920Hz |
| Grey Scale | 65536 |
| Brightness | ≥8000cd/sqm |
| Max Power Consumption | 700 w/sqm |
| Average Power Consumption | 2500 w/sqm |
| Drive Mode | static Scan |
| Signal EMC | VGA,DIV,HDMI,SDI |
| Signal Transmission Mode | 568B |
| Network Cable | ≤100m, Multimode |
| Control Distance | optical fiber≤500m, Single mode optical |
| fiber | ≤20 kilometer |
| Lifespan | ≥10,0000 h |
| Waterproof Grade | IP 65 |
| Input Voltage | AC220V±10% 50~60HZ |
| Celsius | Degree:-10℃~40℃ |
| Humidity | 10~85%RH |
- FAQ
Q1: To order a display, what information should l offer you?
A: You should provide width and height of the display, the main usage, the viewing distance, the scene photo and special requirements, then I can provide you a quotation. Sometimes you should also provide information such as geographical location, local climate.
Q2: How to install?
A: Free of charge to provide detailed steel structure drawings and installation guidance, wiring diagram and free remote debugging .We can also send our engineers to the site to guide the installation.
Q3: How about your quality?
A: The quality of our display is excellent. We use the materials of high quality suppliers, strictly control the production process. and pass the multiple quality inspection to ensure every product is qualified.
