Low Wind Load P16 LED Curtain Screen Static Scan Drive Mode Energy Saving
Product Details:
| Place of Origin: | China (Mainland) |
| Brand Name: | Singheng |
| Certification: | CE RoHS UL FCC |
| Model Number: | P16 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 square meter |
|---|---|
| Price: | USD+To be negotiated+square meter |
| Packaging Details: | Plywood case |
| Delivery Time: | About 16 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000+square meter+per month |
|
Detail Information |
|||
| Application: | Video | Pixel Pitch: | 15.625 Mm |
|---|---|---|---|
| Pixel Density: | 4096 Dots/sqm | Pixel Configuration: | 1R1G1B DIP346 |
| Module Size: | 256*128 Mm | Module Resolution: | 16*8dot |
| Weight: | 25KG/sqm | LED Brand: | EPISTAR |
| Drive Mode: | Static Scan | Grey Scale: | 16.7M Colors |
| Highlight: | led curtain wall display,transparent led curtain |
||
Product Description
Led Backdrop Curtain Led Mesh Screen P16 Outdoor Led Curtain Display
- Product Description
1. Light weight and low wind load. The light weight is due to the screen grid, which makes the LED display transparent, so its wind load capacity is extremely strong.
2. High performance and low power consumption. The real energy saving comes from: high-brightness, high-efficiency LED lights, high conversion efficiency power supplies.
3. Highly integrated. Built-in power supply and receiving card, each unit can work independently; power and signal are plugged in one line
4. IP67 high protection level. The concept of IP67 is soaking and waterproofing, that is, the overall immersion of the product.
5. Easy to install and easy to maintain.Led mesh screen is installed without steel structure and does not require air conditioning.

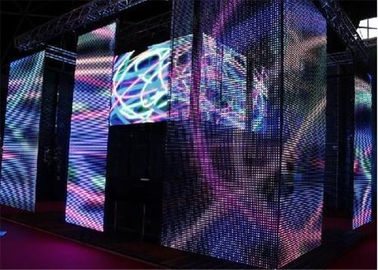

6. Led backdrop curtain is a kind of LED screen composed of light bars, also called LED light bar screen. Mainly used in outdoor walls, glass curtain walls, building tops and other fields.
- Technical parameters of P16 Outdoor Led Curtain Display
| Item | Product parameter |
| Pixel Pitch | 15.625mm |
| Pixel Density | 4096 dots/sqm |
| Pixel configuration | 2R1G |
| Module Size | 256*128 mm |
| LED brand | Taiwai EPISTAR |
| Cabinet type | Open |
| Module Resolution | 16*8dot |
| Weight | 25KG/sqm |
| Viewing Distance | ≥20m |
| Viewing Angle (Horizontal Axis) | 120° |
| Viewing Angle (Vertical Axis) | 80° |
| Refresh Rate | >1920Hz |
| Grey Scale | 65536 |
| Brightness | ≥8000cd/sqm |
| Max Power Consumption | 1070w/sqm |
| Average Power Consumption | 440w/sqm |
| Drive Mode | Static scan |
| Signal EMC | VGA,DIV,HDMI,SDI |
| Lifespan | ≥10,0000 h |
| Waterproof Grade | IP65 |
| Input Voltage | AC105-235V 50~60HZ |
| Celsius | -40℃~40℃ |
| humidity | 10~85%RH |
| Control Distance | Network Cable≤100m, Multimode optical fiber≤500m, Single mode optical≤20 kilometer |
- FAQ
Q3: To order a display, what information should l offer you?
A: You should provide width and height of the display, the main usage, the viewing distance, the scene photo and special requirements, then I can provide you a quotation. Sometimes you should also provide information such as geographical location, local climate.
Q2: What pixel pitch should I choose on my display?
A: Using the PX screen, it is determined mainly by the viewing distance, the size of the screen, the desired effect and the customer budget. It is generally believed that P5 is suitable for watching outside 5 meters. P10 is suitable for watching outside 10 meters. Of course, this data is not very accurate, and the customer can just refer to it. It also depends on the size of the screen, generally it is considered that more than 100 thousand pixels for a full color display then have a standard effect.
Q6: What about the warranty?
A: Three year warranty.
Q7: What about the lead time?
A: Orders less than 50 square meters display ,lead time is 16 days.
