Custom Led Stage Backdrop Screen , Led Advertising Board 31.25mm Pixel Pitch
Product Details:
| Place of Origin: | China (Mainland) |
| Brand Name: | Singheng |
| Certification: | CE RoHS UL FCC |
| Model Number: | P31 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 square meter |
|---|---|
| Price: | USD+To be negotiated+square meter |
| Packaging Details: | Plywood case |
| Delivery Time: | About 16 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000+square meter+per month |
|
Detail Information |
|||
| Application: | Video | Pixel Pitch: | 31.25 Mm |
|---|---|---|---|
| Pixel Density: | 1024dots/sqm | Pixel Configuration: | 1R1G1B DIP346 |
| Viewing Distance: | ≥31 M | Viewing Angle (Horizontal Axis): | 120° |
| Viewing Angle (Vertical Axis): | 80° | Lifespan: | ≥10,0000 H |
| Material: | Aluminum | Input Voltage: | AC220V±10% 50~60HZ |
| Highlight: | led curtain wall display,transparent led curtain |
||
Product Description

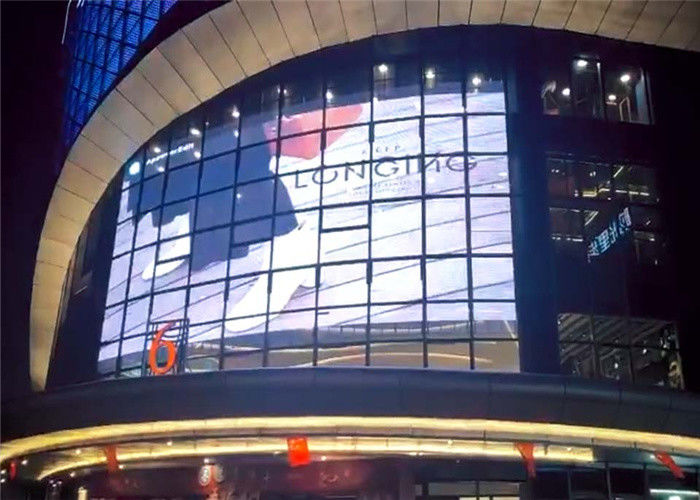

Led Curtain Wall P31 Led Curtain Stage Backdrop Outdoor Custom Led Curtain
- Product Description
1. The Led curtain wall brightness is high , can be over 6000 nits or higher , no problem at all even under direct sunlight .
2. We have the most competitive prices based on all good material we use . Our quality is very repliable and we win very good reputation in the market.
3. Light weight and low wind load. The light weight is due to the screen grid, which makes the LED display transparent, so its wind load capacity is extremely strong.
4. It is suitable for the construction of super large outdoor display, which is the first choice for creating landmark dynamic display landscape.
5. Also known as LED light bar screen, LED grid screen, LED glass curtain wall display, LED strip screen, LED shaped screen.
- Technical parameters of P31 Led Curtain Stage Backdrop
| Item | Parameter |
| Pixel Pitch | 31.25 mm |
| Pixel Density | 1024dots/sqm |
| Pixel Configuration | 1R1G1B DIP346 |
| Module Size | 320*160 mm |
| Module Resolution | 10*5 dots |
| Cabinet Resolution | 31*36 dots |
| Cabinet Size | 960*1120 mm |
| Viewing Distance | ≥31 m |
| Viewing Angle (Horizontal Axis) | 120° |
| Viewing Angle (Vertical Axis) | 80° |
| Refresh Rate | >1920Hz |
| Grey Scale | 65536 |
| Brightness | ≥8000cd/sqm |
| Max Power Consumption | 700 w/sqm |
| Average Power Consumption | 2500 w/sqm |
| Drive Mode | static |
| Signal EMC | VGA,DIV,HDMI,SDI |
| Signal Transmission Mode | 568B |
| Network Cable | ≤100m, Multimode |
| Control Distance | optical fiber≤500m, Single mode optical |
| fiber | ≤20 kilometer |
| Lifespan | ≥10,0000 h |
| Waterproof Grade | IP 65 |
| Input Voltage | AC220V±10% 50~60HZ |
| Celsius | Degree:-10℃~40℃ |
| Humidity | 10~85%RH |
- FAQ
Q1: To order a display, what information should l offer you?
A: You should provide width and height of the display, the main usage, the viewing distance, the scene photo and special requirements, then I can provide you a quotation. Sometimes you should also provide information such as geographical location, local climate.
Q2: What pixel pitch should I choose on my display?
A: Using the PX screen, it is determined mainly by the viewing distance, the size of the screen, the desired effect and the customer budget. It is generally believed that P5 is suitable for watching outside 5 meters. P10 is suitable for watching outside 10 meters. Of course, this data is not very accurate, and the customer can just refer to it. It also depends on the size of the screen, generally it is considered that more than 100 thousand pixels for a full color display then have a standard effect.
Q3: Can I order a sample?
A: Yes.We welcome customers to order sample to check the quality and service.
Q4: Is it OK to print my LOGO on your product?
A: Yes.We support OEM and ODM service.
Q5: How long is the transportation time?
A: Shipping:20-30 days.Airlift:3-7 days
