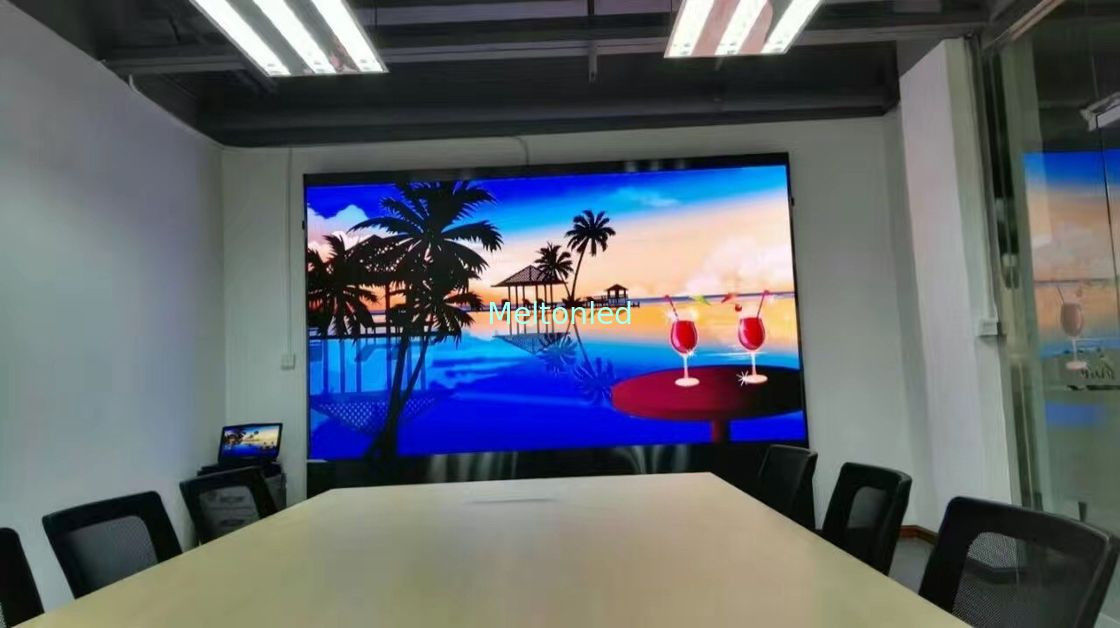

Curved P3 Full Color LED Video Display , Indoor LED Video Wall For Conference
Product Details:
| Place of Origin: | China |
| Brand Name: | TOPLED |
| Certification: | CE ROSH FCC |
| Model Number: | P3 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Woden case/Carton box/Flight case |
| Delivery Time: | 10-25 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 per month |
|
Detail Information |
|||
| Pixel Pitch(mm): | P3 | LED Configuration: | 1R1G1B |
|---|---|---|---|
| Module Size(mm): | Customize | Module Resolution: | Customize Pixel |
| Grey Scale: | 14-16bit | Refresh Rate(HZ): | 3840HZ |
| Panel Power Consumption(W): | 200-800W | Display Function: | Video |
| Highlight: | led wall panels,led video wall display |
||
Product Description
Curved Indoor P3 led video wall HD Full Color LED Display Screen Video for confrence
Pixel/Module
| No | Item | Parameter |
| 1 | Pixel Pitch | 3mm |
| 2 | Pixel Configuration | 1R1G1B / R:G:B=3:6:1 |
| 3 | LED Lamp | Full color |
| 4 | Density | 111111dot/m2 |
| 5 | Module Size | 192*192mm |
| 6 | Module Pixel | 64*64=4096dot |
| 7 | Module Thickness | 15mm |
| 8 | Module Weight | 154g |
| 9 | Module Power | ≤13W |
| 10 | Drive Voltage | DC5V |
| 11 | Module Electric Current | 1.5-2.5A |
| 12 | Port Type |
HUB-3.0D/B
|
Screen Parameters
| Module | |||
| Technical Items | Unit | Values | |
| Pixel pitch | mm | 3 | |
| LED Lamp | SMD | SMD2121 | |
| Module size | mm | L192*H192*T13 | |
| Pixels density | /m2 | 111111 | |
| Pixel resolution | dots | 64x64=4096 | |
| Pixel configuration | R/G/B | 1,1,1 | |
| Drive type | Constant current | ||
| Scan mode | 1/32 scan | ||
| Port type | HUB75 | ||
| Module weight | KG | 0.35 | |
| Module working voltage | 220VAC±15% | ||
| Module Max.Consumption | W | ≤ 20 | |
| Display screen | |||
| Viewing angle | Deg. | 120o | |
| Best viewing distance | m | 3-45 | |
| Drive device | 2016/5020/20167 | ||
| Module number per squire meter | PCS | 27.13 | |
| Maximum power Consumption | W/ M2 | 1100 | |
| Frame Frequency | HZ | ≥60 | |
| Refresh frequency | HZ | ≥2000 | |
| Brightness of white balance | CD/m2 | ≥1200 | |
| Working environment temperature | 0C | -10~60 | |
| Working environment humidity | RH | 10%~70% | |
| Display working voltage | VAC | AC46~54HZ,220V±15%/110V±15% | |
| Colour temperature | 9500K-11500K | ||
| Gray degree | ≥16.7M | ||
| Input signal | RF S-Video RGB etc | ||
| Control system | PCTV non-linearity card,DVI display card,Linsn control system | ||
| Mean free error time | Hours | >5000 | |
| Lifetime | Hours | 100000 | |
| Lamp failure frequency | <0.0001 | ||
| Anti-jamming | IEC801 | ||
| Safety | GB4793 | ||
| Resist the electricity | No breakdown by 1500V last 1min | ||
| Weight | KG/ M2 | 40(standard steel box) | |
| IP Grade | The back IP40,The front IP50 | ||
| Steel box size | mm | L576 x W576 x 80 |
|
