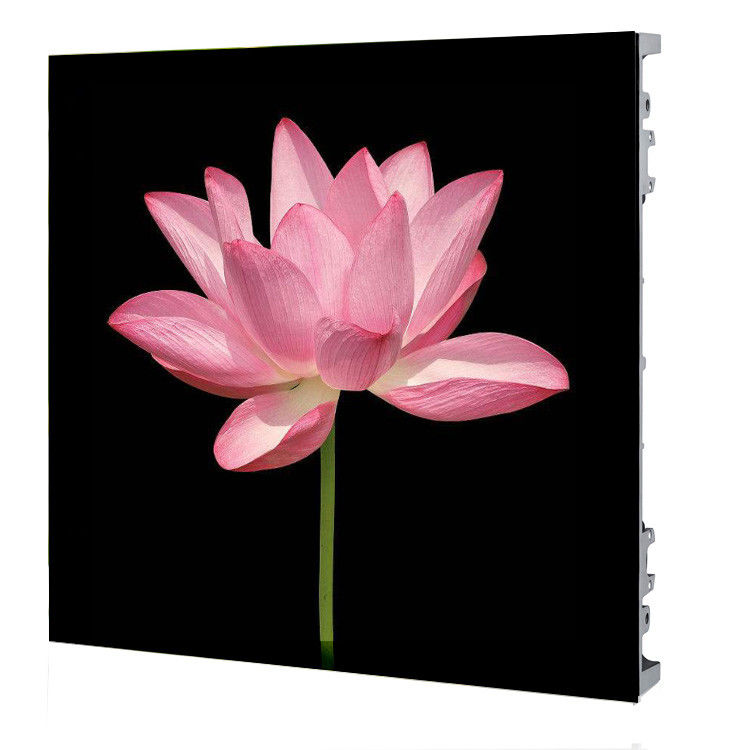

SMD P2.9 Indoor Small Pixel Pitch LED Display Large Viewing Angle 1920 / 2880 / 3840Hz
Product Details:
| Place of Origin: | China |
| Brand Name: | TOPLED |
| Certification: | CE ROSH FCC |
| Model Number: | P2.5 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Woden case/Carton box/Flight case |
| Delivery Time: | 10-25 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 per month |
|
Detail Information |
|||
| Pixel Pitch(mm): | P1.25-P10 Available | Module Size(mm): | Customize |
|---|---|---|---|
| Grey Scale: | 14-16bit | Refresh Rate(HZ): | 1920/2880/3840HZ |
| Panel Resolution: | Customize | Panel Power Consumption(W): | 200-750W |
| Highlight: | small pixel led display,hd led display |
||
Product Description
SMD P2.9 Indoor Small Pixel Pitch LED Display Large Viewing Angle 1920 / 2880 / 3840Hz
Features of SMD P2.976 indoor led large screen display/ led screen /rental led display:
1. High quality LED chip and high anti-static electricity capacity.
2. Large viewing angle and smooth displaying provide excellent visual effect from every angle.
3. The integration of lamp and driving IC,together with with the multi-circuit structure,achievs evenly-distributed current,low power consumption and fast heat dissipation.
4. Ultra high brightness,low attenuation,high reliability and weather ability.
5. High contrast ratio.Adopting black lamps can improve the contrast ratio by 50%.
6. High refresh rate,high gray scale,ghost-canceling,low power consumption,low EMI,anti-creeping,multi-route redundancy backup-supporting,and dot-by-dot-calibration.
Application scopes of SMD P2.976 indoor led large screen display/ led screen /rental led display : Widely applied to traffic information distribution of station, quay and airport, conference, shoppingmall, brand presentantion, TVstation, stageshow, concert and so on.
Parameter of SMD P2.976 indoor led large screen display/ led screen /rental led display:
| Pixel Pitch | PH2.976mm |
| Module Resolution(W*H) | 168dots(W)*168dots(H) |
| Pixel Configuration | 1R1G1B(3 in 1) |
| LED Encapsulation | Black SMD 1514 |
| Pixel Density | 112903Pixel /m2 |
| Driving Method | 1/14Scan |
| Refresh Frequency | ≥2880Hz |
| Driver IC | Special constant current IC with high refresh rate & high gray scale |
| Grey Scale | 14Bit(depending on the system and IC configuration) |
| Cabinet Size | 500*500mm |
| White balance Brightness | ≥900cd/ m2 |
| Color Temperature | 8000K±500(adjustable) |
| Viewing Angle | Horizontal 140°Vetical 120° |
| Optimal Viewing Distance | >4.61m |
| Working Voltage | AC 220V/110V±10% |
| Module voltage | DC4.2V |
| Max Power Consumption | 600W/sqm |
| Avg. Power Consumption | 300W/sqm |
| Lifetime | 50000 hours |
| Operating Temperature | –10~ 65 |
| Net weight | 8Kg/pcs |
Lead Time:Delivery in 10-25 working days.
