1R1G1B P2.4 Small Pixel Pitch Indoor Led Display Screen Commercial Advertising Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | TOPLED |
| Certification: | CE ROSH FCC |
| Model Number: | P2.4 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Woden case/Carton box/Flight case |
| Delivery Time: | 10-25 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 per month |
|
Detail Information |
|||
| Pixel Pitch(mm): | P1.25-P10 Available | LED Configuration: | 1R1G1B |
|---|---|---|---|
| Grey Scale: | 14-16bit | Refresh Rate(HZ): | 1920/2880/3840HZ |
| Panel Resolution: | Customize | Panel Power Consumption(W): | 200-750W |
| Highlight: | small pixel led display,hd led display |
||
Product Description

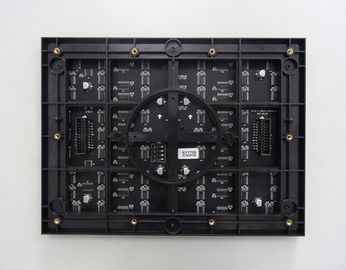

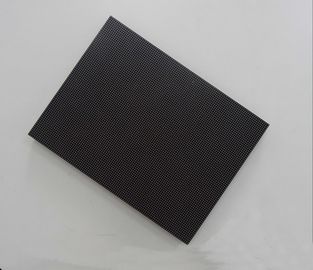

1R1G1B P2.4 Small Pixel Pitch Indoor Led Display Screen Commercial Advertising Panel
| Model | P2.4-25S indoor |
| Led Encapsulation | SMD1515 Black Light |
| Pixel Pitch | 2.4 mm |
| Pixel Configuration | RGB |
| Module Size | 240*180mm |
| Module Resolution rate | 100*75 |
| Pixel Density | 173611 dots/m2 |
| Cabinet Size | 480*540mm |
| Cabinet Weight | 8.5KG |
| Input Signal | DVI,VGA,RF,SDI,S-VIDEO,RGB,RGBHV,YUV,YC ,Compasite |
| Driving Method | 1/25 scan |
| Driving IC | ICN2053 |
| Power | Power LD 4.5V40A |
| Control Distance | Network Cable 100m,single mode fiber cable 10KM |
| Brightness | 400-1200 cd/m² |
| Refresh Rate | ≥2880HZ |
| View Angle | H:140,V:100 |
| Max.Powder Consumption | 550W/m² |
| Average Powder Consumption | 180W/m² |
| Best Viewing Distance | ≥4M |
| Working Voltage | DC5V |
| Color Processing Ability | 14 Bit |
| Protection Level | IP65 |
| Working Environment | indoor |
| Working Temperature | - 20℃ ~ +50℃ |
| Working Humidity | 40% to 60% |
| Cabinet Material |
Die Cast Aluminum |
Lead Time:Delivery in 10-25 working days.
