P1.25 Led Display Modules Indoor Video Wall Mount HD Small Pitch Fixed Installation
Product Details:
| Place of Origin: | China |
| Brand Name: | TOPLED |
| Certification: | CE ROSH FCC |
| Model Number: | P1.25 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Woden case/Carton box/Flight case |
| Delivery Time: | 10-25 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 per month |
|
Detail Information |
|||
| Pixel Pitch(mm): | P1.25-P10 Available | LED Configuration: | 1R1G1B |
|---|---|---|---|
| Module Resolution: | Customize Pixel | Grey Scale: | 14-16bit |
| Refresh Rate(HZ): | 1920/2880/3840HZ | Panel Power Consumption(W): | 200-750W |
| Highlight: | small pixel led display,hd led display |
||
Product Description

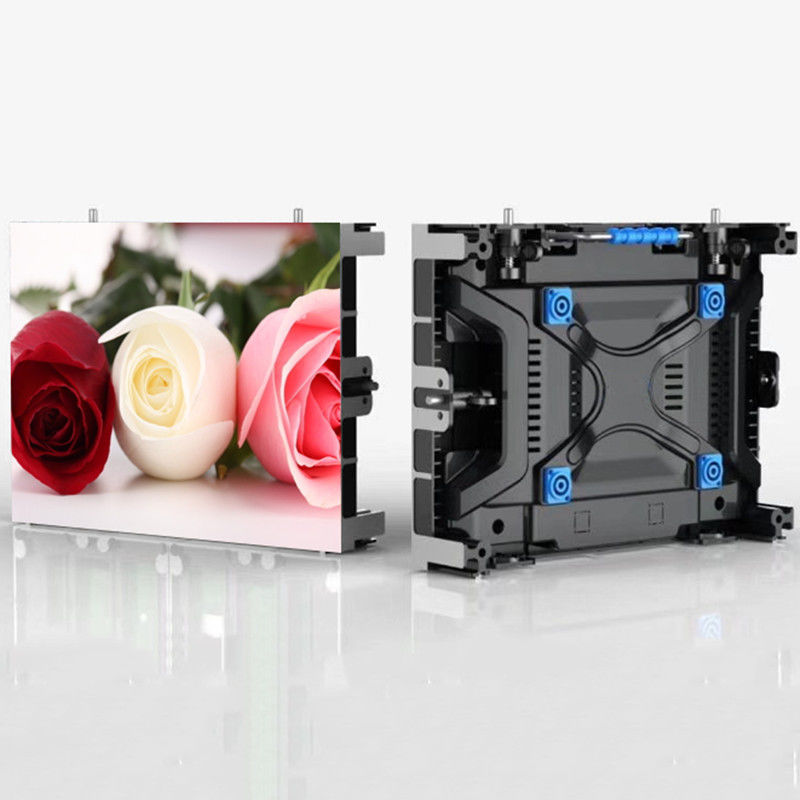

HD small pitch fixed installation P1.25 led display modules Indoor Video wall mount LED Panel Displays
Product Specification:
| Indoor P1.25 LED Display | |
| Model number | P1.25 |
| Pixel pitch | 1.25mm |
| Module resolution | 160*120 dots |
| Module size | 200mm*150mm |
| Cabinet size | 200mm*150mm |
| Pixel density | 640000dots/sqm |
| LED configuration | SMD 1R1G1B |
| Module weight | 0.4kg |
| Average consumption | 600w/sqm |
| Best view distance | 1.5m~200m |
| View angle | 120º |
| Brightness | ≥1000cd/sqm |
| Scanning | 1/20scan |
| Refresh rate | ≥2680Hz |
| Frame frequency | ≥360Hz |
| Max power consumption | 800w/sqm |
| Warranty | 3years |
| Working voltage | 220VAC/50Hz±10% |
| Life span | 100000hours |
| Lifetime to 50% brightness | 100000hours |
| Working temperature | –20℃ to +60℃ |
SMD1010, Module Size:200*150mm
About Our Product:
1. Indoor p1.25 smd led display module is manufactured by using best quality material.
2. High refresh rate without flicker and distortion.
3. The final products are supreme quality and offers best outputs.
4. Light weight and easy to install
5. Single-lamp maintenance with low cost.
Lead Time:Delivery in 10-25 working days.
