60*45 Dots Resolution Small Pixel Pitch LED Display P2 Indoor Full Color Video Screen
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | TOPLED |
| Certification: | CE, ROHS, FCC, ISO9001, ISO14001 |
| Model Number: | Indoor p2 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case, flight case, honeycomb. |
| Delivery Time: | 15-20 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 SQM/Month |
|
Detail Information |
|||
| Brightness: | 400-1000 | Scan Method: | 1/30 |
|---|---|---|---|
| Module Resolution: | 60*45dots | Module Size: | 120*90mm |
| Cabinet Size: | 480*540mm | Usage: | Video |
| Control System: | Nova Card | Physical Density: | 250,000 |
| Highlight: | small pixel led display,hd led display |
||
Product Description
120*90 Dots Indoor High Resolution P2 Small Pixel Pitch LED Display

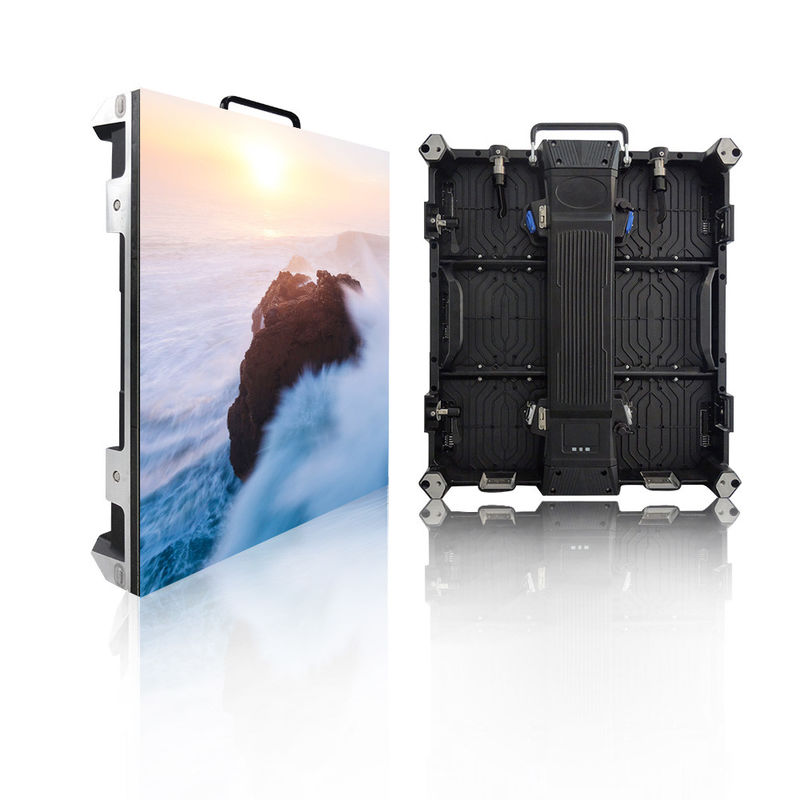

Hot sale HD indoor p2 led display screen with die-casting aluminum cabinet
Features:
1. IC: By using high-end PWM chip ICN2053 to guarantee 16 gray-scale levels and refreshing of 3840HZ. Moreover, it can make the video more vivid and smooth.
2. Eliminating-shadow-line IC can completely clear off shadow in situations where current open or close.
3. By using Sn62.8/Pb36.8/Ag0.4 to improve stability of the soldered dots and reduce defects rate.
4. By using special PCB board to keep the uniformity of the module.
Specification
| Name | Parameter |
| Pixel Pitch(mm) | 2mm |
| Physical Density | 250,000 |
| LED Configuration | 1RGB |
| LED type | SMD1515 |
| Module Size | 120×90 |
| Module Resolution | 60×45 |
| Module Power Consumption | 27W |
| Driving Mode | Constant Current IC |
| Scanning Mode | 1/30 |
| Horizontal Viewing Angle | 140 |
| Vertical Viewing Angle | 140 |
| Brightness | 1200 |
| Grey Scale | 16bit |
| Refresh Rate | >3840 |
| Cabinet Resolution | 240×270 |
| Cabinet Max Consumption | 160 |
| Cabinet Average Power Consumption | 50 |
| Cabinet Size | 480×540 |
| Cabinet Weight(kg) | 8kg |
| Cabinet Thickness | 85mm |
| Cabinet Material | Iron/Aluminum |
| Color | >16.7 |
| Input Voltage | AC 110V~220V +/-10% |
| Frame Frequency | 60 |
| Protection Level | IP43 |
| Working Temperature(℃) | -40° -+65° |
| Storage Humidity Range(RH) | 10%~90% |
