High Definition P1.875 Small Pixel Pitch LED Display 80mm Cabinet Thickness
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | TOPLED |
| Certification: | CE, ROHS, FCC, ISO9001, ISO14001 |
| Model Number: | Indoor p1.875 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case, flight case, honeycomb. |
| Delivery Time: | 15-20 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 SQM/Month |
|
Detail Information |
|||
| Pixels: | 1.875mm | LED Chip: | Cree + Silan |
|---|---|---|---|
| Scan Mode: | 1/32 | Refresh Rate: | 3840 |
| Cabinet Thickness: | 80mm | LED Type: | SMD1515 |
| Highlight: | fine pitch led display,small pixel led display |
||
Product Description

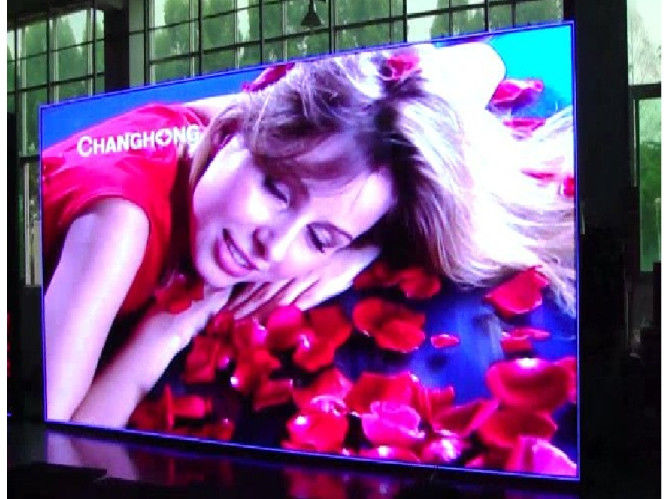

High Definition Video Indoor P1.875 Small Pixel Pitch LED Display Screen
Product Description
1. Gorgeous Picture: Non-reflective screen, which brings better viewing experience.
2. Perfect Image: Our products use special IC for LED which owns high refresh rate and achieves no shadows
3. Light Weight: The body uses aluminum profile stitching weighing 5-8kg, which is light and non- corrosive.
4. Elegant Appearance: We adopt CNC processing technique to produce standard module and cabinet which can easily do seamless assemble.
5. Standard Size: We use professional buckles and standard modular panels which can snap together easily.
Specification
| Name | P1.875 |
| Pixel Pitch(mm) | 1.875 |
| Physical Density | 284,444 |
| LED Configuration | 1RGB |
| LED type | SMD1515 |
| Module Size | 240×180 |
| Module Resolution | 128×96 |
| Module Power Consumption | 18W |
| Driving Mode | Constant Current IC |
| Scanning Mode | 1/32 |
| Horizontal Viewing Angle | 140 |
| Vertical Viewing Angle | 120 |
| Brightness | 1500 |
| Grey Scale | 16bit |
| Refresh Rate | ≥3840 |
| Cabinet Resolution | 256×288 |
| Cabinet Max Consumption | 180 |
| Cabinet Average Power Consumption | 60 |
| Cabinet Size | 480×540 |
| Cabinet Weight(kg) | 8.8KG |
| Cabinet Thickness | 80mm |
| Cabinet Material | Die-casting Aluminum |
| Color | >16.7 |
| Input Voltage | AC 110V~220V +/-10% |
| Frame Frequency | ≥60 |
| Protection Level | IP43 |
| Working Temperature(℃) | -40° -+65° |
| Storage Humidity Range(RH) | 40%~60% |
| Life Span(H) | 100,000 hours |
