Indoor 3D Effect P2.5 High Brightness LED Display 160000 Dots Pixel Density
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | TOPLED |
| Certification: | CE,ROHS,FCC |
| Model Number: | H-P2.5 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Flight case,Honey Comb, Wooden case |
| Delivery Time: | 25days after confirmed the order |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sqm/Month |
|
Detail Information |
|||
| Display Function: | Video | Module Size: | 160*160mm |
|---|---|---|---|
| Pixel Density: | 160000dots | Drive Type: | 1/32 Scan |
| Refresh Rate: | >3840Hz | Screen Dimension: | Customized Size |
| Brightness: | 3000-5000nits | Application: | Conference,Meeting,Events,Stage Performance |
| Highlight: | bright led display,large led display panels |
||
Product Description

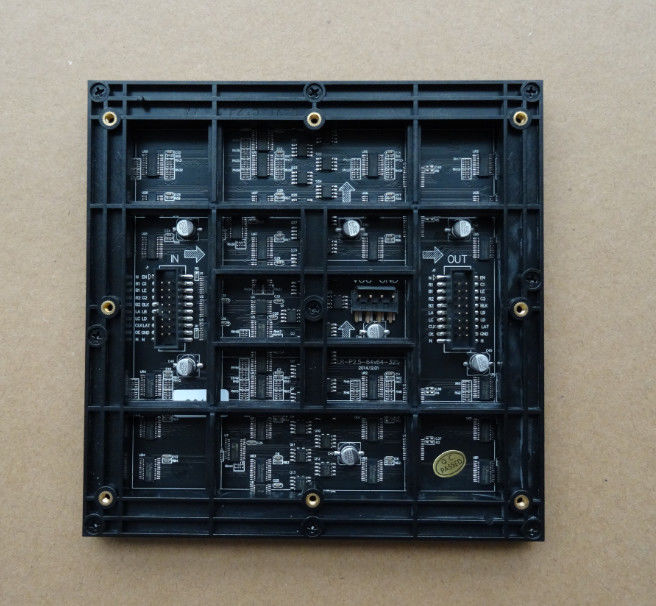

Indoor 3D effect P2.5 LED Video Module High brightness Led Display
Features:
- High-precision simple ultra-practical model design,KN-light SMD1818 Chip, single box around the connection of two sets of high-strength high-precision edge locks to ensure that the bottom of the box by the force stability, even if the platform is not flat, the bottom of the box stress design can ensure the entire screen structure Fast, smooth. Anti-collision at the bottom of the box anti-squeeze design to avoid the bottom of the screen body module due to bearing damage. Module magnet adsorption installation can be achieved front and rear maintenance.
- 160*160mm Module size design,indoor and outdoor common cabinet design,Using high-end large chip light, to achieve ultra-high contrast, high gray, 1000 ~ 3000CD brightness adjustable to meet indoor and outdoor scenes, non-destructive refresh and grayscale.
- With high precision PWM , constant driving IC MBI5124,perfectly achieve 14bits gray level to ensure the low gray and high refresh rate conductivity,especially to garette the constant color temperature during the changed lights,make sure the image and video vivid while high and low brighten.
- High quality plastic parts, with spray snap-on cover,to ensure the best effect at the dark screen and light screen.
Parameters:
| Items | Technical parameters | |
| Module Parameters |
Pixel Configuration |
3in1 LED |
| Pixel Pitch (mm) | 2.5 | |
|
Module Resolution (W*H) |
64*64 | |
|
Module Size |
160*160 | |
| Weight(kg) | 0.35 | |
| Max Power(W) | 12W | |
| Cabinet Configuration | Cabinet Configuration(W*H) | 3*3 |
| Cabinet Resolution (W*H) | 192*192 | |
| Cabinet Size(mm) | 480(W)*480(H)* 65(D) | |
| Cabinet Square meter(㎡) | 0.2304 | |
| Weight(kg) | 7.00 | |
| Pixel Density(Dots/㎡) | 160000 | |
| Drive IC | MBI5124 | |
| Flatness(mm) | ≤0.2 | |
| Optical Character | Brightness(cd) | White balance:max 3000cd/sqm |
| Color Temperature(K) | 9000 adjustable | |
| Horizontal (Deg) | 140 | |
| Vertical (Deg) | 100 | |
| Deviation from the center of the light-emitting point | <3% | |
| Brightness uniformity | ≥97% | |
| Color uniformity | ±0.003Cx,Cy | |
| Maximum contrast | 5000:1 | |
| Electrical Character | Max Power consumption(W/Cabinet) | 110 |
| Ave consumption(W/Cabinet) | 33 | |
| Input Voltage | AC110V/220V(50/60Hz) | |
| Physical Character | Scan | 1/32 scan |
| color correction | Saved at the Receiving card after adjusted | |
| Frame frequency (Hz) | 50~60 | |
| Fresh rate(Hz) | ≥1920 | |
| Environmental | Life Span(h) | 100000 hours |
| Operating tem(℃) | -40~+60 | |
| Storage tem(℃) | -10~+50 | |
| Working Humidity(RH) | 10%~80%(Non-condensing) | |
| Storage Humidity(RH) | 40%~60% | |
