P16 DIP Full Color LED Display Module 256*256mm Module Size High Efficiency
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | TOPLED |
| Certification: | CE, ROHS, FCC, ISO9001, ISO14001 |
| Model Number: | DIP P16 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case, flight case, honeycomb. |
| Delivery Time: | 15-20 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 SQM/Month |
|
Detail Information |
|||
| Brightness: | 7000-8000 | Module Size: | 256*256mm |
|---|---|---|---|
| Life Span: | 100000 Hours | Warranty: | 2 Years |
| Module Resolution: | 16*16 | Color: | RGB |
| Highlight: | led screen module,led panel module |
||
Product Description

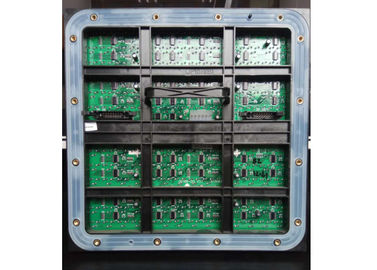

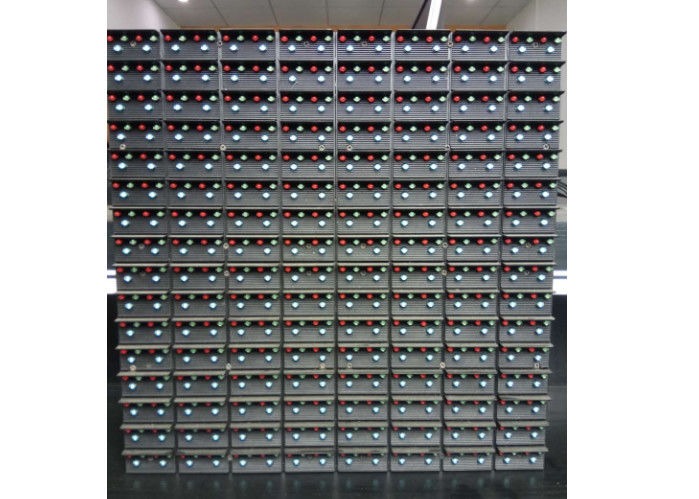

Outdoor 256mm*256mm Cree P16 DIP Full Color LED Display Module
Product Description
Characteristics
1. Gorgeous Picture: Non-reflective screen, which brings better viewing experience.
2. Perfect Image: Our products use special IC for LED which owns high refresh rate and achieves no shadows
3. Light Weight: The body uses aluminum profile stitching weighing 5-8kg, which is light and non- corrosive.
4. Elegant Appearance: We adopt CNC processing technique to produce standard module and cabinet which can easily do seamless assemble.
5. Standard Size: We use professional buckles and standard modular panels which can snap together easily.
6. Easy Setup: Back modules are made easier for connection.
7. Energy-saving: Low energy cost and high efficiency.
Parameters
| Name | Parameter |
| Pixels(mm) | 16mm |
| Physical Density | 3906 |
| LED Configuration | 1RGB |
| LED type | Epistar346 |
| Module Size | 256×256 |
| Module Power Consumption | 35W |
| Driving Mode | Constant Current IC |
| Scanning Method | Static |
| Horizontal Viewing Angle | 140 |
| Vertical Viewing Angle | 140 |
| Brightness | 7000-8000 |
| Grey Scale | 16bit |
| Refresh Rate | >3840 |
| Color | >16.7 |
| Input Voltage | AC 110V~220V +/-10% |
| Frame Frequency | 60 |
| Protection Level | IP65 |
| Working Temperature(℃) | -40° -+65° |
| Storage Humidity Range(RH) | 10%~90% |
| Life Span(H) | 100,000 hours |
