High Refresh Rate LED Display Module Low Power Consumption AC110V - 220V
Product Details:
| Place of Origin: | China (Mainland) |
| Brand Name: | TOPLED |
| Certification: | CE FCC ROHS |
| Model Number: | P6 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Fight case or Standard wooden box |
| Delivery Time: | 10-15 working days after got deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Name: | 192x192mm P6 Outdoor Waterproof SMD Full Color LED Display Module | Usage: | Outdoor |
|---|---|---|---|
| Color: | Full Color | Module Size: | 192x192mm |
| Module Resolution: | 32x32dots | Brightness: | 6500cd |
| IC: | ICN2045 | Scan: | 1/4 Scan |
| Highlight: | led panel module,waterproof led module |
||
Product Description

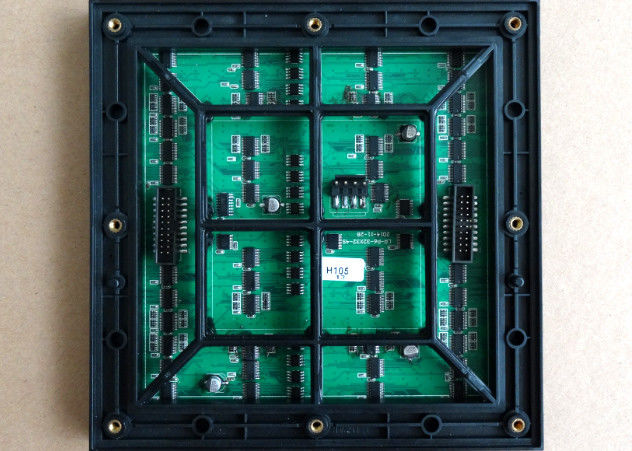

192x192mm P6 Outdoor Waterproof SMD Full Color LED Display Module
Specification:
| Pixel Pitch | 6mm |
| Pixel Density | 27777dots/sq.m |
| Color Configuration | 1R1G1B |
| LED Package | SMD2727 |
| Display | Full Color |
| Module Size | 192mm x 192mm |
| Module Resolution | 32dots x 32dots |
| Drive Duty | 1/4 Scan |
| Power | DC 5V, AC110V-220V |
| Brightness | ≥6500 cd/sqm |
| Refresh Rate | >1920HZ, adjustable by software |
| Power Input | AC110V/ 220V |
| Temperature | -40℃~+65℃ |
| MTBF | >10,000 Hours |
| Life Span | >100,000 Hours |
| Control Method | Synchronous, Asynchronous, 3G,WIFI,USB |
| Certificate | CE, RoHS,ISO9001 |
1. High refresh rate for better picture quality
It uses over 1500Hz refresh rate that produces great quality,flicker free pictures without scan lines.
Delicate pictures can be delivered with great accuracy.
2. High Gray Scale--Better Picture
Outdoor LED Screen is manufactured by using best quality material ,purchased from most reputed vendors .
The final products feature supreme quality and offers best outputs. HIgh refresh rate and gray scale
ensures the picture quality remains seamless
3. Silence Operation --Low Power Consumption
Outdoor LED Screen is known for its silence operation and low power consumption .It is also known for fast heat dissipation
which will save more energy .Cut on the electricity expenses and help environment with this highly advanced advertising display.
4. SMD led encapsulation confirm wide view distance and good uniformity.
Project images:
