Advertising Mobile Trailer LED Display P16 Pixels Constant Current Drive Type
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | TOPLED |
| Certification: | CE ROSH FCC |
| Model Number: | Outdoor P16 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases, honeycomb cases, flight cases for your option. |
| Delivery Time: | 5 Square meters /10 -15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Square Meters/month |
|
Detail Information |
|||
| Pixels: | P16 | Piexl Composition: | 1R+1G+1B |
|---|---|---|---|
| Module Dimension: | 256mmX256mm | Optimal Viewing Dist: | >16m |
| Max.Power Consump: | 900w/sqm | Piexl Density: | 3906Piexl/sqm. |
| Brightness: | >=6500cd/sqm | ||
| Highlight: | mobile truck led display,truck mounted led screen |
||
Product Description

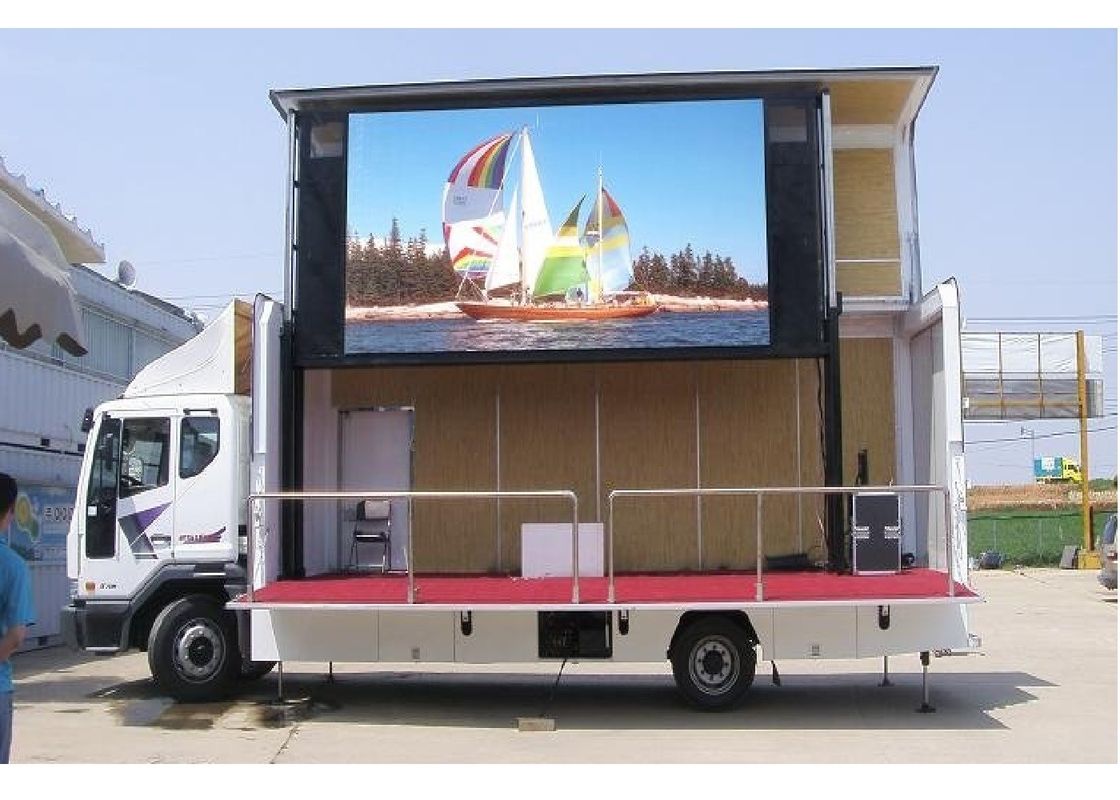

Outdoor mobile led display screen for food trucks advertising
Features
1. The front maintaining is easy to maintain and save time.
2. Ultra bright LED lamp, and the best raw materials to made into plastic parts.
3. Chip encapsulation uses golden pure wire to solder, red chip encapsulation uses double pure golden wires to keep stability.
4. The copper silvering trestle.
5. High-end specialized outdoor glue.
Parameter
| Parameter | Value |
| Brightness (calibrating value) | ≥9000nits |
| View Angle (min, 50% brightness) | H≥120° V≥50° |
| Viewing distance: | 15~200m |
| Brightness Control | 100 levels |
| Grey Scale | 4096 |
| Refresh Rate (PAL/NTSC) minimum | ≥400Hz |
| Frame Rate | ≥60Hz |
| Drive Type | Constant current drive |
| Scan Type | Static |
| Input Voltage | AC 220/110V±15% |
| Color Temperature | 6500 deg. k |
| Defects Rate | ≤0.00001 |
| MTBF | Greater than 10,000 hs |
| Life Span( 50% Brightness) | Greater than 100,000 hs |
| Module Brightness Uniformity | ≤4% |
| Ingress Protection | Front IP65 Rear IP43 |
| Neat degree: |
Each pixel to the next one ≤0.5mm; Interstice between every two Neighboring module <1mm |
| Earth Leakage Current | <1.5mA |
| Operating Temperature | -30°C ~ +60°C |
| Storage Temperature | -40°C ~ +85°C |
| Operating Humidity Range | operating 10~96% |
| Control Mode | Synchronized or in phrase |
| Communication distance: |
Cat.5 communication cable(without relay) not over 130m; Multi-mode optical fiber: 500m; Single-mode optical fiber: 10km-20km |
| Display Input Format (with Video Processor) | VGA, DVI, RGBHV, PbPr(HDTV), Composite, S-Video, TV |
| OS | WIN2000/XP/7 |
| Controller | Data sending card+ Data Receiving card+ Video card |
Attention
In order to offer you a suitable solution, Please state general info about your project.
1. Pixel pitch or view distance you need.
2. Dimension
3. Location of installation. ( eg, on poles, on wall of building, ect)
4. Purpose. ( what are you going to do with the LED Screen)
-------service
>Our engineer will be on your service. We can give you technology support at any time.
We will be tracking your orders, from the pre-sale to the after-sale and also serve you in this process.
--------price
Our price is based on the quantity, We have the basic price for one square meter. For each additional 5 square meter will have a discount when beyond 10 square meter. What is more, free power and fan will send to you. The cabinet will be free.
