Big Size Outdoor P6 Mobile Trailer LED Display 100 Levels Brightness Control
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | TOPLED |
| Certification: | CE ROSH FCC |
| Model Number: | Outdoor P6 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases, honeycomb cases, flight cases for your option. |
| Delivery Time: | 5 Square meters /10 -15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Square Meters/month |
|
Detail Information |
|||
| Pixels: | P6 | Piexl Composition: | 1R+1G+1B |
|---|---|---|---|

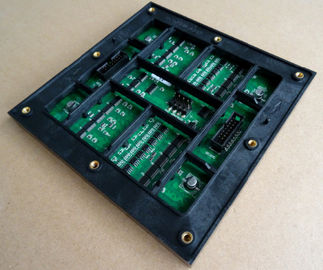

| Module Dimension: | 192x192mm | Optimal Viewing Dist: | >6m |
| LED Type: | SMD2727 | Brightness: | >=6500cd/sqm |
| Highlight: | truck mounted led screen,mobile advertising signs |
||
Product Description
China New HD P16 Mobile Advertising Billboard LED Video Display
P6 High Resolution LED Display
P6mm full color LED display is designed for high resolution video display for outdoor applications with high pixels 27777 dots /sq.m.
Function and Technology characters:
1. SMD 3-in-1 tech, the display provides with high resolution,low power consumption, large viewing angle and long lifespan.
2. Show all kinds of word,text,graph, pictures, flashes, video,2-dimension, 3-dimension cartoon and any other formats with your PC does synchronously.
3. Different signal resources input are acceptable, such as TV, HCTV, S-video, NTSC/PAL,DVI, AVI, VGA, SDI,MOV,MPG,etc.
4. It can be used in advertisement, stage, sports stadium, exhibition, TV-Show,mansion video wall, shopping mall, banks, schools, bus station, airport, gym, market, factories, monitoring centers,hospitals, bars etc.
Parameter
| Parameter | Value |
| Brightness (calibrating value) | ≥9000nits |
| View Angle (min, 50% brightness) | H≥120° V≥50° |
| Viewing distance: | 15~200m |
| Brightness Control | 100 levels |
| Grey Scale | 4096 |
| Refresh Rate (PAL/NTSC) minimum | ≥400Hz |
| Frame Rate | ≥60Hz |
| Drive Type | Constant current drive |
| Scan Type | Static |
| Input Voltage | AC 220/110V±15% |
| Color Temperature | 6500 deg. k |
| Defects Rate | ≤0.00001 |
| MTBF | Greater than 10,000 hs |
| Life Span( 50% Brightness) | Greater than 100,000 hs |
| Module Brightness Uniformity | ≤4% |
| Ingress Protection | Front IP65 Rear IP43 |
| Neat degree: |
Each pixel to the next one ≤0.5mm; Interstice between every two Neighboring module <1mm |
| Earth Leakage Current | <1.5mA |
| Operating Temperature | -30°C ~ +60°C |
| Storage Temperature | -40°C ~ +85°C |
| Operating Humidity Range | operating 10~96% |
| Control Mode | Synchronized or in phrase |
| Communication distance: |
Cat.5 communication cable(without relay) not over 130m; Multi-mode optical fiber: 500m; Single-mode optical fiber: 10km-20km |
| Display Input Format (with Video Processor) | VGA, DVI, RGBHV, PbPr(HDTV), Composite, S-Video, TV |
| OS | WIN2000/XP/7 |
| Controller | Data sending card+ Data Receiving card+ Video card |
Cabinet
Attention
Project images:
Why so many clients choose us?
-------service
>Our engineer will be on your service. We can give you technology support at any time.
We will be tracking your orders, from the pre-sale to the after-sale and also serve you in this process.
--------price
Our price is based on the quantity, We have the basic price for one square meter. For each additional 5 square meter will have a discount when beyond 10 square meter. What is more, free power and fan will send to you. The cabinet will be free.
--------Quality
Quality is our reputation, we have eight steps for our quality inspection, From material to the finished goods. Quality is what we pursuit.
