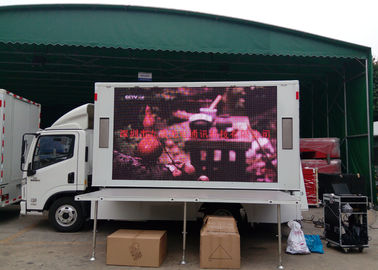

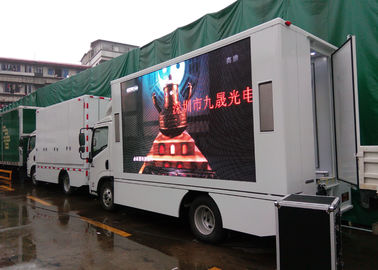

HD P16 Mobile Trailer LED Display Static Scan Design 15 - 200m Viewing Distance
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | TOPLED |
| Certification: | CE ROSH FCC |
| Model Number: | Outdoor P16 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases, honeycomb cases, flight cases for your option. |
| Delivery Time: | 5 Square meters /10 -15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 Square Meters/month |
|
Detail Information |
|||
| Pixels: | P16 | Piexl Composition: | 1R+1G+1B |
|---|---|---|---|
| Module Dimension: | 256mmX128mm | Optimal Viewing Dist: | >16m |
| Max.Power Consump: | 900w/sqm | Piexl Density: | 3906Piexl/sqm. |
| Brightness: | >=7000cd/sqm | ||
| Highlight: | truck mounted led screen,mobile advertising signs |
||
Product Description
China New HD P16 Mobile Advertising Billboard LED Video Display
Features
1. The front maintaining is easy to maintain and save time.
2. Ultra bright LED lamp, and the best raw materials to made into plastic parts.
3. Chip encapsulation uses golden pure wire to solder, red chip encapsulation uses double pure golden wires to keep stability.
4 The copper silvering trestle.
5. High-end specialized outdoor glue.
6. Brushing black lamp with five surface and black gluing to keep the uniformity of screen.
7. Plated signal and power connector.
8. Pure-copper environmental flat cable,pure-copper power wire.
Attention
In order to offer you a suitable solution, Please state general info about your project.
1. Pixel pitch or view distance you need.
2. Dimension
3. Location of installation. ( eg, on poles, on wall of building, ect)
4. Purpose. ( what are you going to do with the LED Screen)
P16 outdoor mobile advertising billboard specification
| Parameter | Value |
| Brightness (calibrating value) | ≥9000nits |
| View Angle (min, 50% brightness) | H≥120° V≥50° |
| Viewing distance: | 15~200m |
| Brightness Control | 100 levels |
| Grey Scale | 4096 |
| Refresh Rate (PAL/NTSC) minimum | ≥400Hz |
| Frame Rate | ≥60Hz |
| Drive Type | Constant current drive |
| Scan Type | Static |
| Input Voltage | AC 220/110V±15% |
| Color Temperature | 6500 deg. k |
| Defects Rate | ≤0.00001 |
| MTBF | Greater than 10,000 hs |
| Life Span( 50% Brightness) | Greater than 100,000 hs |
| Module Brightness Uniformity | ≤4% |
| Ingress Protection | Front IP65 Rear IP43 |
| Neat degree: |
Each pixel to the next one ≤0.5mm; Interstice between every two Neighboring module <1mm |
| Earth Leakage Current | <1.5mA |
| Operating Temperature | -30°C ~ +60°C |
| Storage Temperature | -40°C ~ +85°C |
| Operating Humidity Range | operating 10~96% |
| Control Mode | Synchronized or in phrase |
| Communication distance: |
Cat.5 communication cable(without relay) not over 130m; Multi-mode optical fiber: 500m; Single-mode optical fiber: 10km-20km |
| Display Input Format (with Video Processor) | VGA, DVI, RGBHV, PbPr(HDTV), Composite, S-Video, TV |
| OS | WIN2000/XP/7 |
| Controller | Data sending card+ Data Receiving card+ Video card |
