P6 Full Color Stadium Perimeter LED Display 1R1G1B SMD3535 Pixel Configuration
Product Details:
| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | Singheng |
| Certification: | CE RoHS UL Certifications |
| Model Number: | P6 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Met |
|---|---|
| Price: | USD+To be negotiated+square meter | 1 Square Meter/Square Meters (Min. Order) |
| Packaging Details: | Plywood case or Flight Case |
| Delivery Time: | About 16 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000+square meter+per month |
|
Detail Information |
|||
| Usage: | Outdoor | Tube Chip Color: | Full Color |
|---|---|---|---|
| Pixels: | 6mm | Screen Dimension: | Customized Size |
| Pixels Per Sqm: | 27777 | Cabinet Material: | Iron/aluminum |
| Best Viewing Distance: | >=6m | Input Voltage: | AC110/220V |
| Lifespan: | 100,000h | Working Temperature: | _40℃~+50℃ |
| Display Function: | Video, Animation, Advertising, Graphics | Application: | Live Events Led Display,Stadium And Sport |
| Product Name: | P6 Outdoor Sport Perimeter Led Billboards | ||
| Highlight: | led perimeter board,stadium led screens |
||
Product Description
P6 Full Color Football Stadium Fence LED Display Screen Outdoor Advertising
- Product description
1. The cabinet has good moisture and corrosion resistance and can be used in different climate regions around the world. It can be used in temperatures ranging from -30 °C to 60 °C, even in high humidity and high salinity air environments.
2. The new cabinet design meets the fence and stacking installation. It can be used in different applications for various occasions, can meet the needs of users with multiple applications.
3. A hemispherical soft protective cover and a soft mask are installed above and on the front of the screen to provide a good safety guarantee for the athletes and LED lights.
4. Waterproof grade is IP65 so that the display will continue to work for you in rainy weather.
- Technical parameter of P6 Outdoor Stadium
| OUTDOOR FULL-COLOR DISPLAY TECHNICAL PARAMETER | ||
| Item | P6 | P10 |
| Pixel Pitch | 6mm | 10 mm |
| Pixel Density | 27777dot/sqm | 10000dot/sqm |
| Pixel Configuration | 1R1G1B SMD3535 | 1R1G1B SMD3535 |
| Module Size | 192*192 mm | 320*160 mm |
| LED brand | Taiwai EPISTAR | Taiwai EPISTAR |
| Cabinet type | Closed | Closed |
| Module Resolution | 32*32 dot | 32*16 dot |
| Weight | 35KG/sqm | 30KG/sqm |
| Cabinet Material | SPCC or magnesium alloy | SPCC or magnesium alloy |
| Viewing Distance | ≥6 m | ≥10 m |
| Viewing Angle (Horizontal) | 140° | 140° |
| Viewing Angle (Vertical) | 120° | 120° |
| Refresh Rate | ＞1920Hz | ＞1920Hz |
| Grey Scale | 65536 | 65536 |
| Brightness | ≥6500cd/m2 | ≥6000cd/m2 |
| Max Power Consumption | 850 w/sqm | 600 w/sqm |
| Average Power Consumption | 370 w/sqm | 260 w/sqm |
| Drive Mode | 1/8 Scant | 1/4 Scan |
| Lifespan | ≥10,0000 h | ≥10,0000 h |
| Waterproof Grade | IP65 | IP65 |
| Input Voltage | AC105-235V 50-60HZ | AC105-235V 50-60HZ |
| Celsius | —40℃-40℃ | —40℃-40℃ |
| humidity | 10—85%RH | 10—85%RH |
- FAQ
Q1: To order a display, what information should l offer you?
A: You should provide width and height of the display, the main usage, the viewing distance, the scene photo and special requirements, then I can provide you a quotation. Sometimes you should also provide information such as geographical location, local climate.
Q2: How to install?
A: Free of charge to provide detailed steel structure drawings and installation guidance, wiring diagram and free remote debugging .We can also send our engineers to the site to guide the installation.
Q3: What about the warranty?
A: Three year warranty
Q4: What about the lead time?
A: Orders less than 50 square meters display, lead time is 16 days.

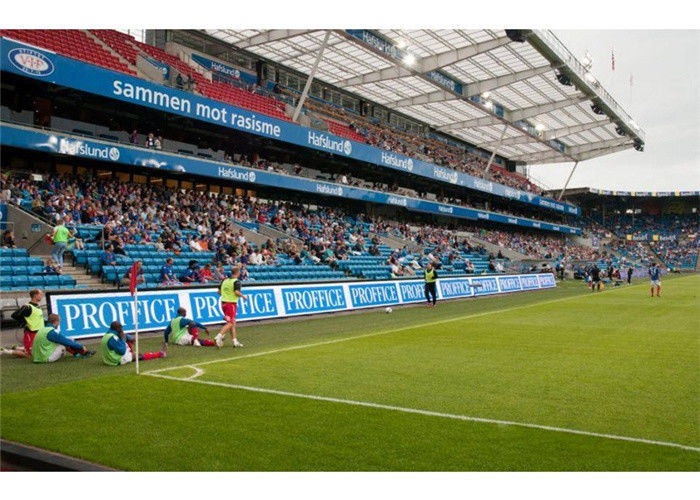

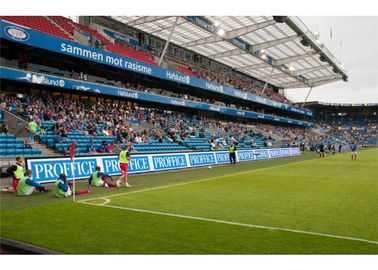

- Product Picture
