High Stability P10 Stadium Perimeter LED Display AC105 - 235V Input Voltage
Product Details:
| Place of Origin: | China (Mainland) |
| Brand Name: | Singheng |
| Certification: | CE RoHS UL Certifications |
| Model Number: | P10 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 square meter |
|---|---|
| Price: | USD+To be negotiated+square meter |
| Packaging Details: | Plywood case |
| Delivery Time: | About 16 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000+square meter+per month |
|
Detail Information |
|||
| Application: | Video | LED Chip: | Epistar |
|---|---|---|---|
| Pixel Pitch: | 10 Mm | Cabinet Type: | Closed |
| Cabinet Material: | SPCC Or Magnesium Alloy | Drive Mode: | 1/4 Scan |
| Lifespan: | ≥100,000 H | Waterproof Grade: | IP65 |
| Celsius: | -40℃~40℃ | Humidity: | 10~85%RH |
| Highlight: | led perimeter board,stadium led screens |
||
Product Description

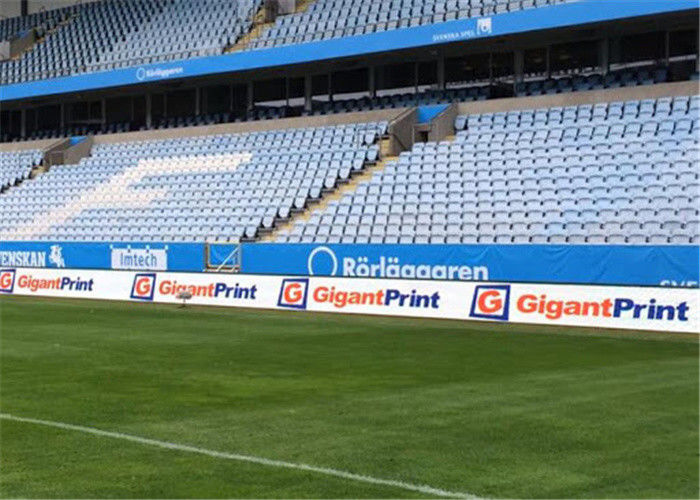

Soccer Stadium Advertising Board Led Perimeter Display P10 Led Perimeter Screen
- Product description
1. We have the most competitive prices based on all good material we use.Our quality is very repliable and we win very good reputation in the market.
2. A hemispherical soft protective cover and a soft mask are installed above and on the front of the screen to provide a good safety guarantee for the athletes and LED lights.
3. The new cabinet design meets the fence and stacking installation. It can be used in different applications for various occasions, can meet the needs of users with multiple applications.
4. Waterproof grade is IP65 so that the display will continue to work for you in rainy weather.
5. The integrated design provides a comprehensive solution for Led perimeter display applications.
6. With the professional aviation plug as the connectors ensure the quality and safety.
7. With the high quality raw material, mature process and scale production,the quality is ensured.
8. Soccer stadium advertising board leader, very mature product. Initial creator for such panel, light-proof. Super slim, light weight, can meet the most demanding requirements.
- Technical parameter of P10 Led Perimeter Screen
| Item | P10 |
| Pixel Pitch | 10 mm |
| Pixel Density | 10000dots/sqm |
| Pixel Configuration | 1R1G1B SMD3535 |
| Module Size | 320*160 mm |
| LED brand | Taiwai EPISTAR |
| Cabinet type | Closed |
| Module Resolution | 32*16 dots |
| Weight | 30KG/sqm |
| Cabinet Material | SPCC or magnesium alloy |
| Viewing Distance | ≥10 m |
| Viewing Angle (Horizontal) | 140° |
| Viewing Angle (Vertical) | 120° |
| Refresh Rate | ＞1920Hz |
| Grey Scale | 65536 |
| Brightness | ≥6000cd/sqm |
| Max Power Consumption | 600 w/sqm |
| Average Power Consumption | 260 w/sqm |
| Drive Mode | 1/4 Scan |
| Lifespan | ≥10,0000 h |
| Waterproof Grade | IP65 |
| Input Voltage | AC105-235V 50-60HZ |
| Celsius | -40℃~40℃ |
| Humidity | 10~85%RH |
- FAQ
Q1: LED display models are generally expressed in PX, such as P2 P3 P4....P8 P10.What does this mean?
A: P2 P3 P4.....P8 P10 means the pixel pitch is 2mm 3mm 4mm....8mm 10mm,which determines the number of pixels per unit area of a display. So it represents the clarity of the display. The smaller the pitch, the higher the clarity. Usually, the models of indoor full color display are P1.875,P2.5,P3,P4,P5. Outdoor full color display are P4,P5,P6,P8,P10.
Q2: What pixel pitch should I choose on my display?
A: Using the PX screen, it is determined mainly by the viewing distance, the size of the screen, the desired effect and the customer budget. It is generally believed that P5 is suitable for watching outside 5 meters. P10 is suitable for watching outside 10 meters. Of course, this data is not very accurate, and the customer can just refer to it. It also depends on the size of the screen, generally it is considered that more than 100 thousand pixels for a full color display then have a standard effect.
Q3: To order a display, what information should l offer you?
A: You should provide width and height of the display, the main usage, the viewing distance, the scene photo and special requirements, then I can provide you a quotation. Sometimes you should also provide information such as geographical location, local climate.
Q4: How to install?
A: Free of charge to provide detailed steel structure drawings and installation guidance, wiring diagram and free remote debugging .We can also send our engineers to the site to guide the installation.
Q5: How about your quality?
A: The quality of our display is excellent. We use the materials of high quality suppliers, strictly control the production process. and pass the multiple quality inspection to ensure every product is qualified
