Outdoor LED Football Pitch Advertising Boards Excellent Color Consistency
Product Details:
| Place of Origin: | China (Mainland) |
| Brand Name: | Singheng |
| Certification: | CE RoHS UL FCC |
| Model Number: | P10 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 square meter |
|---|---|
| Price: | USD+To be negotiated+square meter |
| Packaging Details: | Plywood case |
| Delivery Time: | About 16 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000+square meter+per month |
|
Detail Information |
|||
| Application: | Video | Warranty: | 3 Years |
|---|---|---|---|
| LED Chip: | Epistar | Brightness: | 6500cd/sqm |
| Life Span: | 100000 Hours | HS Code: | 8528591090 |
| Usage: | Outdoor | Screen Dimension: | Customized Size |
| Material: | Iron Or Magnesium Alloy | Grey Scale: | 16.7M Colors |
| Highlight: | led perimeter board,sports perimeter led display |
||
Product Description

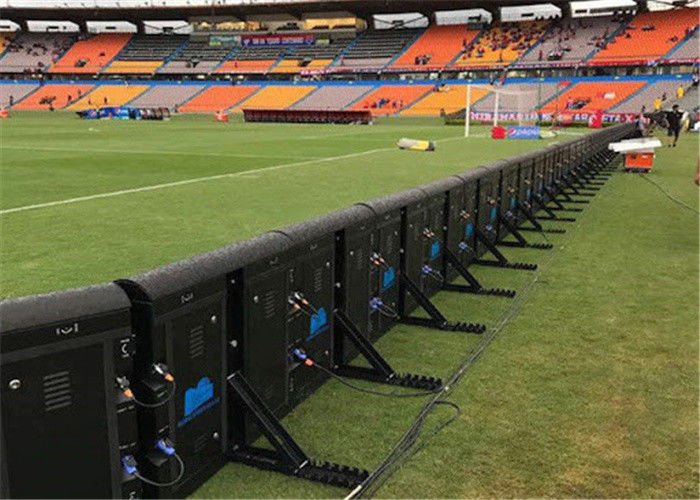

P10 Football Perimeter Screen Outdoor Display In Sports Stadium
- Product description
1. Support point correction function, ensure the consistency of the color and the brightness in the process of use.
2. Inner fixed reinforcement plate, tensile and shockproof, auto heat dissipation, make the operating life 10 years.
3. With the protection rating of IP65, face any bad weather.
4. The cabinet has good moisture and corrosion resistance and can be used in different climate regions around the world. It can be used in temperatures ranging from -30 °C to 60 °C, even in high humidity and high salinity air environments.
5. A hemispherical soft protective cover and a soft mask are installed above and on the front of the screen to provide a good safety guarantee for the athletes and LED lights.
6. The new cabinet design meets the fence and stacking installation. It can be used in different applications for various occasions, can meet the needs of users with multiple applications.
- Technical parameter of P10 Football Perimeter Screen
| Item | P10 |
| Pixel Pitch | 10 mm |
| Pixel Density | 10000dots/sqm |
| Pixel Configuration | 1R1G1B SMD3535 |
| Module Size | 320*160 mm |
| LED brand | Taiwai EPISTAR |
| Cabinet type | Closed |
| Module Resolution | 32*16 dots |
| Weight | 30KG/sqm |
| Cabinet Material | SPCC or magnesium alloy |
| Viewing Distance | ≥10 m |
| Viewing Angle (Horizontal) | 140° |
| Viewing Angle (Vertical) | 120° |
| Refresh Rate | ＞1920Hz |
| Grey Scale | 65536 |
| Brightness | ≥6000cd/sqm |
| Max Power Consumption | 600 w/sqm |
| Average Power Consumption | 260 w/sqm |
| Drive Mode | 1/4 Scan |
| Lifespan | ≥10,0000 h |
| Waterproof Grade | IP65 |
| Input Voltage | AC105-235V 50~60HZ |
| Celsius | -40℃~40℃ |
| Humidity | 10~85%RH |
- FAQ
Q1: LED display models are generally expressed in PX, such as P2 P3 P4....P8 P10.What does this mean?
A: P2 P3 P4.....P8 P10 means the pixel pitch is 2mm 3mm 4mm....8mm 10mm,which determines the number of pixels per unit area of a display. So it represents the clarity of the display. The smaller the pitch, the higher the clarity. Usually, the models of indoor full color display are P1.875,P2.5,P3,P4,P5. Outdoor full color display are P4,P5,P6,P8,P10.
Q3: To order a display, what information should l offer you?
A: You should provide width and height of the display, the main usage, the viewing distance, the scene photo and special requirements, then I can provide you a quotation. Sometimes you should also provide information such as geographical location, local climate.
Q4: How to install?
A: Free of charge to provide detailed steel structure drawings and installation guidance, wiring diagram and free remote debugging .We can also send our engineers to the site to guide the installation.
