IP65 Waterproof Sports Perimeter Led Display , P10 Led Perimeter Board Weather Proof
Product Details:
| Place of Origin: | China (Mainland) |
| Brand Name: | Singheng |
| Certification: | CE RoHS UL Certifications |
| Model Number: | P10 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 square meter |
|---|---|
| Price: | USD+To be negotiated+square meter |
| Packaging Details: | Plywood case |
| Delivery Time: | About 16 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000+square meter+per month |
|
Detail Information |
|||
| Application: | Video | LED Chip: | Epistar |
|---|---|---|---|
| Pixel Pitch: | 10 Mm | Pixel Density: | 10000 Dots/sqm |
| Brightness: | >6500cd/sqm | Max Power Consumption: | 600w/sqm |
| Average Power Consumption: | 260w/sqm | Celsius: | -40℃~40℃ |
| Highlight: | led perimeter board,stadium led screens |
||
Product Description

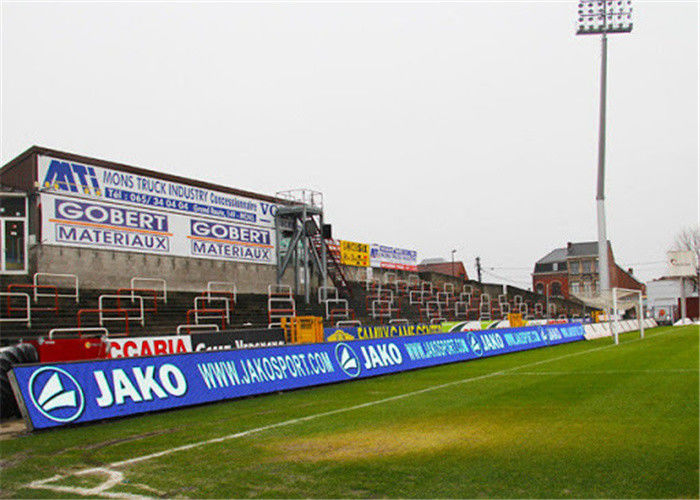

Football Stadium Banners P10 Led Perimeter Advertising Board Advertising Screen
- Product description
1. The sports perimeter Led display cabinet has good moisture and corrosion resistance and can be used in different climate regions around the world. It can be used in temperatures ranging from -30 °C to 60 °C, even in high humidity and high salinity air environments.
2. The football stadium banners cabinet adopts a triangular door and a unique tilt angle design. Our stadium screen can adjust the tilt angle (60°~90°) of the cabinet according to different requirements, so that all the audience can see the displaying content.
3. Waterproof grade is IP65 so that the display will continue to work for you in rainy weather.
4. The integrated design provides a comprehensive solution for stadium LED display applications.
5. Football stadium advertising boards module, excellent display effect,broadcast color gamut, intelligent adjustment for color temperature and brightness. Uniform color, high contrast, the picture is vivid and nature.
6. The brightness is high , can be over 6000 nits or higher , no problem at all even under direct sunlight .
- Technical parameter of P10 Led Perimeter Advertising Board
| Item | P10 |
| Pixel Pitch | 10 mm |
| Pixel Density | 10000dots/sqm |
| Pixel Configuration | 1R1G1B SMD3535 |
| Module Size | 320*160 mm |
| LED brand | Taiwai EPISTAR |
| Cabinet type | Closed |
| Module Resolution | 32*16 dots |
| Weight | 30KG/sqm |
| Cabinet Material | SPCC or magnesium alloy |
| Viewing Distance | ≥10 m |
| Viewing Angle (Horizontal) | 140° |
| Viewing Angle (Vertical) | 120° |
| Refresh Rate | ＞1920Hz |
| Grey Scale | 65536 |
| Brightness | ≥6000cd/sqm |
| Max Power Consumption | 600 w/sqm |
| Average Power Consumption | 260 w/sqm |
| Drive Mode | 1/4 Scan |
| Lifespan | ≥10,0000 h |
| Waterproof Grade | IP65 |
| Input Voltage | AC105~235V 50~60HZ |
| Celsius | -40℃~40℃ |
| Humidity | 10~85%RH |
- FAQ
Q1: LED display models are generally expressed in PX, such as P2 P3 P4....P8 P10.What does this mean?
A: P2 P3 P4.....P8 P10 means the pixel pitch is 2mm 3mm 4mm....8mm 10mm,which determines the number of pixels per unit area of a display. So it represents the clarity of the display. The smaller the pitch, the higher the clarity. Usually, the models of indoor full color display are P1.875,P2.5,P3,P4,P5. Outdoor full color display are P4,P5,P6,P8,P10.
Q2: How to install?
A: Free of charge to provide detailed steel structure drawings and installation guidance, wiring diagram and free remote debugging .We can also send our engineers to the site to guide the installation.
Q3: What about the warranty?
A: Three year warranty
