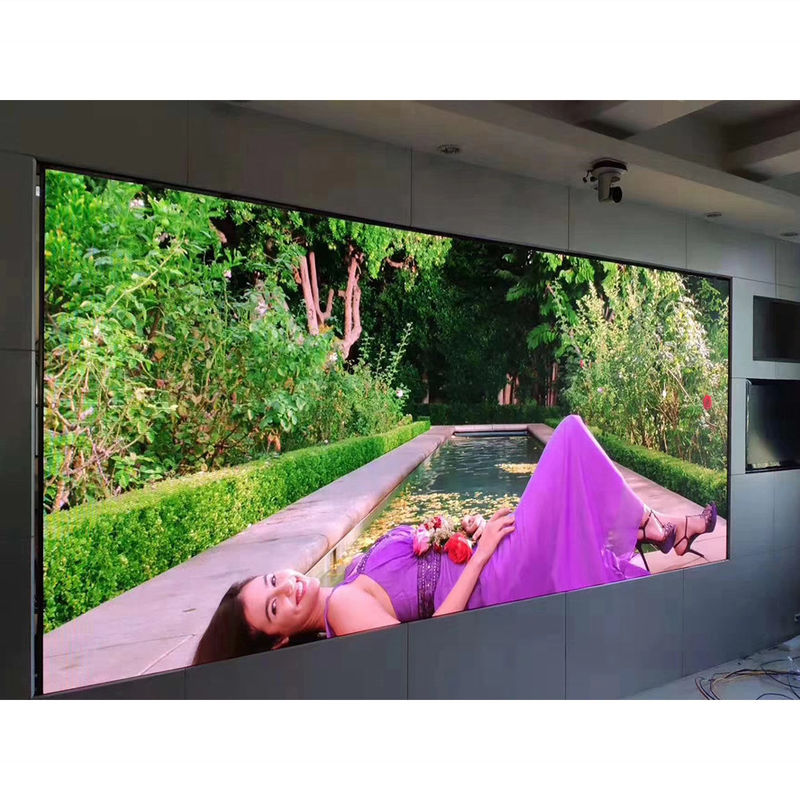

Rental Stage Background Led Screen Video Wall P3 111111dots/sqm Pixel Density
Product Details:
| Place of Origin: | China |
| Brand Name: | TOPLED |
| Certification: | CE ROSH FCC |
| Model Number: | P1.25-P10 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Woden case/Carton box/Flight case |
| Delivery Time: | 10-25 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 per month |
|
Detail Information |
|||
| Module Size(mm): | Customize | Module Resolution: | Customize Pixel |
|---|---|---|---|
| Grey Scale: | 14-16bit | Refresh Rate(HZ): | 1920/2880/3840HZ |
| Panel Resolution: | Customize | Panel Power Consumption(W): | 200-750W |
| Highlight: | led wall panels,led video wall display |
||
Product Description
Rental Stage Background 3mm Led Display P3 Indoor Led Screen Price
| Pixel Pitch | 3mm |
| Pixel Density | 111111dots/sqm |
| Color Configuration | 1R1G1B |
| LED Package | SMD2121 |
| Module Size | 192mm x 192mm |
| Module Resolution | 64dots x 64dots |
| Drive Mode | 1/32 Scan |
| Standard Cabinet Size | 576mm x 576mm |
| Cabinet Weight | 8KG |
| Drive IC | ICN2038s or MBI5124 |
| Brightness | ≥1200 cd/sqm |
| Viewing Distance | 3m-30m |
| Viewing Angle | H: 140°; V:140° |
| Refresh Rate | 3840HZ, adjustable by software |
| Frame Rate | 120frame/s |
| Grey Scale | 16.7M colors(Synchronized) |
| Color Temperature | R.G.B brightness 256 level adjustable |
| Power Input | AC110V/ 220V ±10%, 50HZ |
| Max Power Consumption | 1000W/sqm |
| Ave. Power Consumption | 300W/sqm |
| Storage Temperature | -30℃~+70℃ |
| Working Temperature | -20℃~+50℃ |
| Blind Spot Rate | <1/10000 |
| MTBF | >10,000 Hours |
| Life Span | >100,000 Hours |
| Waterproof Level | IP20 |
| Operating Humidity | 10%~90% RH |
| Control Method | Synchronous, Asynchronous, 3G,WIFI,USB |
| Control PC | With DVI Graphic card |
| Operating System | Win 98, Win2000, XP, Win7, Win8, Win10 |
| Video Signal Mode | RF, S-Video, RGB, RGBHV, YUV, YC etc |
| Certificate | CE, RoHS |
Lead Time:Delivery in 10-25 working days.
